Autel MaxiSys MS909 Advanced Automotive Diagnostic Scanner – Comprehensive Product Overview

The Autel MaxiSys MS909 is a high-end automotive diagnostic system designed for professional technicians, repair shops, and dealerships. Combining advanced diagnostics, ECU programming, and workshop management tools, this tablet-based scanner provides OE-level functionality for passenger vehicles, heavy-duty trucks, and supercars. Below is a detailed breakdown of its features, specifications, and capabilities.

• Full OBDII/EOBD Coverage:

  • Works with 80 US, European, and Asian vehicle brands, including luxury and high-performance models.

  • Supports CAN, EOBD, OBD, OBDII, and advanced protocols (CAN-FD, DoIP, J1939).

• OE-Level Functions:

  • Reads/clears trouble codes (DTCs) with detailed repair guidance.

  • Live Data Streaming with customizable graphs and freeze frame analysis.

  • Bi-Directional Controls for testing actuators, sensors, and modules (e.g., fuel pumps, electronic fans).

  • ECU Coding & Programming: Update firmware, replace modules, and customize vehicle settings (supports BMW and Mercedes).

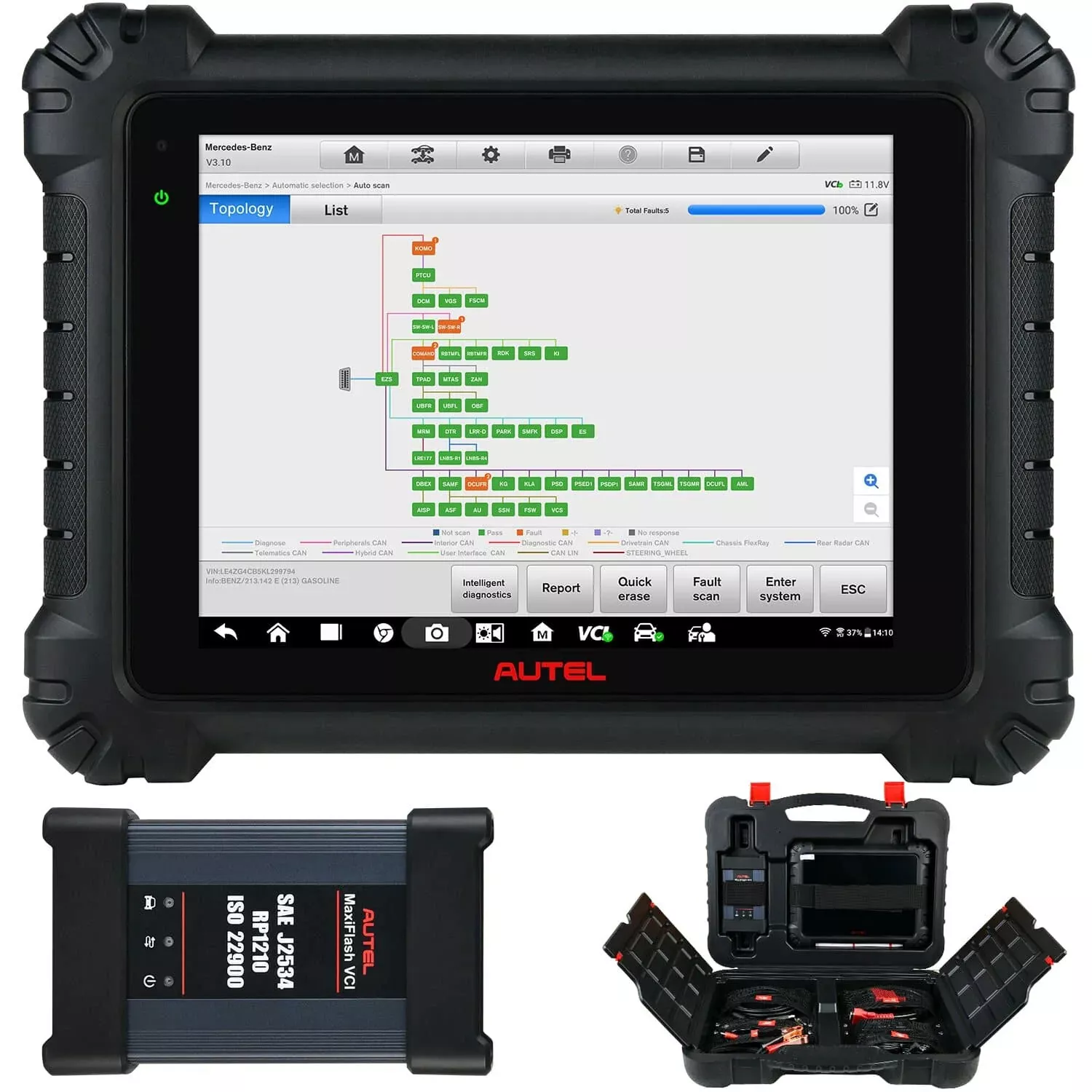

• System Topology Mapping:

  • Visualizes communication between vehicle modules (BMW, Ford, VW, etc.).

  • Color-coded status display for quick fault identification.

• Cloud-Based Data Management:

  • Stores customer records, repair history, and diagnostic reports.

  • Shares reports via QR code, email, or text message.

• Technical Service Bulletins (TSBs):

  • Access manufacturer-recommended repairs and updates.

• Oil Reset: Resets oil life monitoring systems.

• EPB Service: Replaces brake pads on vehicles with electric parking brakes.

• SAS Calibration: Adjusts steering angle sensors after alignment.

• DPF Regeneration: Cleans diesel particulate filters.

• TPMS Programming: Activates and programs tire pressure sensors.

• Airbag Reset: Clears crash data after airbag deployment.

• BMS Reset: Registers new batteries.

• 10-inch Touchscreen:

  • High-resolution 2048 x 1536 display for crisp visuals.

  • Android 7.0 operating system with intuitive menus.

• Dual Cameras:

  • 16MP rear camera (VIN scanning, documentation).

  • 5MP front camera (workshop use).

• Long Battery Life:

  • 15,000mAh battery provides 8 hours of continuous use.

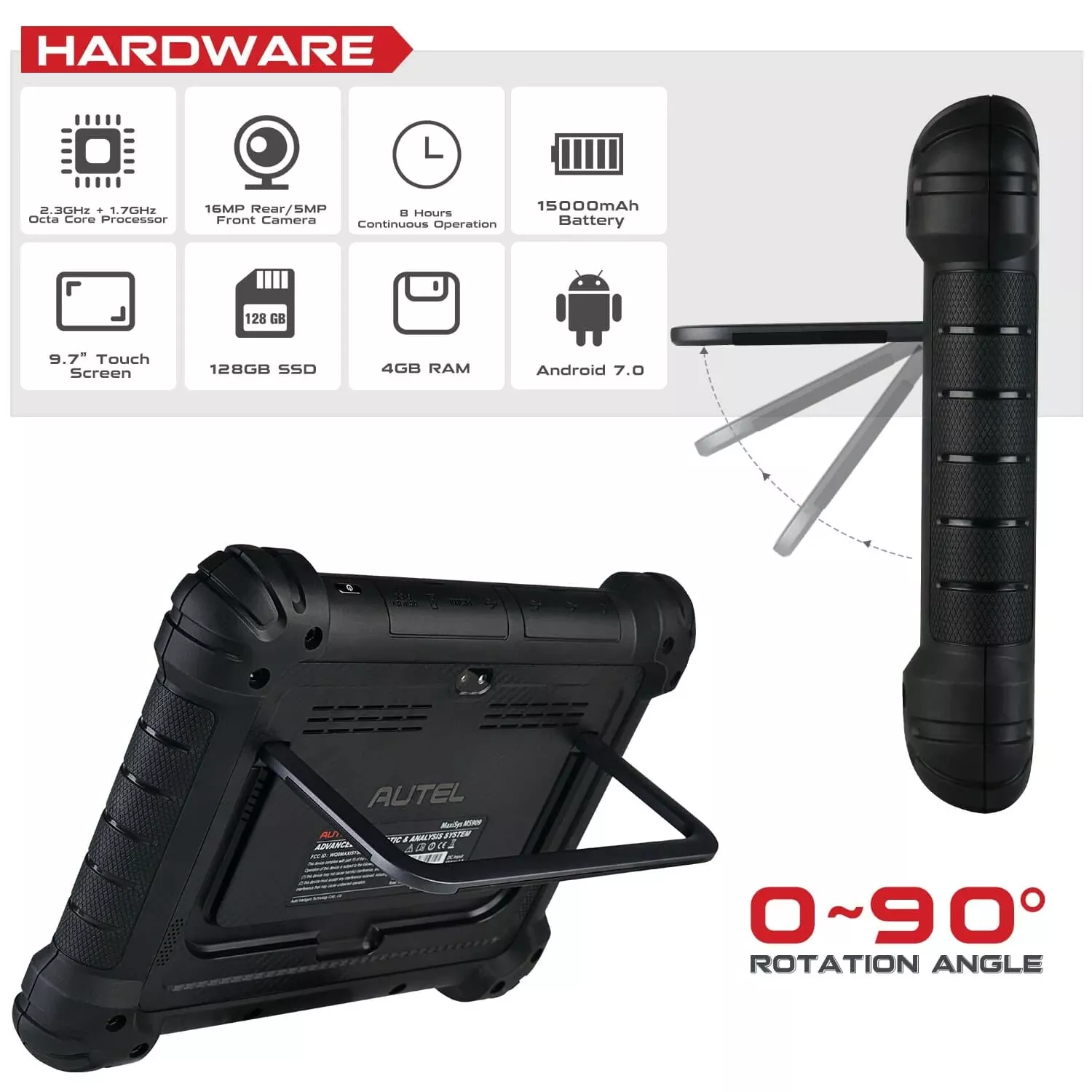

• Processor:

  • Samsung Exynos 8895V Octa-Core (2.3GHz Quad-core 1.7GHz Quad-core).

  • Qualcomm 660 Octa-Core (2.2GHz Quad-core 1.8GHz Quad-core).

• Memory:

  • 4GB RAM  128GB Internal Storage (expandable via microSD up to 256GB).

• Display:

  • 9.7-inch TFT-LCD capacitive touchscreen (1536 x 2048 resolution).

• Wireless:

  • Dual-band Wi-Fi (802.11 a/b/g/n/ac).

  • Bluetooth 5.0.

• Ports:

  • USB 2.0 (2x Type-A, 1x Mini USB).

  • HDMI 2.0 (external display support).

  • SD card slot.

• Battery:

  • 15,000mAh lithium-polymer (8 hours runtime).

  • Charges via 12V/3A adapter (included).

• Operating Temperature: 0°C to 50°C (32°F to 122°F).

• Dimensions: 304.4 x 227.8 x 42.5 mm (11.98 x 8.97 x 1.67 inches).

• Weight: 1.66 kg (3.66 lbs).

• Standard Protocols: CAN, ISO-15765, ISO-14230 (KWP2000), SAE-J1939 (heavy-duty).

• Advanced Protocols: CAN-FD, DoIP (Diagnostics over IP), D-PDU, J2497.

• Manufacturer-Specific: BMW DS2, Ford UBP, GM Class 2, VAG KW81/KW82.

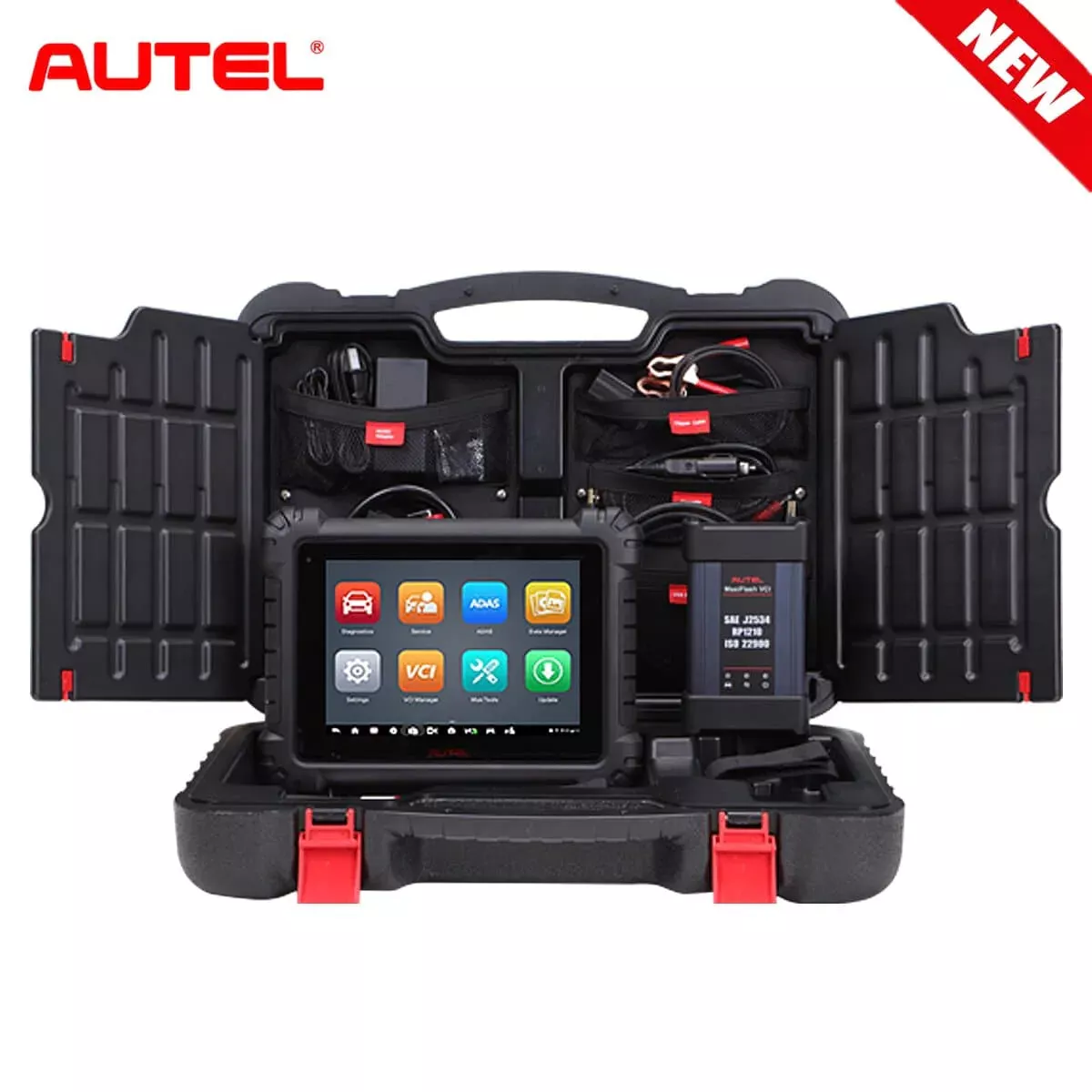

The MS909 Full Kit includes all tools required for professional diagnostics:

1. Main Unit: Autel MS909 diagnostic tablet.

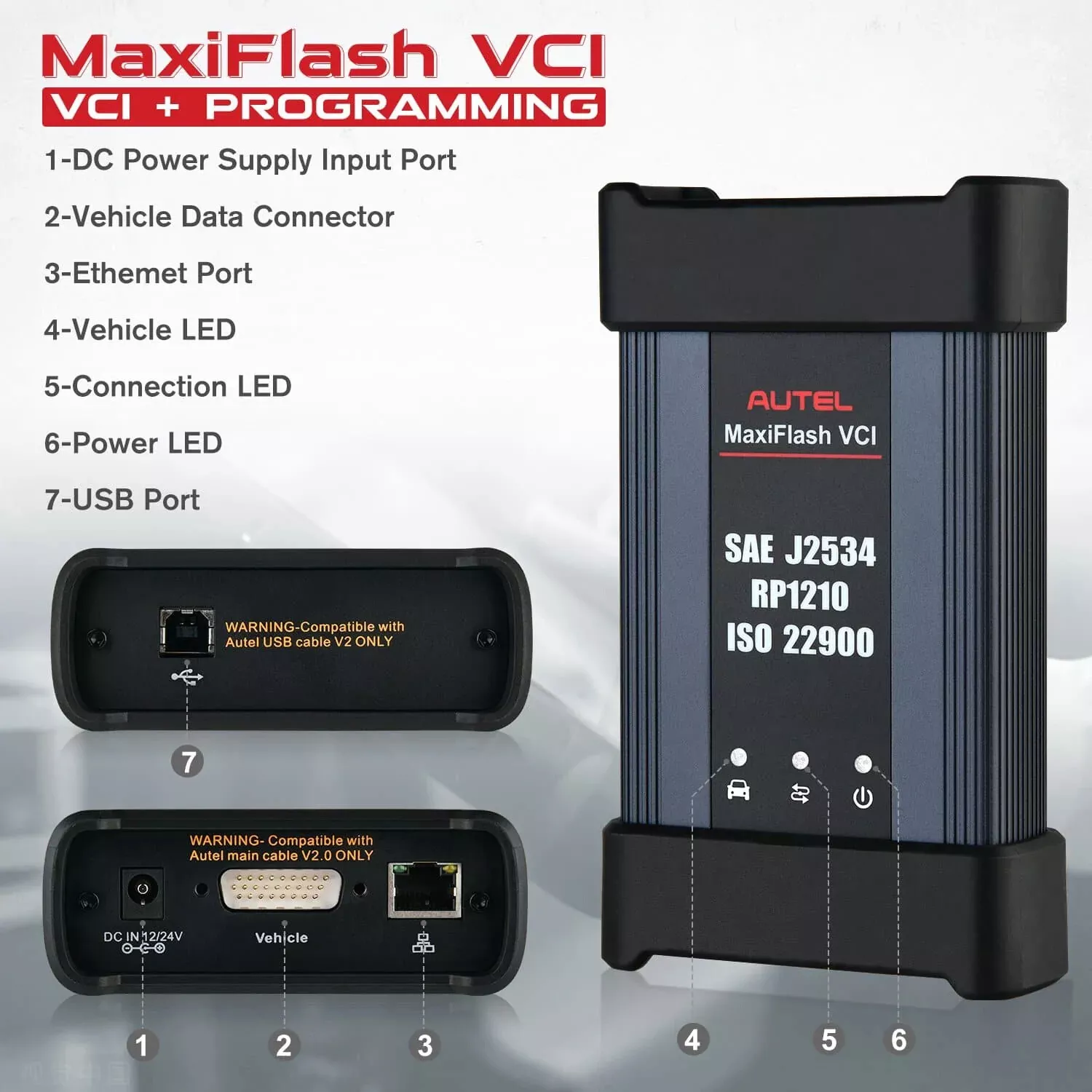

2. MaxiFlash VCI: Vehicle Communication Interface for advanced programming.

3. Cables & Adapters:

   • Main OBDII cable.

   • USB 2.0 cable.

   • 12V power adapter.

   • Cigarette lighter power cable.

4. Fuses & Clips:

   • 2x light fuses (6x30mm).

   • Clipper cable for electrical testing.

5. Documentation:

   • Quick reference guide.

   • Packing list.

6. Storage & Protection:

   • Carrying case (504 x 133 x 360 mm).

   • Soft cloth for screen cleaning.

• Automatic Updates:

  • Real-time notifications for software and database updates.

  • Includes new vehicle coverage and feature enhancements.

• Interactive Support:

  • Direct contact with Autel technical team for troubleshooting.

• 3-Year Warranty: Covers hardware defects.

• 1 Year of Free Software Updates: Extendable via subscription.

• Multi-Language Support: English, Spanish, and more.

1. Professional Workshops:

   • Full-system diagnostics for engines, transmissions, ABS, and airbags.

   • ECU programming for BMW/Mercedes.

2. Fleet Maintenance:

   • Manage commercial trucks and passenger vehicles.

3. Electrical Diagnostics:

   • Test sensors, wiring, and modules with live data.

4. Dealerships:

   • Access OE-level coding and TSBs.

• All-in-One Solution: Replaces multiple tools (scanner, code reader, ECU programmer).

• Future-Proof: Regular updates for new vehicle models and protocols.

• Workshop Efficiency: Cloud-based data management and repair tracking.

• Professional Accuracy: Matches dealership tool capabilities at a competitive price.
