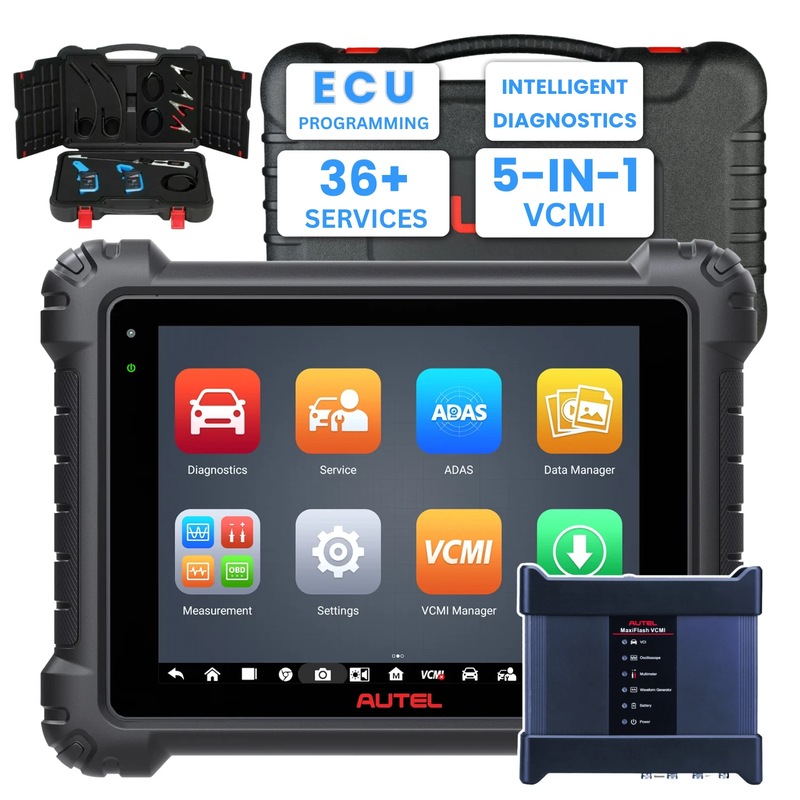

AUTEL MAXISYS MS919 ADVANCED DIAGNOSTIC & MEASUREMENT SYSTEM SCAN TOOL

Autel MaxiSYS MS919 Advanced Automotive Diagnostic Scanner

The Autel MaxiSYS MS919 is a premium, all-in-one automotive diagnostic and measurement tool designed for professional technicians, repair shops, and commercial fleet managers. Combining advanced diagnostics, ECU programming, and integrated measurement tools, this system provides comprehensive support for passenger vehicles, heavy-duty trucks, and supercars. Below is a detailed breakdown of its features, specifications, and capabilities.

• Full OBDII/EOBD Coverage:

  • Supports CAN, EOBD, OBD, OBDII protocols for all 1996 vehicles.

  • Works with 80 US, European, and Asian manufacturers, including luxury and supercar brands.

• OE-Level Functionality:

  • Reads/clears trouble codes (DTCs) with detailed repair suggestions.

  • Views live data streams with customizable graphs and freeze frame data.

  • Performs bi-directional controls (active tests for actuators, sensors, and modules).

  • ECU Coding & Programming: Online/offline coding, module replacement, and parameter adjustments.

• Automatic Updates:

  • Real-time software updates via Wi-Fi with push notifications.

  • Regular database expansions for new vehicle models and systems.

• 4-Channel Oscilloscope (20MHz Bandwidth):

  • High-speed sampling (80MS/s) for capturing complex electrical signals.

  • 32MB memory buffer for waveform storage and replay.

  • Pre-loaded waveform library and guided tests for common components.

• Signal Generator:

  • Simulates sensor signals (PWM, frequency, voltage) to test ECUs, wiring, and actuators.

  • Tests components like fuel injectors, solenoids, and electronic fans.

• Digital Multimeter:

  • Measures voltage, current, resistance, frequency, duty cycle, and continuity.

  • Tests diodes and pulse width for electrical diagnostics.

• CAN Bus Analyzer:

  • Checks OBD port functionality and CAN network integrity.

• Cloud-Based Data Manager:

  • Stores customer records, vehicle history, diagnostic reports, and technician notes.

  • Shares reports via QR code, email, or text message.

• Interactive Data Logging:

  • Connects directly to Autel support for real-time troubleshooting.

  • Submits diagnostic sessions for expert analysis.

• Repair Assistance Tools:

  • System Topology Mapping: Visualizes communication between vehicle modules (BMW, Ford, VW, etc.).

  • Technical Service Bulletins (TSBs): Access manufacturer-issued repair solutions.

  • Relevant Case Database: Provides real-world repair examples for common issues.

• Android-Based Interface:

  • Runs on Android 7.0 or 10.0 (varies by model).

  • Intuitive menu layout with customizable shortcuts.

• Workshop Management:

  • Organizes customer data, repair history, and service schedules.

  • Generates pre-scan and post-scan reports for insurance or customer records.

• Processor:

  • Samsung Exynos 8895V Octa-Core (2.3GHz Quad-core 1.7GHz Quad-core)

  • Qualcomm 660 Octa-Core (2.2GHz Quad-core 1.8GHz Quad-core)

• Memory:

  • 4GB RAM  128GB Internal Storage (expandable via microSD up to 256GB).

• Display:

  • 9.7-inch TFT-LCD capacitive touchscreen.

  • 2048 x 1536 resolution (retina-quality clarity).

• Connectivity:

  • Dual-band Wi-Fi (802.11 a/b/g/n/ac).

  • Bluetooth 5.0  GPS.

  • USB 2.0 (2x Type-A ports, 1x Mini USB).

  • HDMI 2.0 for external displays.

  • SD Card Slot (supports up to 256GB).

• Rear Camera: 16MP with autofocus and LED flash (for VIN scanning and documentation).

• Front Camera: 16MP (workshop documentation).

• Ambient Light Sensor: Adjusts screen brightness automatically.

• G-Sensor: Detects device orientation.

• Battery:

  • 15,000mAh lithium-polymer (8 hours of continuous use).

  • Charges via 12V/3A adapter (included).

• Operating Temperature: 0°C to 50°C (32°F to 122°F).

• Storage Temperature: -20°C to 60°C (-4°F to 140°F).

• Dimensions: 304.4 x 227.8 x 42.5 mm (11.98 x 8.97 x 1.67 inches).

• Weight: 1.66 kg (3.66 lbs).

• OBD Protocols: ISO-15765, ISO-14229 UDS, SAE-J1939 (heavy-duty), ISO-9141, KWP2000.

• Advanced Protocols: CAN-FD, DoIP (Diagnostics over Internet Protocol), D-PDU, RP1210.

• Manufacturer-Specific Protocols: BMW DS2, Ford UBP, GM Class 2, VAG KW81/KW82.

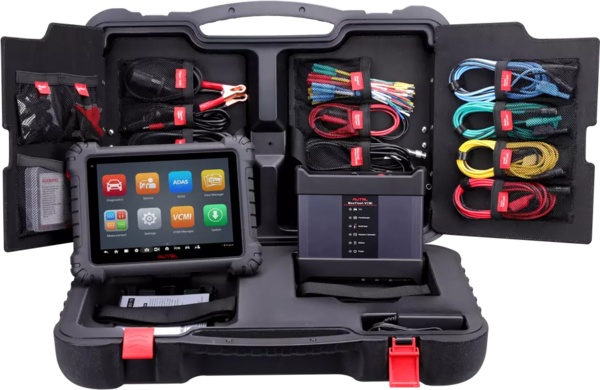

The MS919 Full Kit includes all tools required for professional diagnostics:

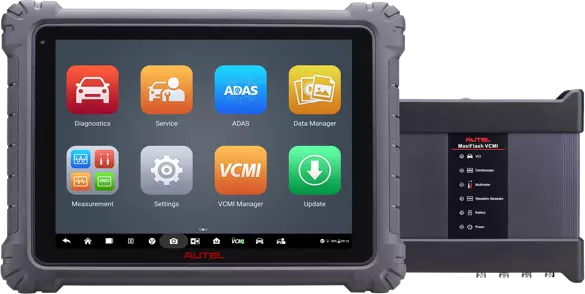

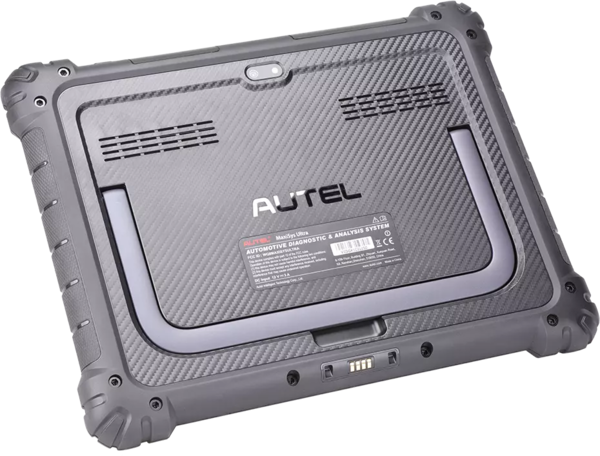

• Autel MS919 diagnostic tablet.

• MaxiFlash VCMI (Vehicle Communication Interface).

• Main Cable V2.0 (OBDII to tablet connection).

• 4x oscilloscope test leads.

• 2x multimeter probes.

• 2x secondary ignition pickups.

• 2x 20:1 attenuators (for high-voltage testing).

• 4x6 breakout leads (for ECU pin access).

• Back-pinning probes (5 sizes) 20 replacement needles.

• Flexible probes for wiring harness checks.

• Crocodile clips and dolphin clips (for secure connections).

• 12V AC/DC adapter cigarette lighter power cable.

• Durable carrying case tool organizer box.

• Quick reference guide packing list.

• 3-Year Manufacturer Warranty: Covers hardware defects.

• 1 Year of Free Software Updates: Includes new vehicle coverage and feature enhancements.

• Multi-Language Support: English, Spanish, and more.

1. Professional Mechanics:

   • Advanced diagnostics for engines, transmissions, ABS, and airbags.

   • ECU coding for module replacements or performance tuning.

2. Dealerships:

   • OEM-level programming and coding.

   • Access to Technical Service Bulletins (TSBs).

3. Fleet Managers:

   • Maintain heavy-duty trucks and commercial vehicles.

   • Track repair history via cloud storage.

4. Electrical Specialists:

   • Oscilloscope and multimeter tools for wiring/ECU diagnostics.

   • Signal simulation for component testing.

• All-in-One Solution: Replaces multiple tools (scanner, oscilloscope, multimeter).

• Future-Proof Design: Regular updates for new vehicles and protocols.

• Workshop Efficiency: Cloud-based data management and repair assistance.

• Professional Accuracy: Matches OEM scan tool capabilities at a fraction of the cost.
