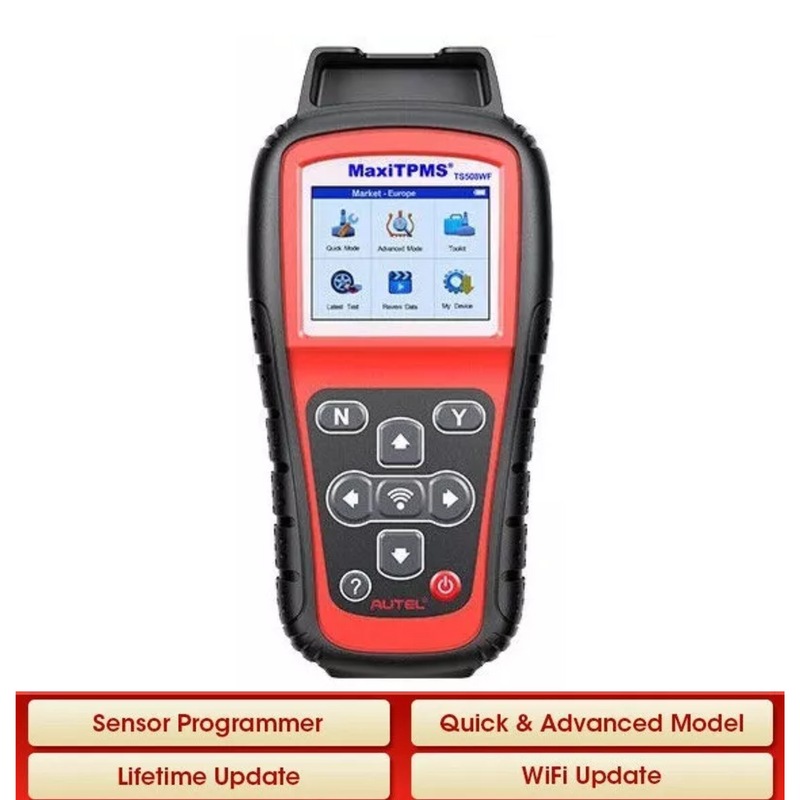

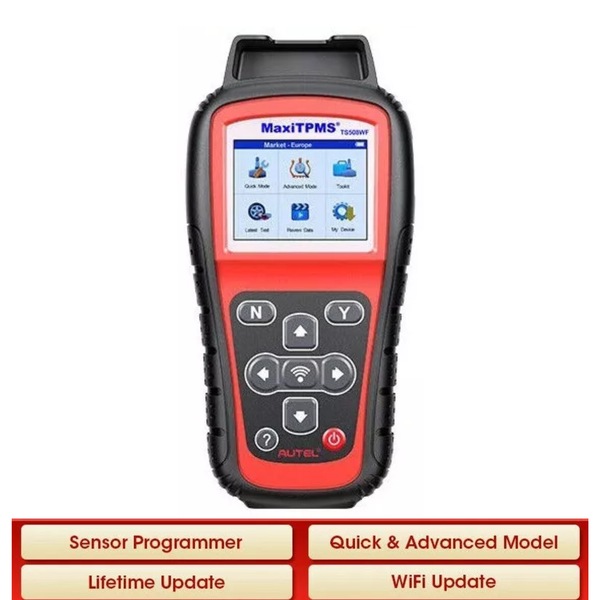

Autel MaxiTPMS TS508WF – TPMS Diagnostic & Service Tool
The MaxiTPMS TS508WF is a next-generation TPMS tool designed to activate all TPMS sensors, read sensor status, diagnose TPMS system health, program MX-sensors, and perform TPMS relearn. It offers Quick and Advanced Modes for efficient repairs and Wi-Fi updates for convenience.
Comparison with Similar Products
- TS501: TS508WF adds Quick/Advanced Modes and Tire Type/Pressure Selection for faster, smarter TPMS services.
- TS508: TS508WF includes Wi-Fi for one-click software updates.
- TS408 & TS401: TS508WF adds TPMS diagnostics (read/clear DTCs), OBD2 connector for “Copy by OBD” programming, and “OBD Relearn” capabilities.
Languages
English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian

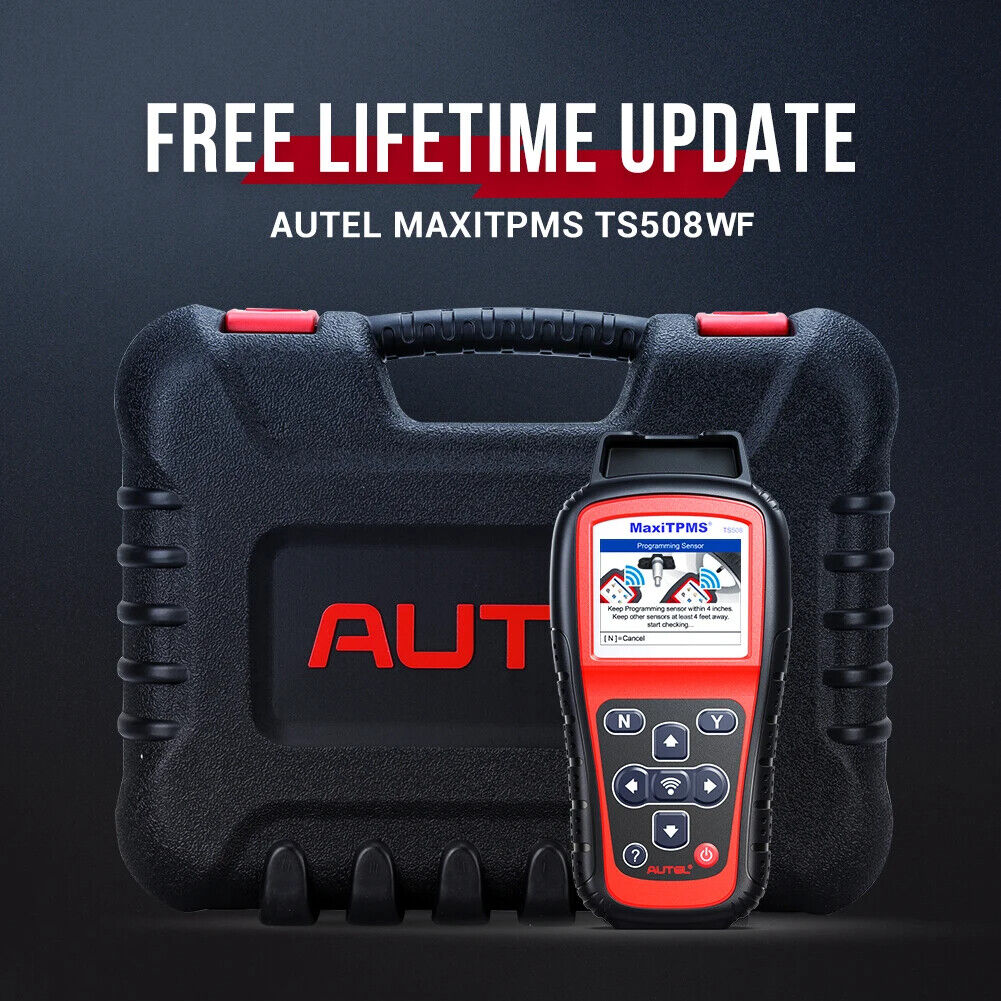

Update Methods
Supports Wi-Fi and USB updates, eliminating the need for a computer, providing a faster and more convenient experience in a Wi-Fi environment.
Key Features
- Active Sensors: Activates all magnetic, frequency, and tire deflation-triggered sensors using 125KHz signals.

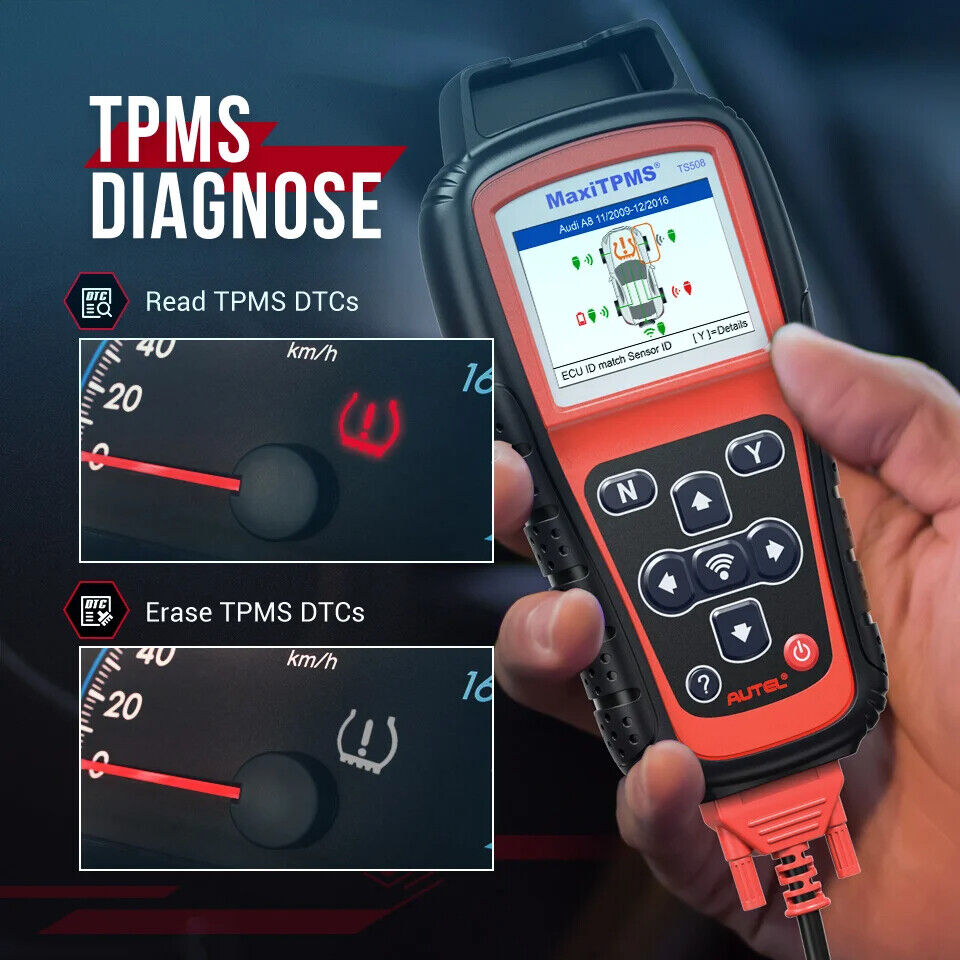

- TPMS Diagnosis: Reads/clears TPMS DTCs and resets Malfunction Indicator Light.

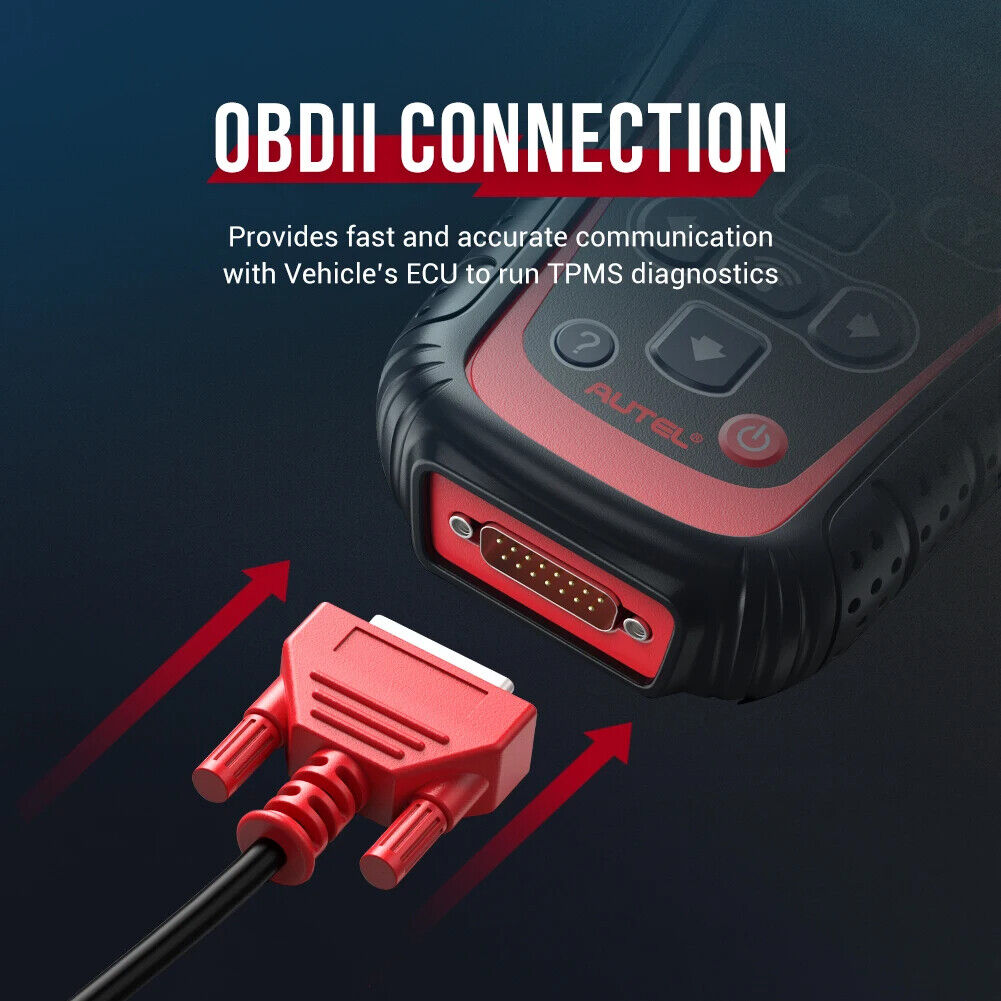

- OBDII Connection: Enables fast, accurate ECU communication for TPMS diagnostics.
- Key Fob Testing: Tests key fob signal strength for reliable performance checks.
- TPMS Status Screen:
- Reads ECU sensor ID.
- Checks sensor ID and ECU ID matching.
- Reads/clears DTCs from ECU.
- Displays detailed DTC descriptions.
Additional Features
- Vehicle-specific database (Domestic, Asian, European).
- Reads TPMS sensor data (pressure, temperature, battery, OEM part number, relearn info).
- Reads/writes sensor IDs to vehicle ECU.
- Color-coded ID matching and low battery indicators.

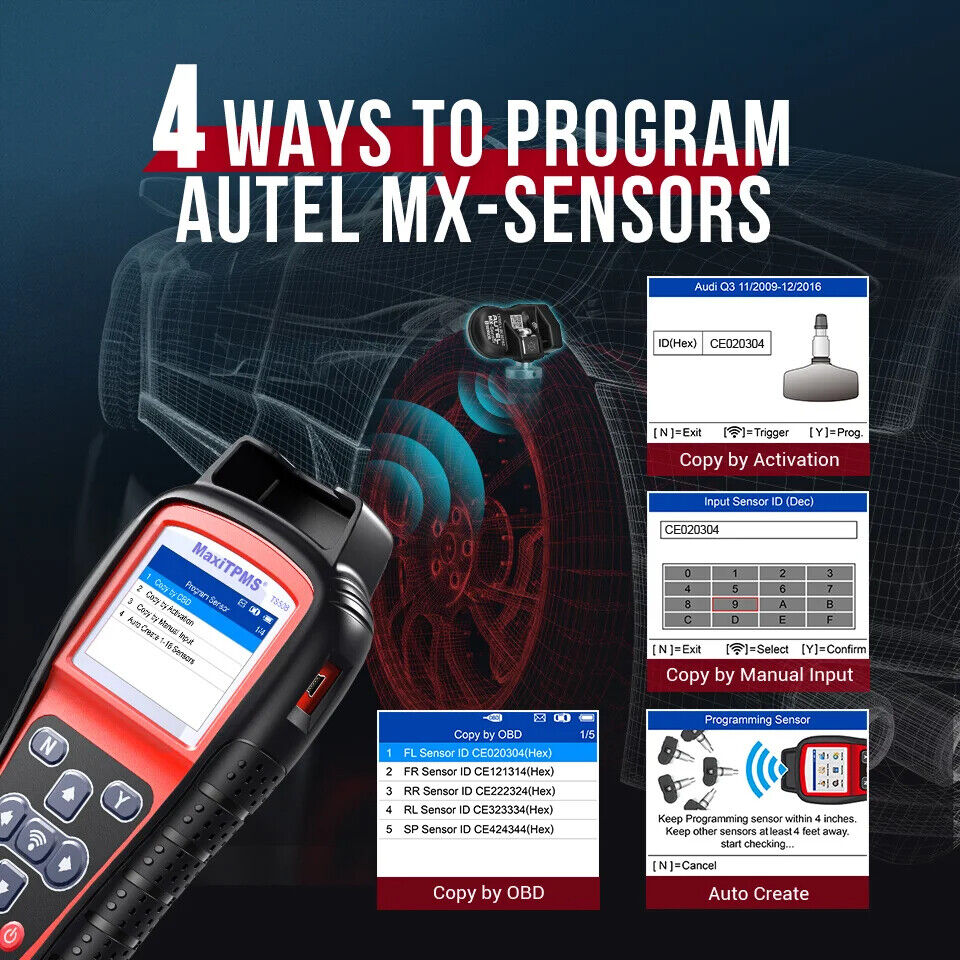

- Programs Autel MX-Sensors (315MHz/433MHz).
- Batch programs up to 16 sensors at once.
- Displays relearn procedures for OEM sensors.
- Auto-selects frequency for fast scanning.
- Shows OBD locations and OEM sensor info by vehicle make/model/year.
- Provides visual/audible feedback for sensor functionality.
- Built-in 3.7V Li-Polymer battery with auto power-off.
- Ergonomic design with strong housing and rubber boot.
- 8.0" LED capacitive touchscreen (1024x766 resolution).
