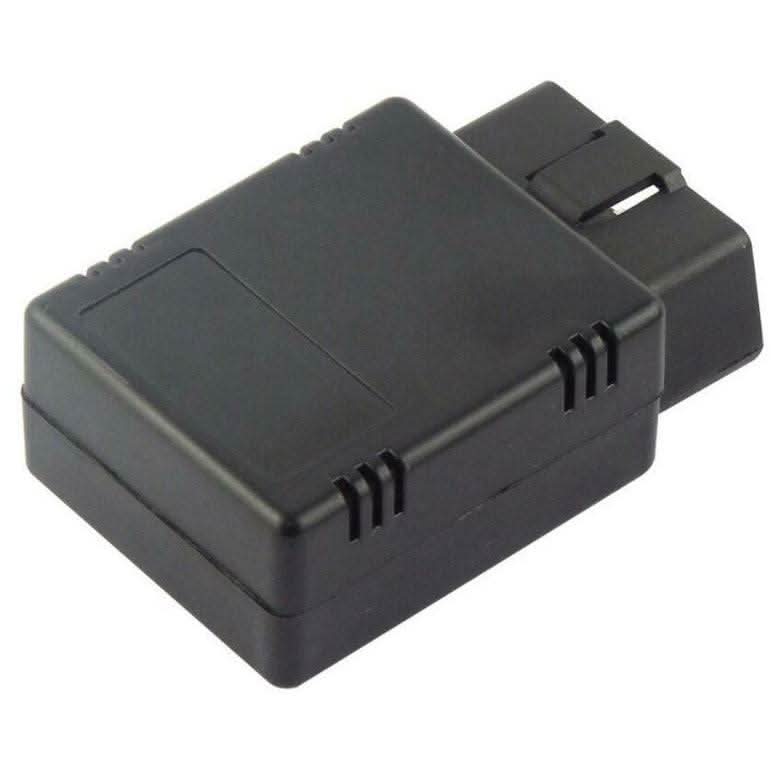

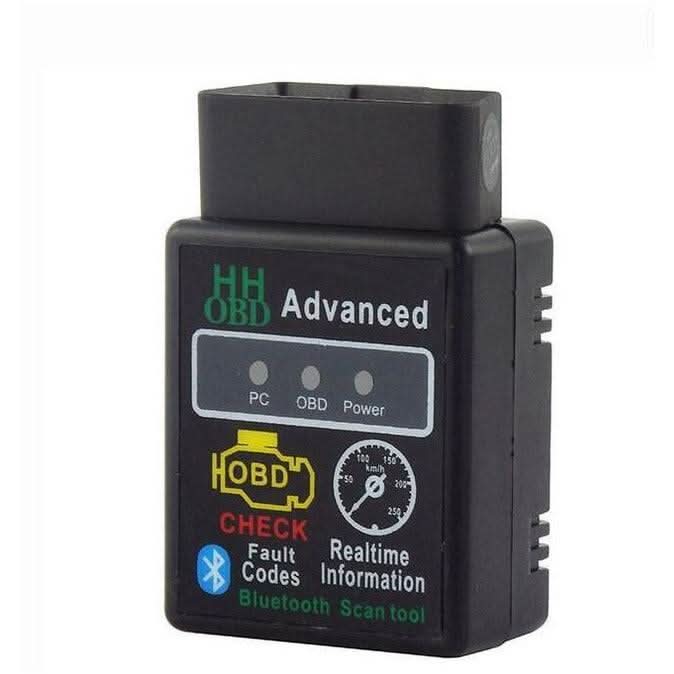

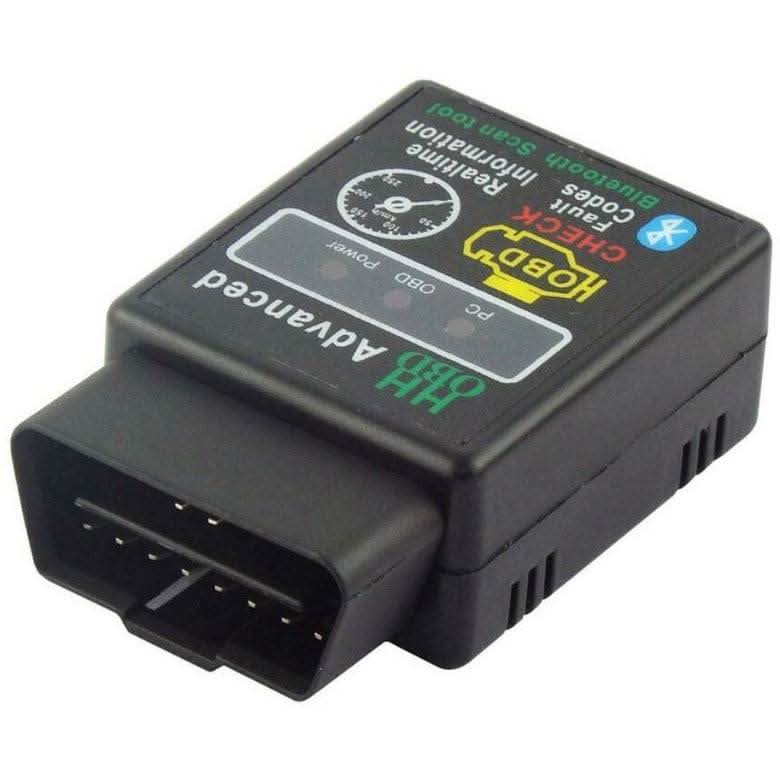

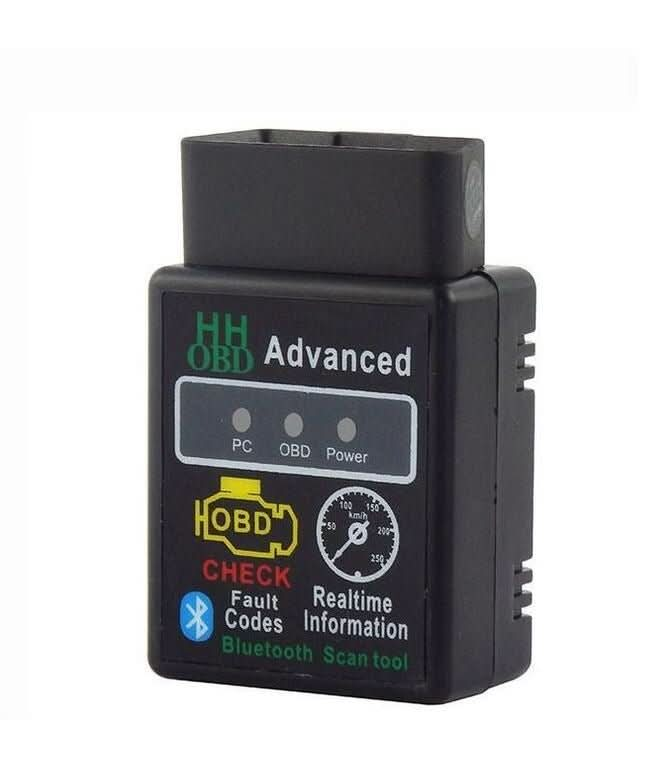

HHOBD Mini Wireless ELM327 OBDII2 Car Fault
Detector 2.1 Version Car Diagnostic Tool Auto OBD Scanner Code Readers

Overview

• Type: Code Reader





• Model Number: HHOBD22



• Warranty: 12 Months, One year



• Style: ELM327 BT V2.1



• Keywords: Car Diagnostic Tool



• Size: 6x3cm



• Weight: 0.05kg



• Color: black



• Function: For car Scanner



• Quality: High



• Case Material: ABS



• Support: Android Torque | Not: IOS

Product Description

Supported OBDII protocols
1) ISO91412(5 baud init,10.4Kbaud)
2) ISO142304 KWP (5 baud init, 10.4 Kbaud)
3) ISO142304 KWP (fast init, 10.4 Kbaud)
4) ISO157654 CAN (11bit ID, 500 Kbaud)
5) ISO157654 CAN (29bit ID, 500 Kbaud)
6) ISO157654 CAN (11bit ID, 250 Kbaud)
7) ISO157654 CAN (29bit ID, 250 Kbaud)

Functions:

1) Read diagnostic trouble codes, both generic and manufacturerspecific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
4) Engine RPM
5) Calculated Load Value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle Speed
9) Short Term Fuel Trim
10) Long Term Fuel Trim
11) Intake Manifold Pressure
12) Timing Advance
13) Intake Air Temperature
14) Air Flow Rate
15) Absolute Throttle Position
16) Oxygen sensor voltages/associated short term fuel trims
17) Fuel System status
18) Fuel Pressure

• Software support platform: Windows XP, Windows 7/8, Android, Symbian, Windows PC



• Compatible software:



• Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.




• Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD, etc.



• Symbian: OBDScope
