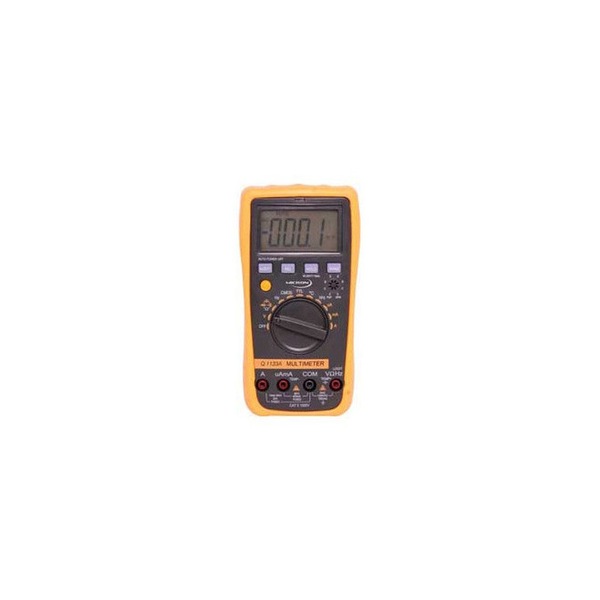

Featuring large, easy to read 20mm digits, this quality mini auto ranging meter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price. Supplied with test leads, rubber holster and temperature probe.
Features
Manual override of auto-ranging
Range hold & data hold
Auto power off
Temperature measurement sensor included)
Continuity buzzer
Diode tester
Frequency 1Hz - 30MHz
Battery included
CMOS and TTL logic testing
Cat II 1000V
Voltage ac: 400mV, 4V, 40V, 400V, 600V (0.8%+6d)
Voltage dc: 400mV, 4V, 40V, 400V, 600V (0.5%+4d)
Current: 400µA, 4000µA, 40mA, 400mA, 20A (dc 1.0%+10d), (ac 1.5%+10d)
Ohms: 400, 4k, 40k, 400k, 4M, 40M Ohm (0.8%+1d)
Temperature: -20oC to 1000oC (1.0%+10d)
Freq. range: 1Hz to 30MHz (0.5%+4d)
Continuity: Less than 50Ohm (10Ohm)
Capacitance: 4nF, 40nF, 400nF, 4µF, 40µF, 200µF 3(3.5%+8d)
Transistor test: Measures hFE
Diode test: Included
Display: 3.75 digit LCD, 3999 count
Protection: 20A M205 fuse on 20A
Dimensions: ≈ 86W x 35D x 170H mm
*Specifications are subject to change without notice.
