Auto Ranging Digital Multimeter with Transistor Tester

Image 1
Image 2
Hurry! 1 items left!
$69.95

Collect 69 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Oz Direct
Secure ways to pay at checkout

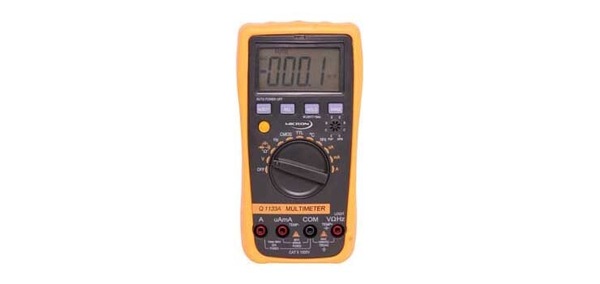

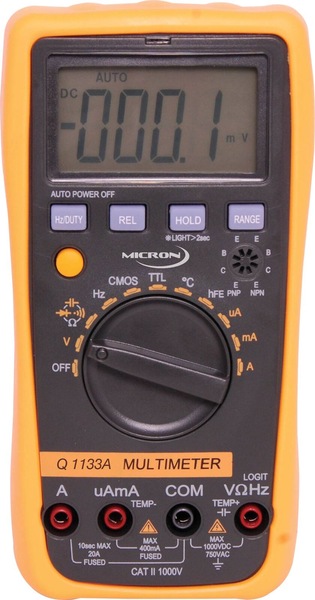

Auto Ranging Digital Multimeter with Transistor Tester
Simple and Easy to use multimeter
Featuring large, easy to read 20mm digits, this quality mini auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price. Supplied with test leads, rubber holster and temperature probe.

Features
  • Manual override of auto-ranging
  • Range hold & data hold
  • Auto power off
  • Temperature measurement sensor included)
  • Continuity buzzer
  • Diode tester
  • Frequency 1Hz - 30MHz
  • Battery included
  • CMOS and TTL logic testing
  • Cat II 1000V

Specifications:

  • Voltage ac: 400mV, 4V, 40V, 400V, 600V (±0.8%+6d)
  • Voltage dc: 400mV, 4V, 40V, 400V, 600V (±0.5%+4d)
  • Current: 400µA, 4000µA, 40mA, 400mA, 20A (dc ±1.0%+10d), (ac ±1.5%+10d)
  • Ohms: 400, 4k, 40k, 400k, 4M, 40M Ω (±0.8%+1d)
  • Temperature: -20°C to 1000°C (±1.0%+10d)
  • Freq. range: 1Hz to 30MHz (±0.5%+4d)
  • Continuity: Less than 50Ω (±10Ω)
  • Capacitance: 4nF, 40nF, 400nF, 4µF, 40µF, 200µF 3(±3.5%+8d)
  • Transistor test: Measures hFE
  • Diode test: Included­
  • Display: 3.75 digit LCD, 3999 count
  • Protection: 20A M205 fuse on 20A
  • Dimensions: ≈ 86W x 35D x 170H mm

Specifications:

3 Month Warranty

GTIN: 9321758178416

Estimated Delivery Time Frame:2-10 Business Days
