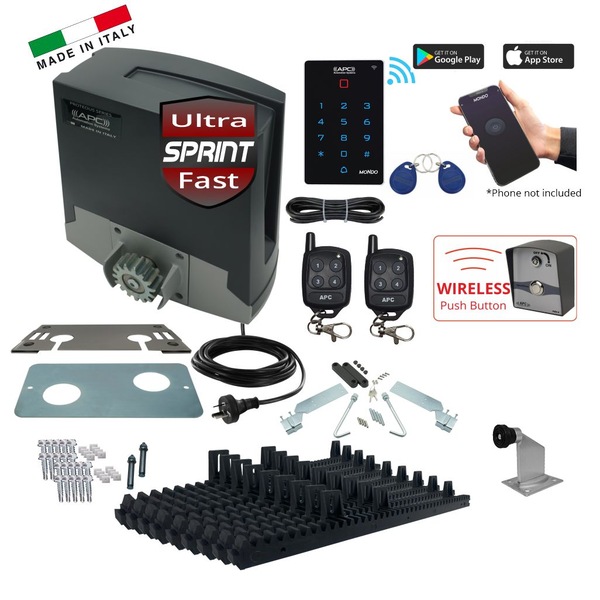

Gate Opener Kit Includes

• APC Proteous 450 Sprint ULTRA FAST Sliding Gate System(QTY: 1)
• APC Four Button Keyring Remote(QTY: 2)
• V4 520mm Nylon Rack(QTY: 10)
• 115mm High Bolt Down Galvanized Gate Stop(QTY: 1)
• APC Wireless Single Push Button Switch with Key Isolation(QTY: 1)
• APC Mondo Wired Keypad with Wi-Fi and APP Control and Swipe Tag Reader (Two Swipe tags and 10m Cable included)(QTY: 1)

Product Information

At a glance

The Proteous 450 provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

• Ultra Fast 36 CM per Second Speed
• 70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
• Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
• 450KG Capacity
• Ultra long 10 metre gate capacity
• Only 150mm Narrow Depth

• Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
• Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
• Fast and Slow Speeds are adjustable
• Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
• Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
• Party Mode System to keep gates opened when configured for use with the automatic close feature
• Underside cable entry with grommets
• Simple to setup left and right side magnet system
• All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
• Strong STEEL Pinion Gear
• Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

• Energy Saving Mode (5mA Standby Current)
• Optional battery backup system
• Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
• Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
• Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
• Induction Loop Compatible for auto opening or as a safety device
• Supports programmable timers

• Adjustable Over current adjustments
• Built in Encoder with adjustable sensitivity
• Safety Sensor connection input configurable for open and/or closing
• Supports Safety Edges
• Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App Based Control)
• GSM Control Systems (Mobile Call/SMS based Control)

APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

• APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader(QTY: 1)
• Em Swipe Tag(QTY: 2)
• 10m 4 Core Non Shielded Cable(QTY: 1)

Product Information
APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotely by APP whether on-site or off-site (anywhere in the world).

Key Feature Set:

• Full operational control by Tuya APP
• Resin Filled for best weatherproofing
• 12-24V DC Compatible
• Low Power Consumption
• Backlit Touch Keys
• Up to 2000 Users
• Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
• Adjustable Relay Time from 0-99s or Latching ON/OFF
• Doorbell Contacts to connect to your doorbell system
• Both NO and NC Circuits
• Suits most automatic gates
• Suits most electric strikers

Specifications
