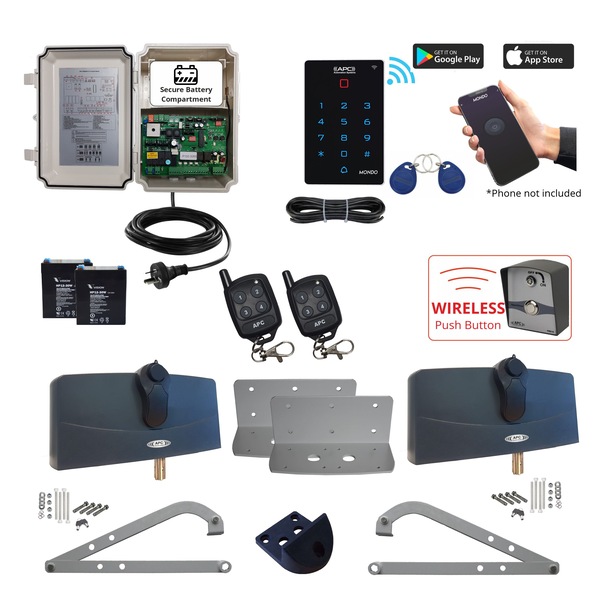

Gate Opener Kit Includes

• APC-790 Articulated Motor, Cover, and Assembly Hardware (QTY: 2)
• Side Mounting (SM) Bracket System (QTY: 2)
• APC-790 Adjustable Long Arm System (QTY: 2)
• APC Weatherproof Control Box with Built-in Battery Compartment and 1.2m Power Cord (Ready to Plug-In) (QTY: 1)
• 5aH Battery Backup(QTY: 2)
• APC Four Button Keyring Remote (QTY: 2)
• 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
• APC Wireless Single Push Button Switch with Key Isolation(QTY: 1)
• APC Mondo Wired Keypad with Wi-Fi and APP Control and Swipe Tag Reader (Two Swipe tags and 10m Cable included)(QTY: 1)

Product Information

Extra Heavy Duty High-Speed Articulated Arm System

Reliability, Durability Weatherproof

Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 4.5m of gate or 300kg of weight. Furthermore, it is completely weatherproof and concealed to suit all weather conditions.

All-Metal Gear Box (NO PLASTIC OR NYLON)

Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.

Limit Switches and Manual Override

Built-in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.

360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.

24V Extra Heavy Duty DC Motor

Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.

Adjustable Long Span Powder coated Steel Arms

Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the Centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.

Forward Mount Bracket

Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 350mm in width making it ideal to be used on pillars for optimal holding strength across brick work or to be offset off the post in push to open installs.

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point

System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes

Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Magnetic Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Battery Back-Up (Optional)

The backup battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Specifications

APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

• APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader(QTY: 1)
• Em Swipe Tag(QTY: 2)
• 10m 4 Core Non Shielded Cable(QTY: 1)

Product Information
APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotely by APP whether on-site or off-site (anywhere in the world).

Key Feature Set:

• Full operational control by Tuya APP
• Resin Filled for best weatherproofing
• 12-24V DC Compatible
• Low Power Consumption
• Backlit Touch Keys
• Up to 2000 Users
• Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
• Adjustable Relay Time from 0-99s or Latching ON/OFF
• Doorbell Contacts to connect to your doorbell system
• Both NO and NC Circuits
• Suits most automatic gates
• Suits most electric strikers
