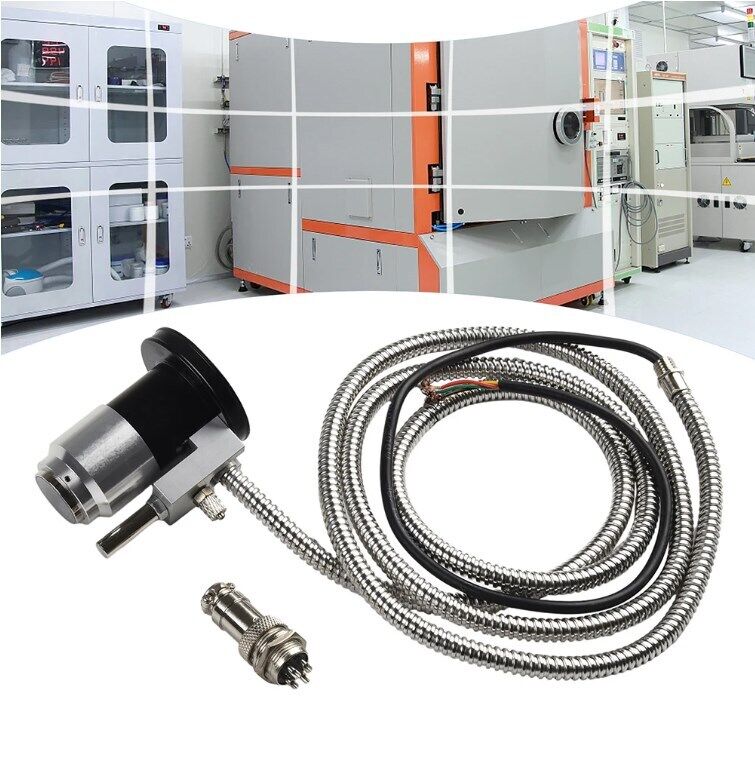

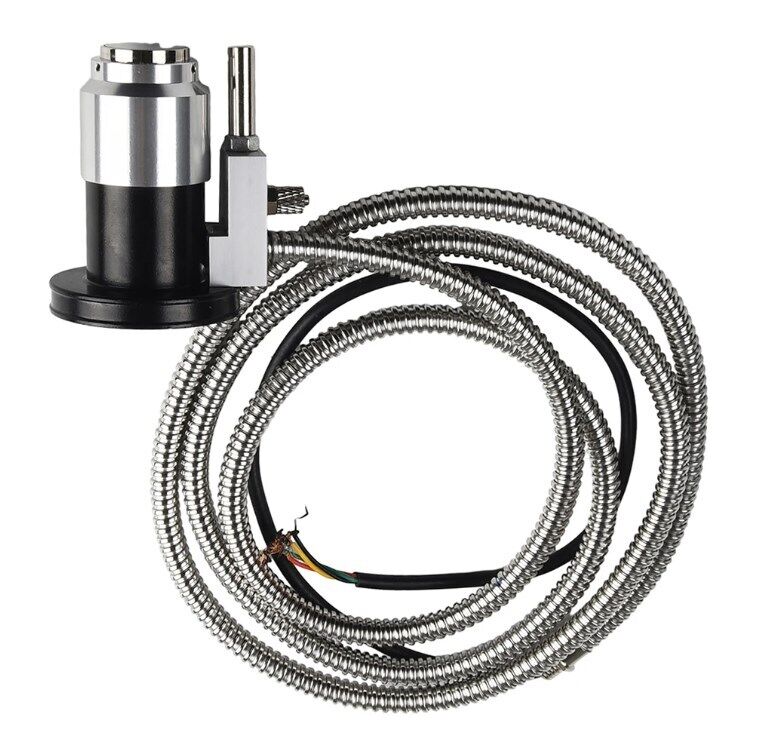

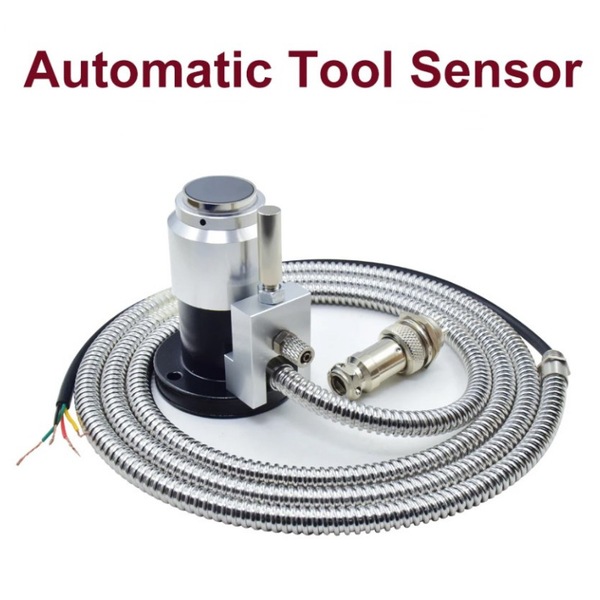

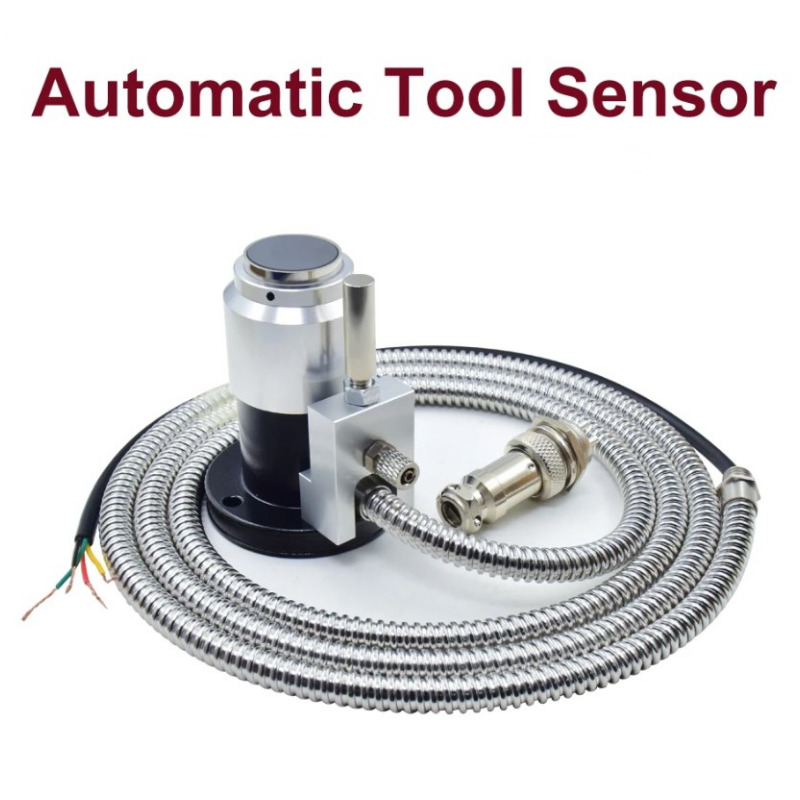

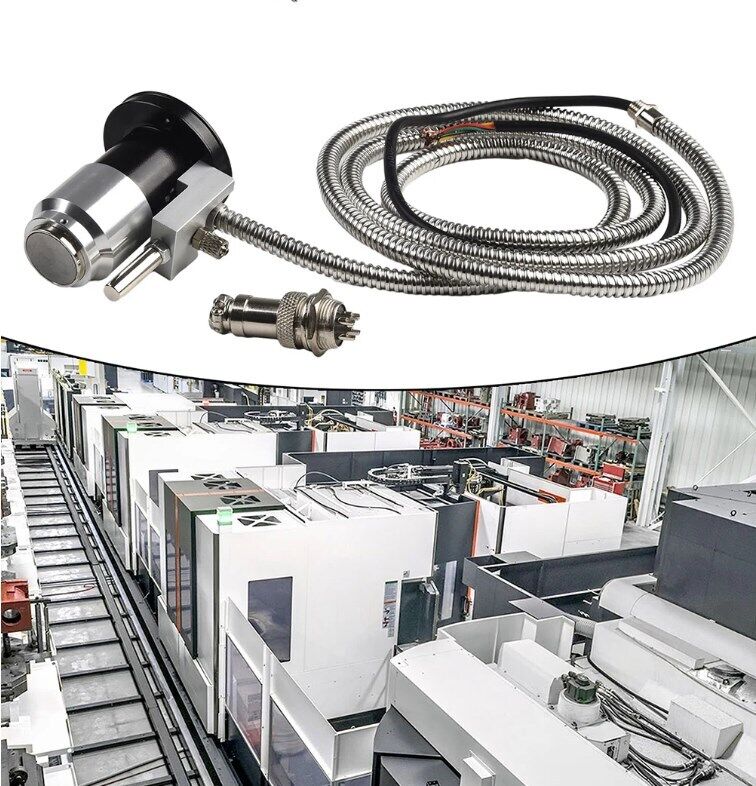

Automatic Touch Sensor CNC Engraving Gauge Tool Sensor Z Axis Probe Sensor

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 3 items left!
$119.99

Collect 119 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
Features:
  • Waterproof and dustproof structure, with good durability in CNC machining operations.
  • It can greatly improve the tool setting efficiency in CNC machining.
  • When the stroke is exceeded, it will sound an alarm.
  • Automatic detection of tool damage: If the tool is damaged or broken, the machine will automatically stop running and issue a warning.
  • Automatic tool wear compensation: Once the tool head wear is detected, the relevant program can be corrected to ensure the accuracy of the workpiece.
Specification:

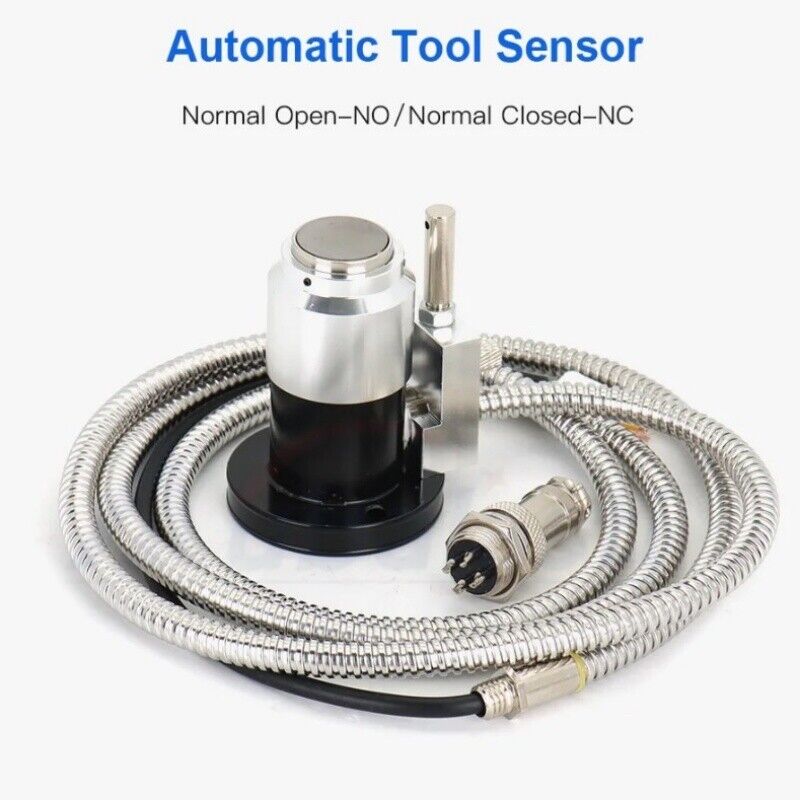

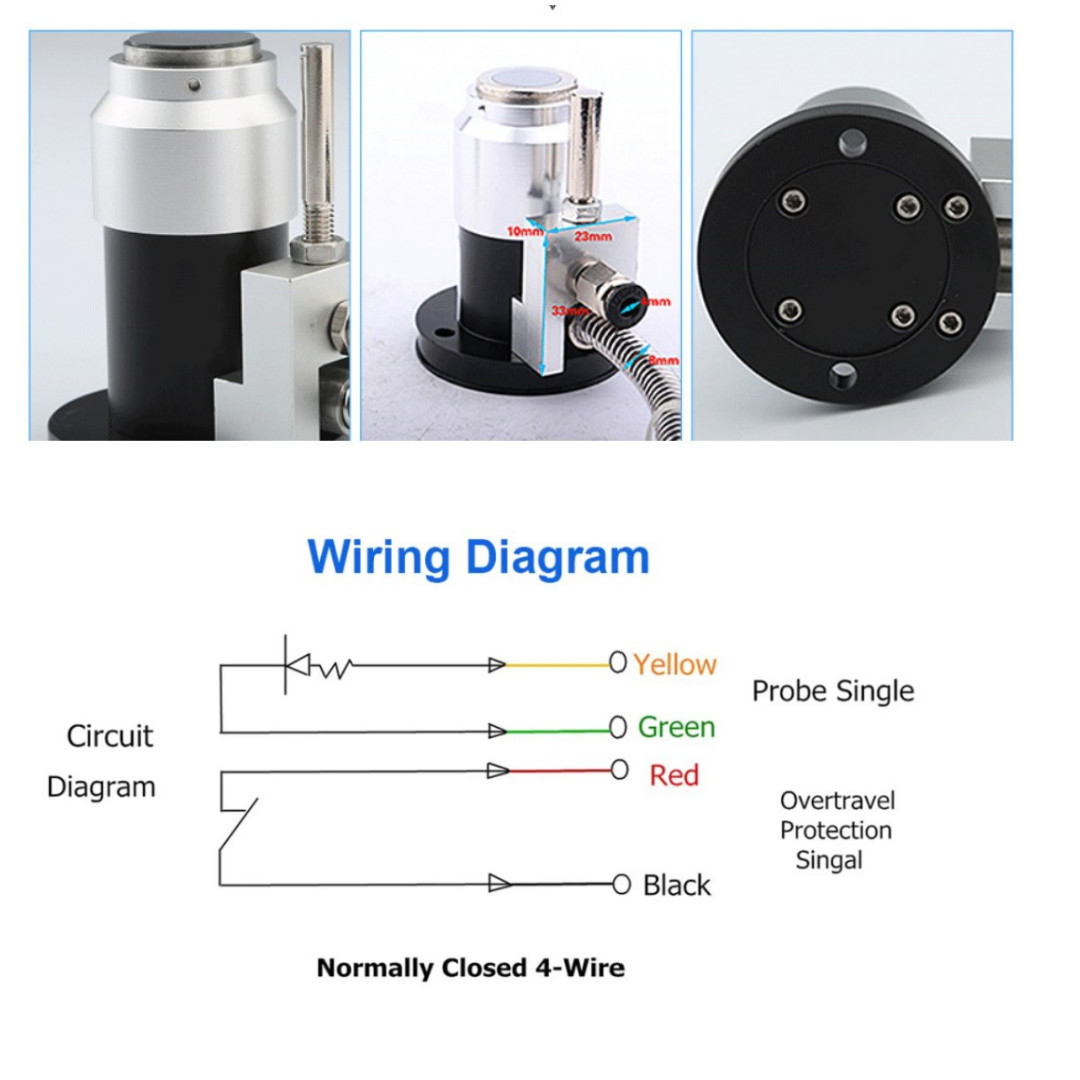

  • Output mode: NC (normally closed) Almost 0 before the trip
  • Stroke: 5mm
  • Repeat positioning accuracy: 0.001mm (working speed: 50-200mm/min)
  • Life: 3000000 times
  • Contact force: 1.5N
  • Shell grinding: 4S
  • Protection level: IP67
  • Cutter diameter: 20mm

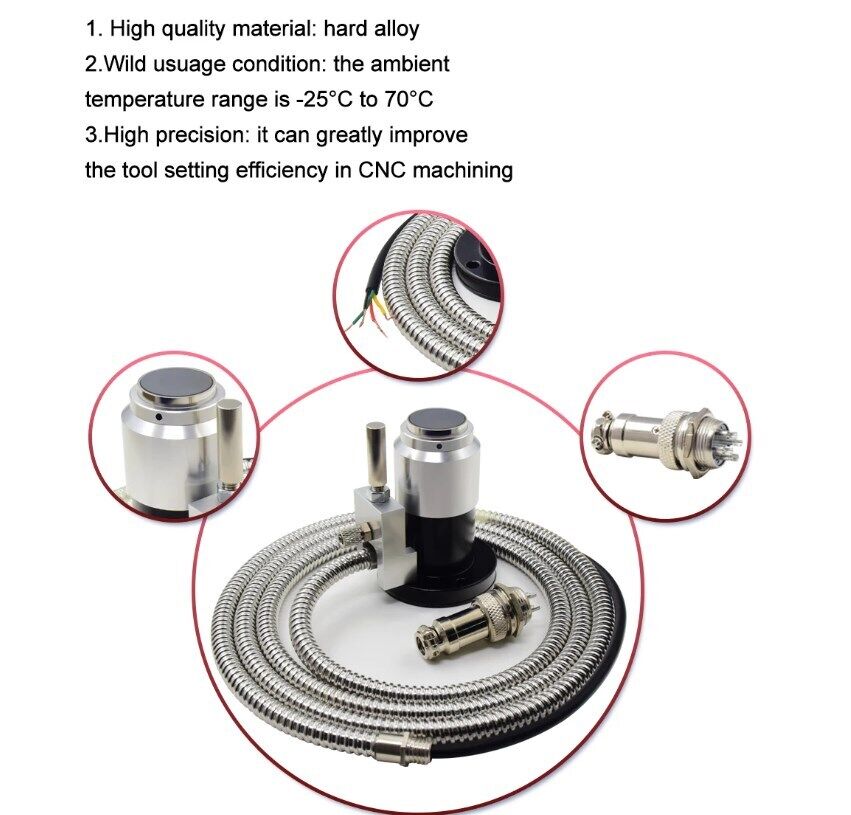

  • Material: Hard alloy.
  • Out of specification: NC (normally closed), distance signal is about 5mm
  • Impact level: DC24V 20mA (MAX) 10mA (resistive load)
Installation Notes:
  • The pillar and the tool setting device must be perpendicular to the contact surface and perpendicular to the contact surface. Please install them on a workbench with small iron filings as much as possible.
  • Make sure to use the voltage within the rated power supply range, please control DC10-30V, the current is less than 20mA, and the ambient temperature range is -25°C-70°C.
  • Please control the tool diameter to be less than 20mm, and the cutting speed to be less than 50-200mm/min. The center of the tool should fall on the center of the tool face.

SKU: 256669138615
