Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

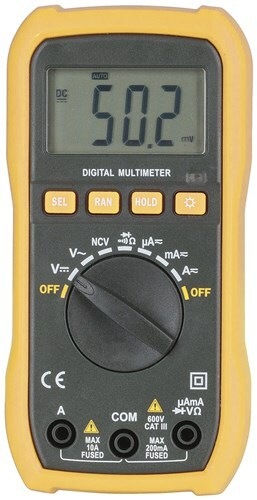

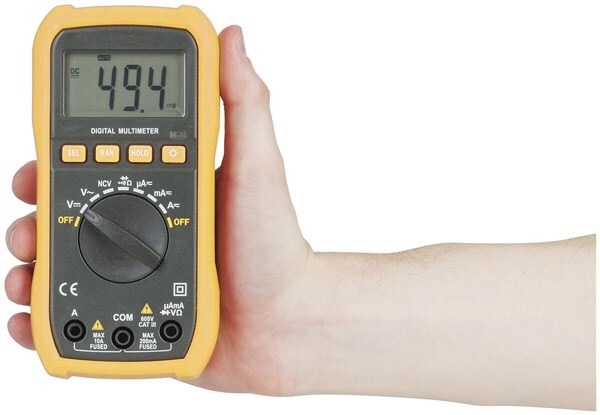

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.
Length : 144mm |
Width : 70mm |
Height : 32mm |
Weight : 200g |
Meter Input Impedence : 10MΩ |
Led Indicator Display : false |
Measures diode : true |
Measures transistor : false |
Data Hold : true |
Safety Rating Cat : Cat III |
Safety Rating Max Volt : 600V |
Display Type : LCD |
Display Backlight : LED Backlit |
Probe Type : High Grade Meter Probes |
Connection to meter : Shrouded 4mm Banana Plug |
Probe rating voltage : 600V |
Probe safety rating : Cat II |
Continuity indicator : On Panel |
Continuity buzzer : true |
Packaged Volume : 2.05l |
Packaged Weight : 0.33kg |
Packaged Length : 25.5cm |
Packaged Width : 14.9cm |
Packaged Height : 5.4cm |
Size / Shape : AAA |
Battery quantity : 2pc |
Batteries included : true |
Batteries can be replaced by user : true |
Compartment location : Back |
How is battery compartment kept closed : Screw |
DC Voltage Ranges : 200mV, 2V, 20V, 600V |
DC Voltage Accuracy : ±0.8% |
AC Voltage Ranges : 200µV, 2mV, 20mV, 200V, 600V |
AC Voltage Accuracy : ±1% |
AC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A |
AC Current Accuracy : ±3% |
DC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A |
DC Current Accuracy : ±3% |
Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
Resistance Accuracy : ±1.5% |
Count Maximum Reading : 2000 count |
True RMS : false |
Autorange : true |
Optical Sensor : false |
Measures duty cycle : false |
Measures dwell : false |
Input Protection Fuse : 500mA, 10A |
Foldout Stand : true |
Casing : Plastic |
Carry Case Included : false |
Battery used for : Main Product |
Batteries can be replaced : true |
Size / Shape : AAA |
