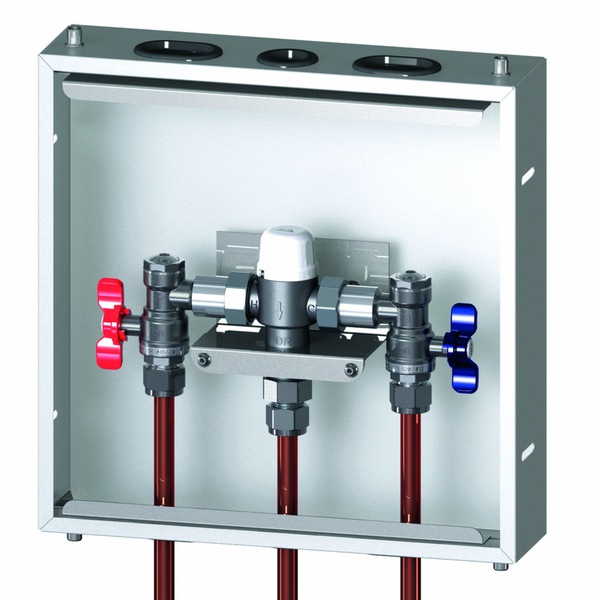

AVG 20mm Tmv Plumbed In Box - Tmv20-Pib

Image 1
Hurry! 2 items left!
$579.34

Collect 579 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide

Dispatch in 2 business days

FREE SHIPPING when you spend over $495

Exclusive to products sold by Direct Wholesale Supplies

Sold & shipped by Direct Wholesale Supplies
Secure ways to pay at checkout

TMV20-PIB


Thermostatic Mixing Valve



  • Approved to AS4032.1

  • Provides high stability of mixed water temperature even under changing inlet conditions

  • Ensures rapid shut down of mixed outlet flow in the event of hot, or cold water supply isolation.

  • Easily serviced on site

  • Supplied complete right angle isolating ball valves on the cold , hot inlets, that contain non return valves, strainers , pressure/temperature test ports.

  • Supplied with both 15mm , 20mm Nut , olive fittings for the outlet

  • Lockable stainless steel enclosures also available

  • NSW health dept. approved


Recommended Pressures and Temperatures


































































MIXED OUTLET TEMPERATURE
Temperature Adjustment Range 35oto 45oCelsius
INLET TEMPERATURES
Cold Supply Minimum 5oCelsius
Maximum 25oCelsius
Hot Supply Minimum 60oCelsius
Maximum 90oCelsius
Hot to Mix Temperature Differential for Stable operation Minimum 10oCelsius
Cold to Mix Temperature Differential For stable operation Minimum 5oCelsius
FLOW RATES
To ensure stable outlet conditions Minimum 4 litres/minute As per Graph 1
DYNAMIC INLET PRESSURES
Hot and Cold Inlet Pressures Minimum 20 kPa
Maximum 500 kPa
STATIC INLET PRESSURE
Hot and Cold Inlet Pressures Maximum 1000kPa
INLET PRESSURE RATIO
Maximum inlet pressure ratio
for stable operation
(Hot:Cold or Cold:Hot)
10:1 (either supply)
NOTE: For optimum operation it is recommended that the hot and coldwater supply
pressures be balanced to within +/- 10%.
NOTE: Notwithstanding the above, compliance with AS3500 must be maintained.

GTIN: 9336629002127
