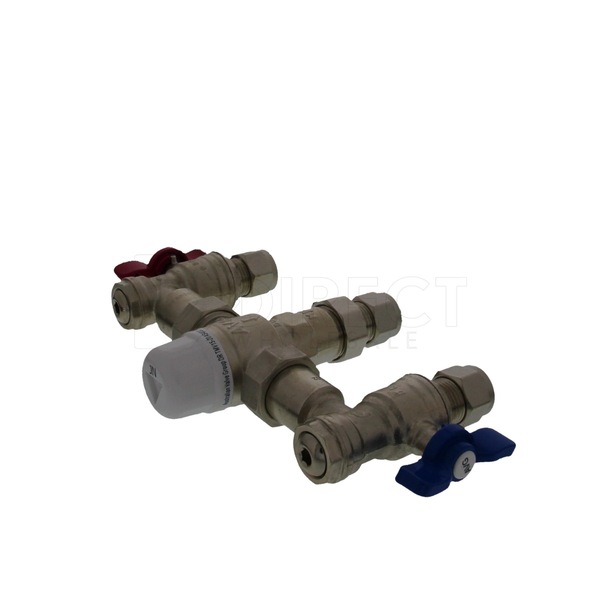

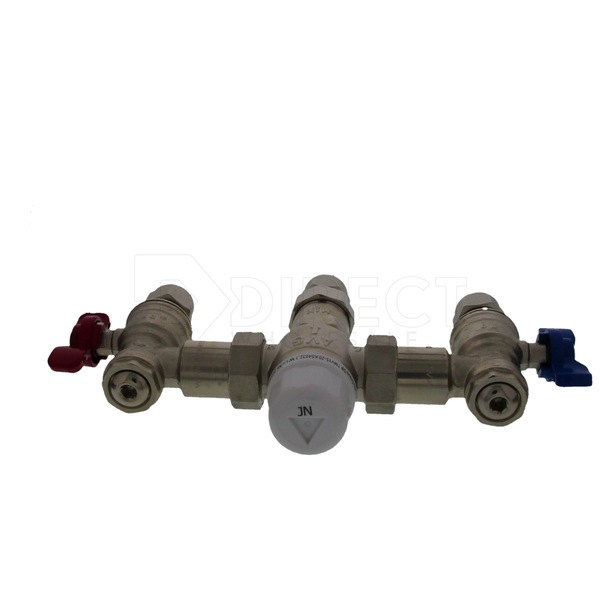

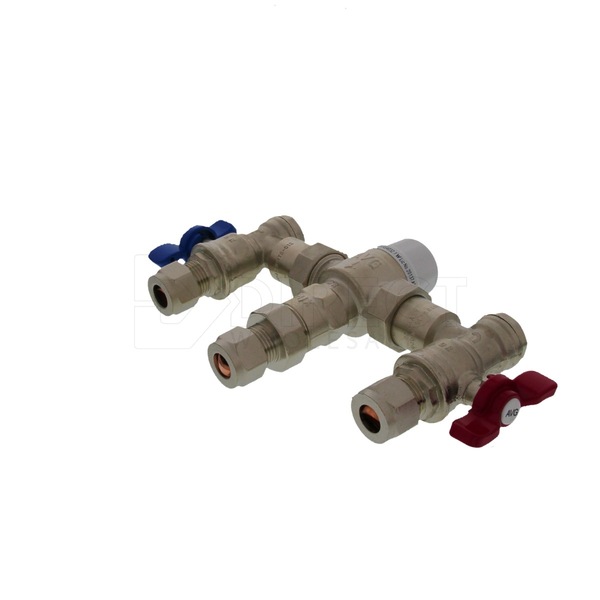

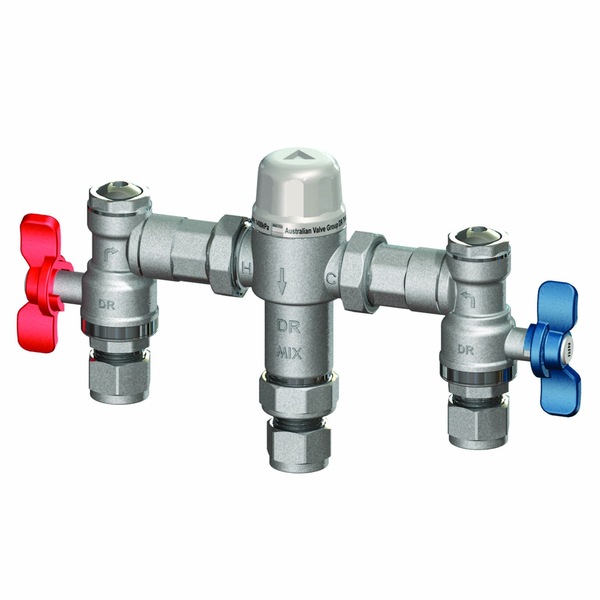

AVG Thermostatic Male xing Valve 15mm (1/2) - Tmv15

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 1 items left!
$239.12

Collect 239 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide

Dispatch in 2 business days

FREE SHIPPING when you spend over $495

Exclusive to products sold by Direct Wholesale Supplies

Sold & shipped by Direct Wholesale Supplies
Secure ways to pay at checkout

Thermostatic Mixing Valve



  • Approved to AS4032.1

  • Provides high stability of mixed water temperature even under changing inlet conditions

  • Ensures rapid shut down of mixed outlet flow in the event of hot, or cold water supply isolation.

  • Easily serviced on site

  • Supplied complete right angle isolating ball valves on the cold hot inlets, that contain non return valves, strainers pressure/temperature test ports.

  • Supplied with both 15mm 20mm Nut olive fittings for the outlet

  • Lockable stainless steel enclosures also available

  • NSW health dept. approved


Recommended Pressures and Temperatures




























































MIXED OUTLET TEMPERATURE
Temperature Adjustment Range 35degree to 45degree Celsius
INLET TEMPERATURES
Cold Supply Minimum 5degree CelsiusMaximum 25degree Celsius
Hot Supply Minimum 60 degree CelsiusMaximum 90Celsius
Hot to Mix Temperature Differential for Stable operation Minimum 10 degree Celsius
Cold to Mix Temperature Differential For stable operation Minimum 5degree Celsius
FLOW RATES
To ensure stable outlet conditions Minimum 4 litres/minute As per Graph 1
DYNAMIC INLET PRESSURES
Hot and Cold Inlet Pressures Minimum 20 kPaMaximum 500 kPa
STATIC INLET PRESSURE
Hot and Cold Inlet Pressures Maximum 1000kPa
INLET PRESSURE RATIO
Maximum inlet pressure ratiofor stable operation(Hot:Cold or Cold:Hot) 10:1 (either supply)
NOTE: For optimum operation it is recommended that the hot and coldwater supplypressures be balanced to within +/- 10%.NOTE: Notwithstanding the above, compliance with AS3500 must be maintained.

GTIN: 9336629000833
