Avit Cables Direct Burial Speaker Cable 100M Black Spool

Image 1
Hurry! 3 items left!
$699.95

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Crazy Sales Australia
Secure ways to pay at checkout

Popular Products

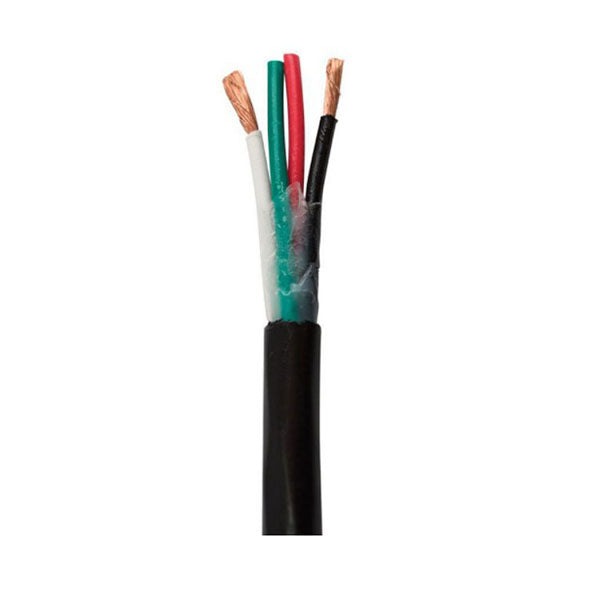

AVIT CABLES DIRECT BURIAL SPEAKER CABLE 4C/14AWG 105 STRANDS - 100M BLACK SPOOL

FEATURES

CONDUCTOR
Material: Stranded Bare Copper
Sizel 14AWG X 4C(2.11mm^2)
Construction: 105/0.160mm +/-0.004mm

INSULATION
Material: PVC
Min.Thickness: 0.33mm
AVG.Thickness: 0.36mm
Diameter: 2.60mm +/-0.10mm
Colors: Black & Red &White & Green

FILLER
Jelly: Gel Filled

SCREEN
Wrap: PE Tape

JACKET
Material: LLDPE
Min.Thickness: 0.70mm
AVG.Thickness: 0.80mm
Diameter: 8.2mm +/-0.20mm
Rip Cord: Nylon
Color: Black

BEND RADIUS
Min 15D/125mm

Operating Temperature Range: - 20°C + 75°C
Minimum installation temperature: 0°C + 40°C
Conductor Resistance: Max 9.2ohm/km at 20°C
Insulation Resistance: Min 50MΩ*km at 20°C
Dielectric Strength: Min AC1.5KV
Rated Voltage: 300V
Test Voltage: 800V/min

IMPEDANCE
Opposite: 86±5Ω
Near by: 70±5Ω

CAPACITANCE
Opposite: 19.6±3pf/ft
Near by: 26±3pf/ft

PACKAGE CONTENTS

1 x Avit Cables Direct Burial Speaker Cable

SKU: AVI-DB144-100M-BK

Estimated Delivery Time Frame:6 - 10 Business Days
