Introduction:

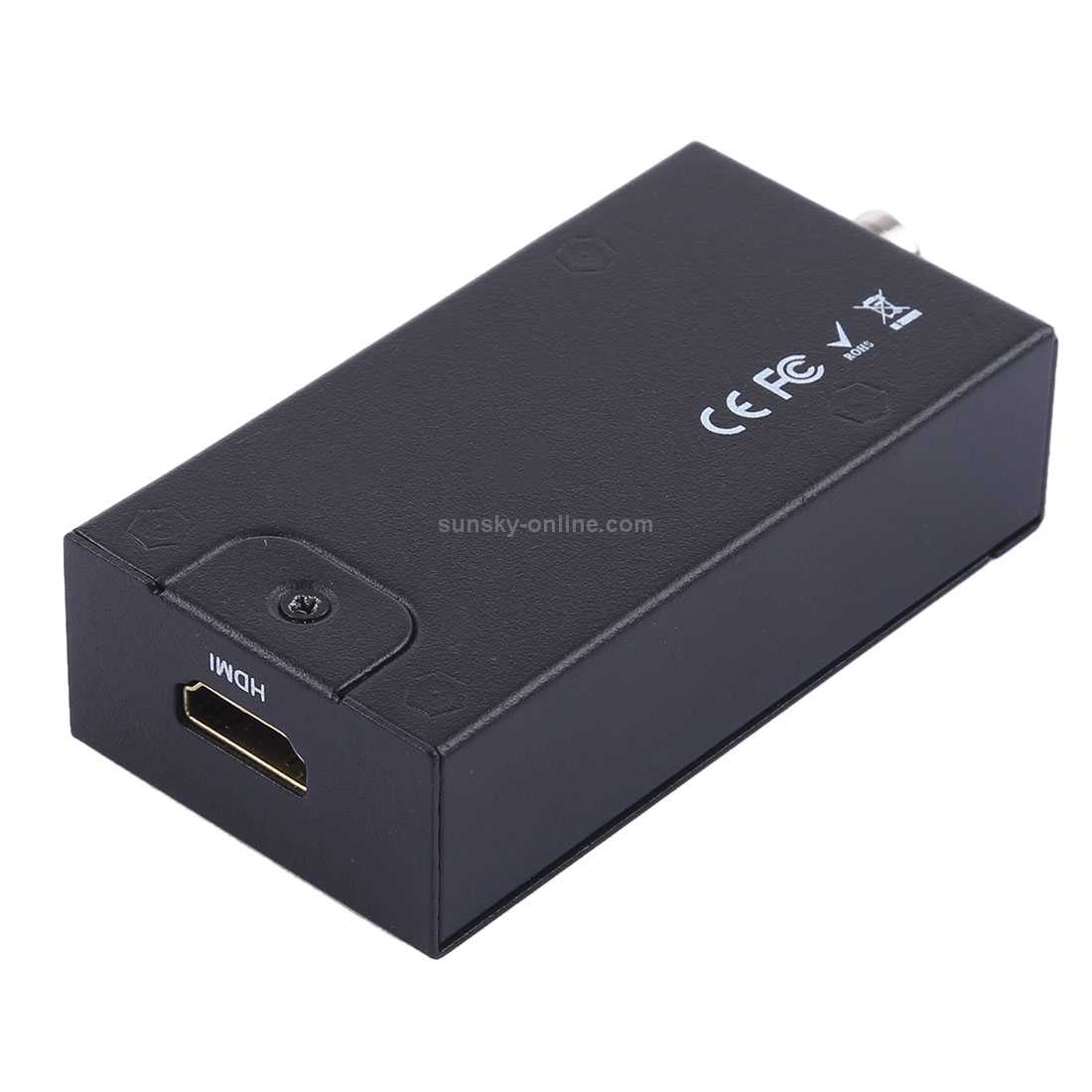

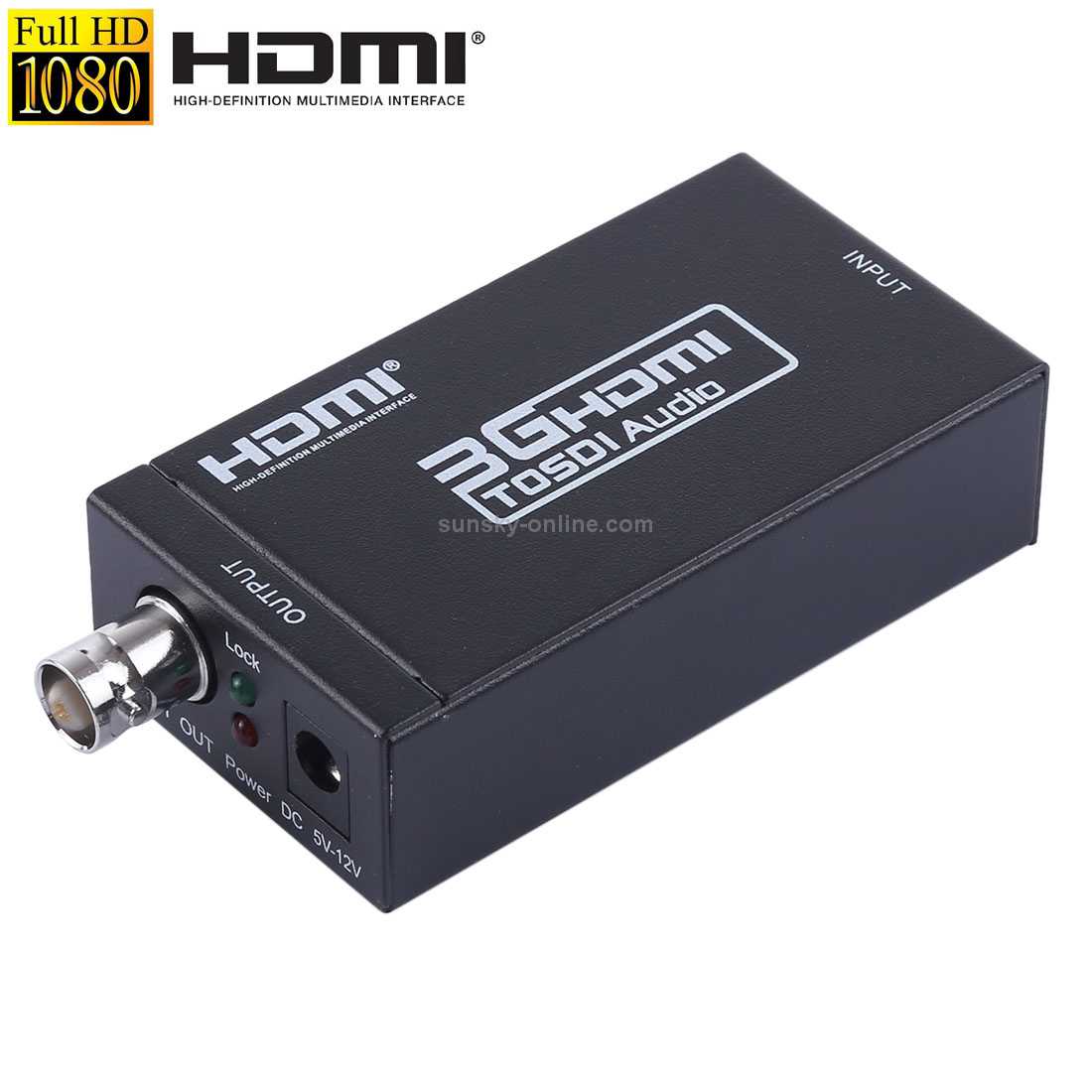

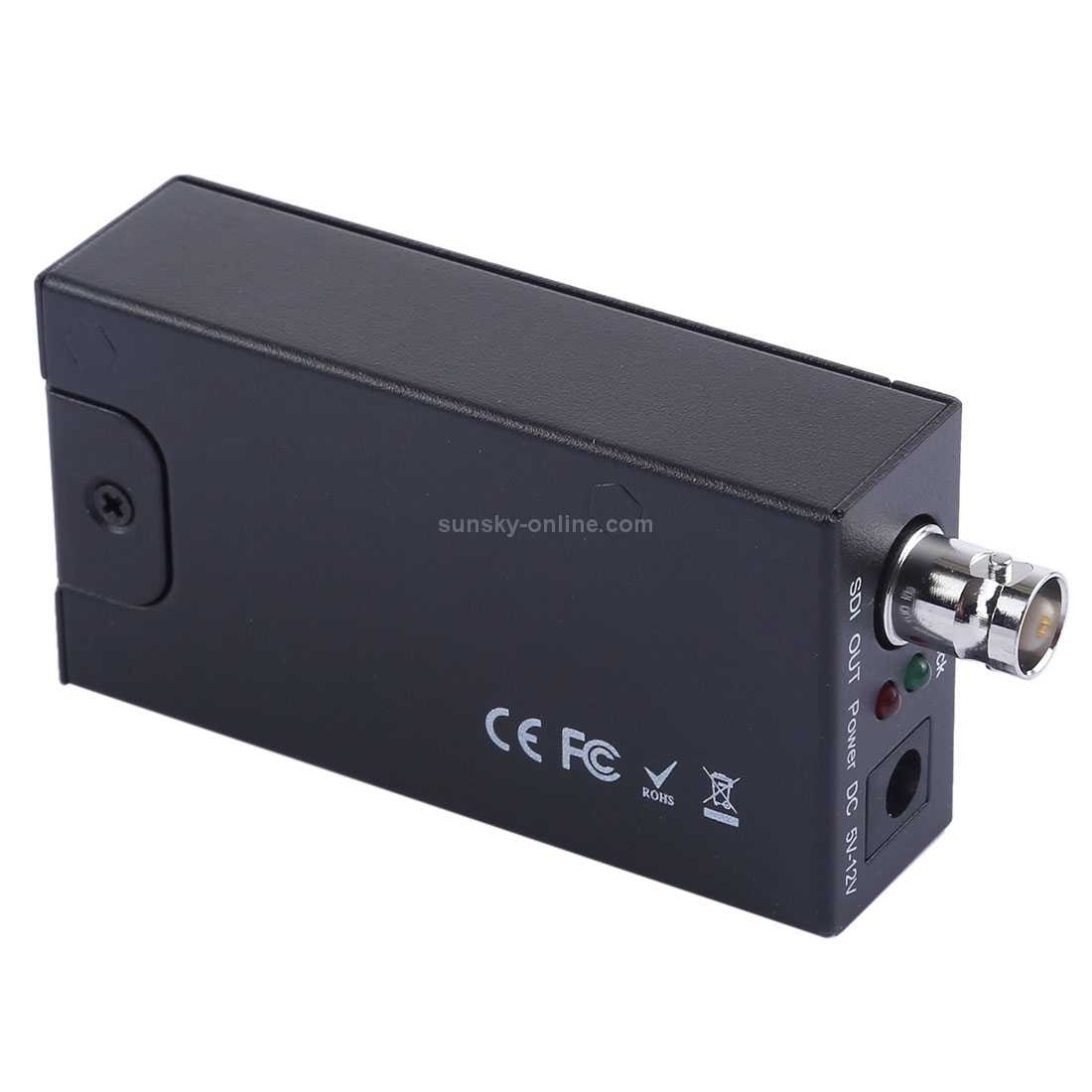

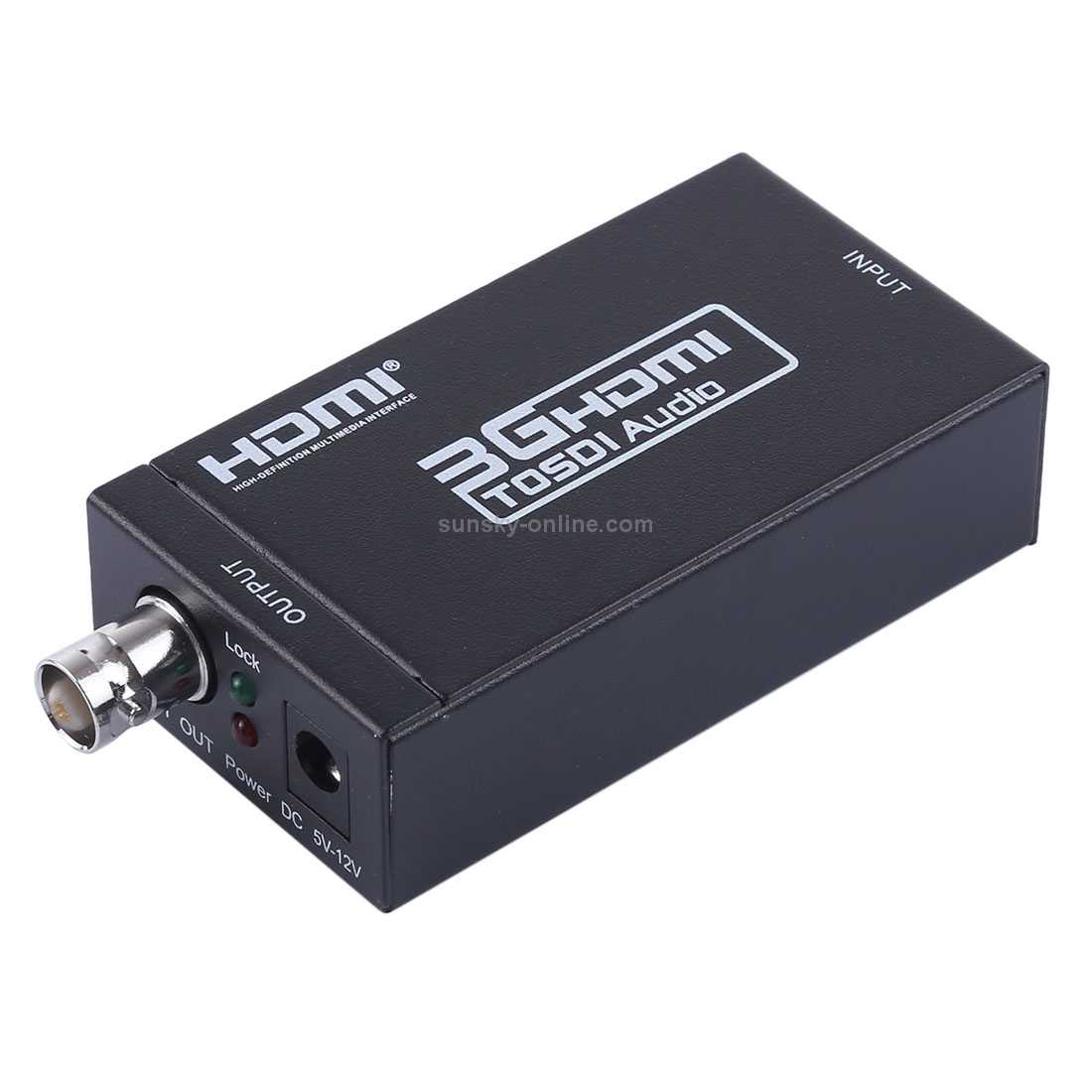

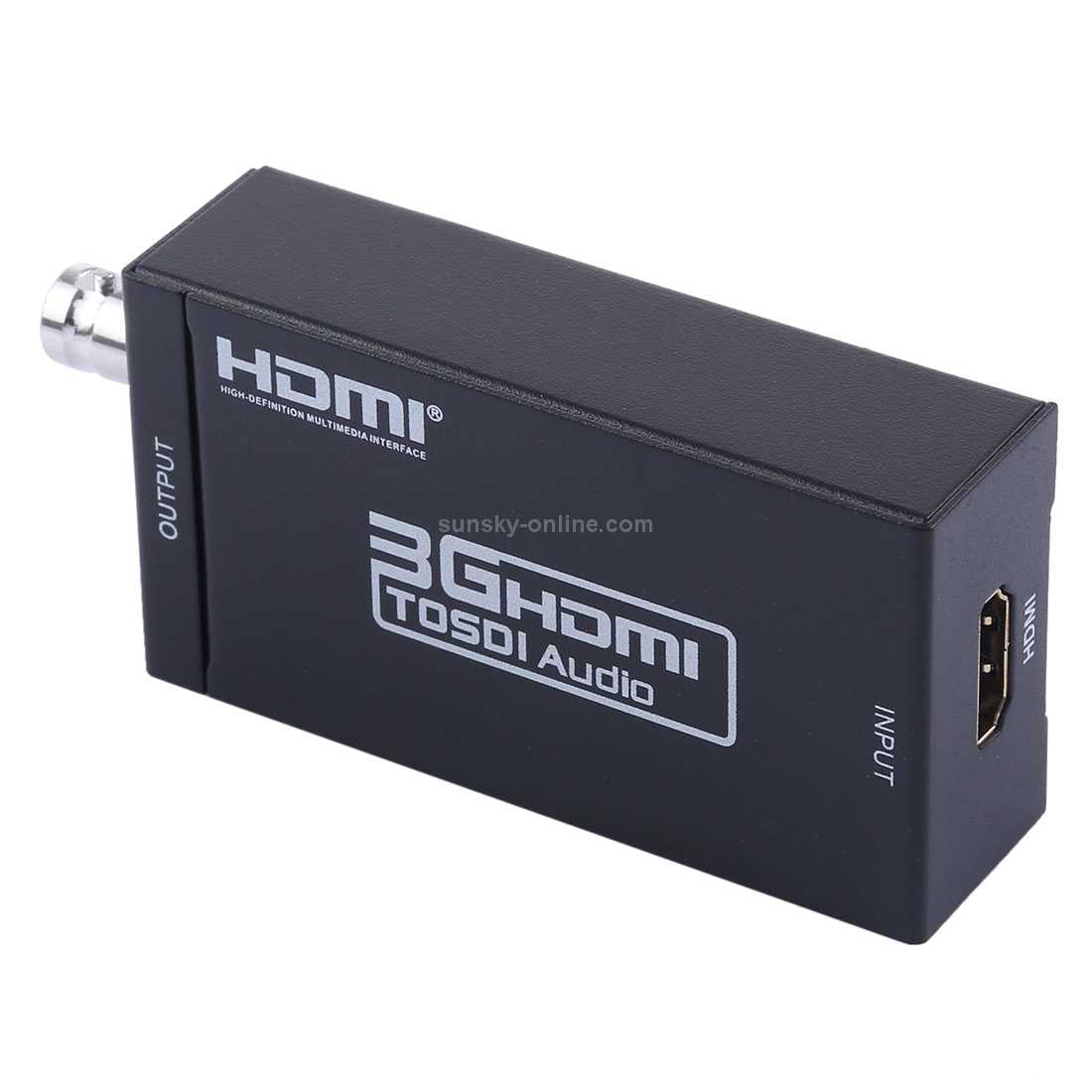

MINI HDMI to SDI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on the HDMI display, while ensuring a high bit rate of 2.970 Gbit / s, thus providing you with fast signal transmission without any loss . For professionals, this means that with the built-in HDMI converter, it is now easier to distribute and extend 3G SDI signals, while enabling you to display your work on HDMI displays.

Feature:
1. Run at speeds of 2.970Gbit / s, 1.485Gbit / s and 270Mbit / s
2. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Loop output integrated audio de-embedder with equalization and retime, maximum 8 channels, 48 a??a??KHz audio
4. From SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4: 2: 2 10-bit conversion
5. Connect with other devices to extend the signal distance

Specification:
1. Input port: 1 x HDMI
2. Output port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
3. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
4. Input / output resolution: 480i, 576i, 720p @ 50 / 59.94,60, 1080i @ 50 / 59.94 / 60 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V -12V
6. ESD protection human body model: ?�� 8kV (air gap discharge), ?�� 4kV (contact discharge)
7. Dimensions: 80mm x 41mm x 22.5 mm
8. Weight: 105g
9. Working temperature: 0 ?�� C-40 ?�� C
10. Storage temperature: -20 degrees Celsius -60 degrees Celsius-
11. Power consumption: up to 5W

Packing list:
3G HDMI to SDI converter x 1
5V DC power adapter x 1
Operation Manual x 1
