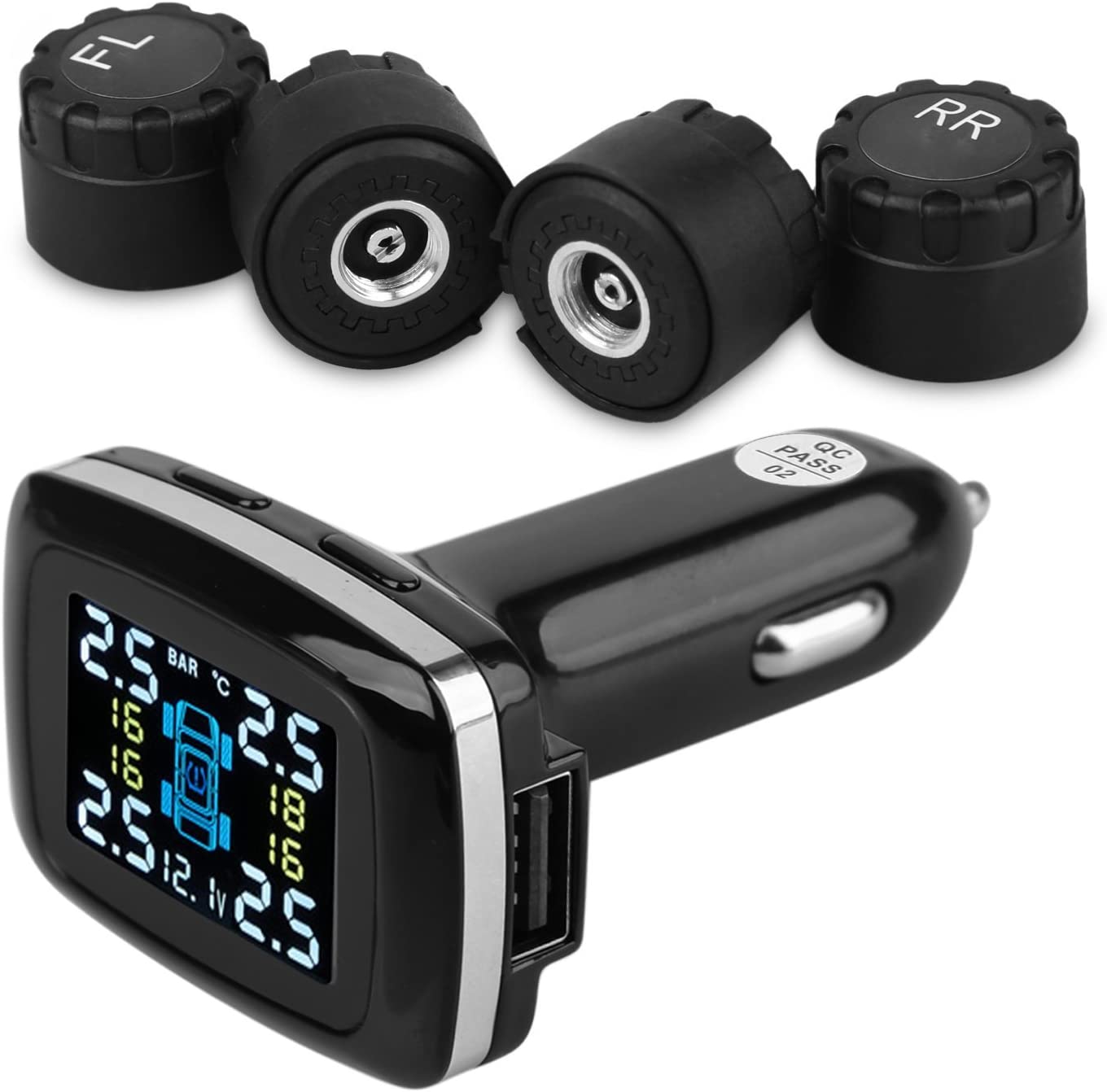

B-Qtech/Jansite DIY Tire Pressure Monitoring System, Wireless TPMS with 4 External Sensors, Cigarette Lighter Plug LCD Display with Tire Pressure, Temperature
,gravity=Center,allowExpansion)
The Tire Pressure Monitoring System could monitor tire dynamic pressure, which helps you avoid tires puncture and leakage, save fuel, reduce tire wear and increase traffic safety.
Kindly note:
1. Available for 4 tires household vehicles, sport cars, trailers, trucks which tire pressure range is 0 to 50.75 PSI up to 19 ft(6 meters).
Sensor signal distance: The normal distance is 10-16 ft(3-5 meters). Beyond 10 meters (33 ft), the signal would not be clear.
2.You should use the included sensors, not factory (OEM) sensors. Or it won’t work with the monitor.
3.Please refer to the detailed instruction manual. Any questions, please feel free to contact us via our customers service email bqtech_service@126.com.
Specification:
1. Default alarm value: 29 Psi-43.5 Psi/ 2 Bar-3 Bar. The high alarm value could be customized between 1.1 Bar-3.5 Bar /15.95 Psi-50.75 Psi. Pressure Sensitivity: +/-0.1 Bar (1.5 Psi)
2. Temperature monitoring:-40 ℃-+130℃.Only alert if the temp is higher than the default value 70℃(158℉). The temp alarm value also can be customized between 60℃-90℃(140℉-194℉).
7 Steps for DIY Sensors Installation:
1.Plug monitor into cigarette lighter hole, turn on monitor
2.Unscrew the valve cap
3.Screw in the hexagon nut
4.Put in the washer
5.Insert and tighten the sensor
6.Tighten up the hexagon nut to the sensor following reverse direction with spanner
7.Test air leakage with soapy water
Note.Need to remove sensor and nut whenever you will want to add air
Package Contains:
1 x Tire Pressure Monitor
4 x Tire Pressure Sensor
1 x Opener End Wrench
1 x Hexagon nut wrench
4 x Hexagon nut
1 x Silica gel ring
1 x English instruction manual
