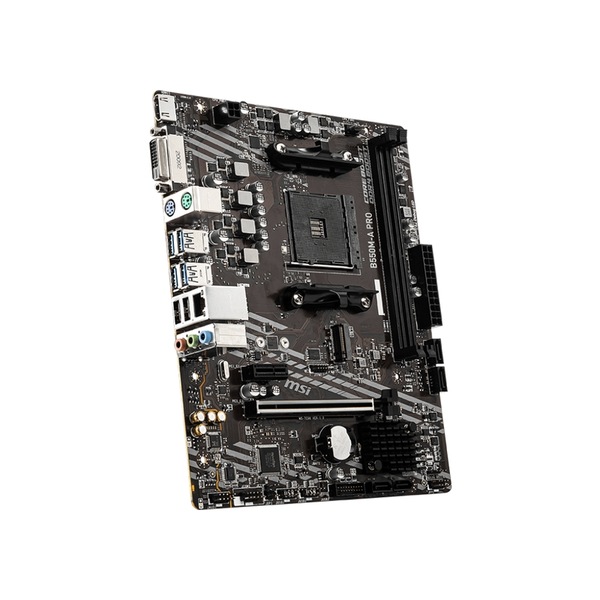

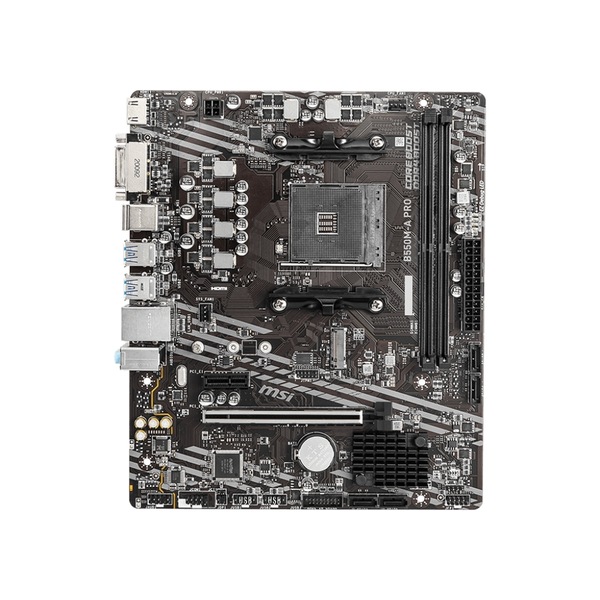

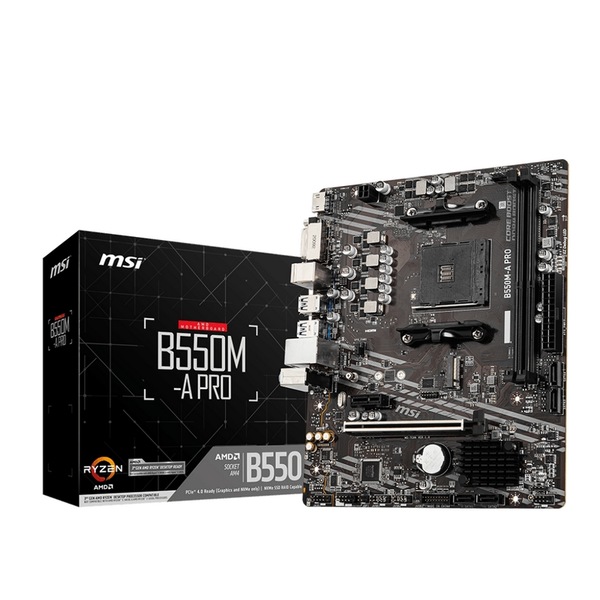

[B550M-A PRO] Motherboard, for AMD CPU, DDR4, AM4, Micro-ATX MB

Image 1
Image 2
Image 3
$162.15

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

MSI MSI B550M-A PRO Motherboard (AMD Ryzen 3000 3rd Gen AM4, DDR4, M.2, USB 3.2 Gen 1, HDMI, Micro ATX)

Features:
  • Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4M.2
  • Core Boost:With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost:Advanced technology to deliver pure data signals for the bestperformance and stability
  • 2oz Thickened Copper PCB:An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center:A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Specifications:
  • CPU :

    Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors

    See supported processors from MSI Official Site

  • Chipset :

    AMD B550 Chipset

  • Memory :
    • 2x DDR4 memory slots, support up to 64GB 1
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 4600 MHz
        • 1DPC 2R max speed 3866 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    1. Please refer MSI Official Site for more information on compatible memory.

    See supported memory from MSI Official Site

  • Expansion Slot :
    • 1x PCIe 3.0 x1 slot 1
    • 1x PCIe 4.0/3.0 x16 slot
    1. The supported specification depends on installed processor.
  • Onboard Graphics :
    • 1x HDMIâ„¢ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
      Support HDCP 1.4 & 2.3
    • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
    • Maximum shared memory of 16 GB
    1. Available for the processor with integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.
  • Storage :AMD B550 Chipset
    • 4x SATA 6Gb/s ports
    • 1x M.2 slot (Key M) (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    1. The supported specification depends on installed processor.
  • RAID :
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB :AMD B550 Chipset
    • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor
    • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
  • Audio :Realtek® ALC892/ALC897 Codec
    • 7.1-Channel High Definition Audio
  • LAN :
    • 1x Realtek® RTL8111H Gigabit LAN controller
  • Internal connectors :
    • 1x 24-pin ATX main power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 1x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1xTPM module connector
    • 1x Clear CMOS jumper
  • Back panel ports :
    1. LAN port
    2. HDMIâ„¢
    3. DVI-D
    4. Keyboard / Mouse
    5. USB 3.2 Gen 1 5Gbps Type-A
    6. USB 3.2 Gen 1 5Gbps Type-A
    7. USB 2.0 Ports
    8. Audio Connectors
  • Dimensions :
    • Micro-ATX Form Factor
    • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
  • MOUNTING :

    8 mounting holes
