[B760M BOMBER WIFI] Motherboard, for Intel CPU, DDR5, LGA1700, Micro-ATX MB

Image 1
Image 2
Image 3
$214.78

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

Popular Products

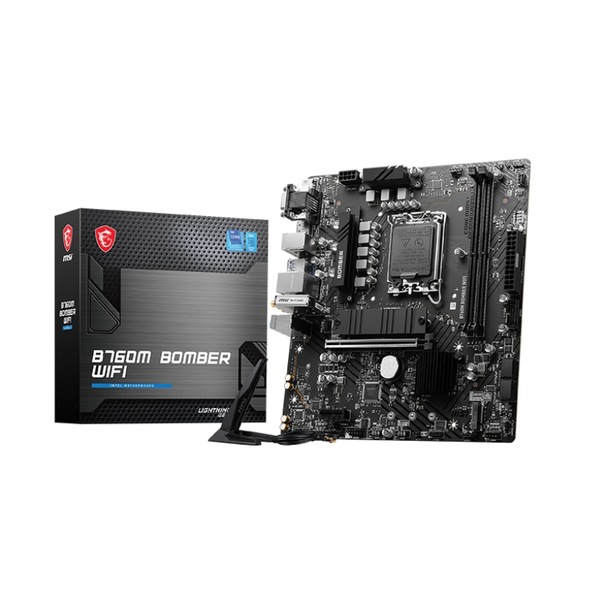

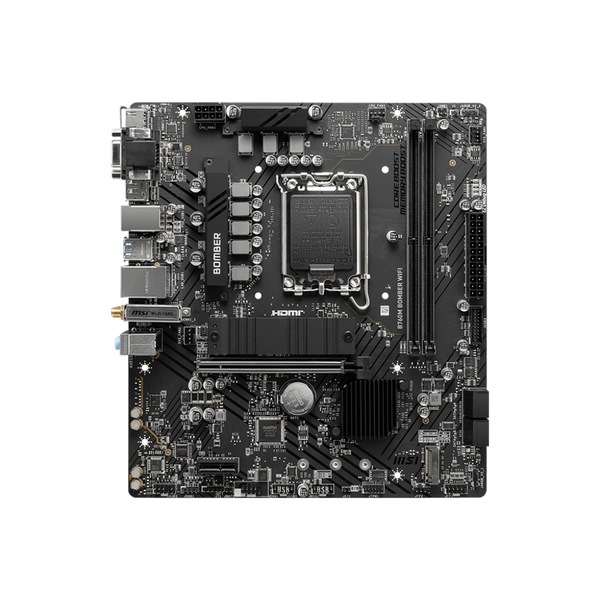

MSI B760M BOMBER WIFI

Features:
  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications:
  • Chipset :INTEL B760
  • CPU :Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
  • Memory :2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6400+ MHz
    • 1DPC 2R Max speed up to 5600+ MHz
    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
  • Onboard Graphics :1x HDMI™
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    1x D-Sub
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :1x PCI-E x16 slot (Qty)
    1x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
  • Audio :Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
  • Storage :2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G (Qty)
    * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB :2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
  • LAN :Realtek® RTL8125B 2.5Gbps LAN
  • Internal IO :1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
  • WIRELESS LAN & BLUETOOTH :Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3, FIPS, FISMA
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • LED FEATURE :4x EZ Debug LED

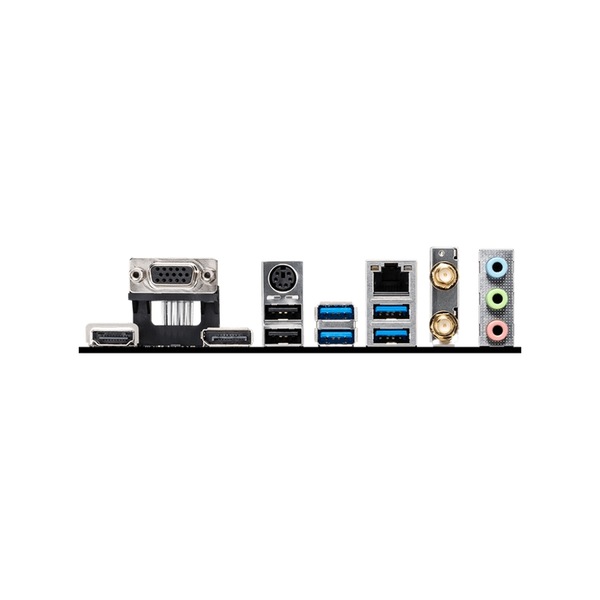

  • BACK PANEL PORTS :
    1. HDMI™
    2. VGA
    3. DisplayPort
    4. Keyboard / Mouse
    5. 2.5G LAN
    6. Wi-Fi / Bluetooth
    7. Audio Connectors
    8. USB 2.0
    9. USB 3.2 Gen 1 5Gbps (Type-A)
  • OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB Info :mATX
    220mmx243.84mm

SKU: WSC-965639539706

Reference ID: 13214877
