[B850I AORUS PRO] Gigabyte AMD Mini-ITX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$538.92

Collect 538 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

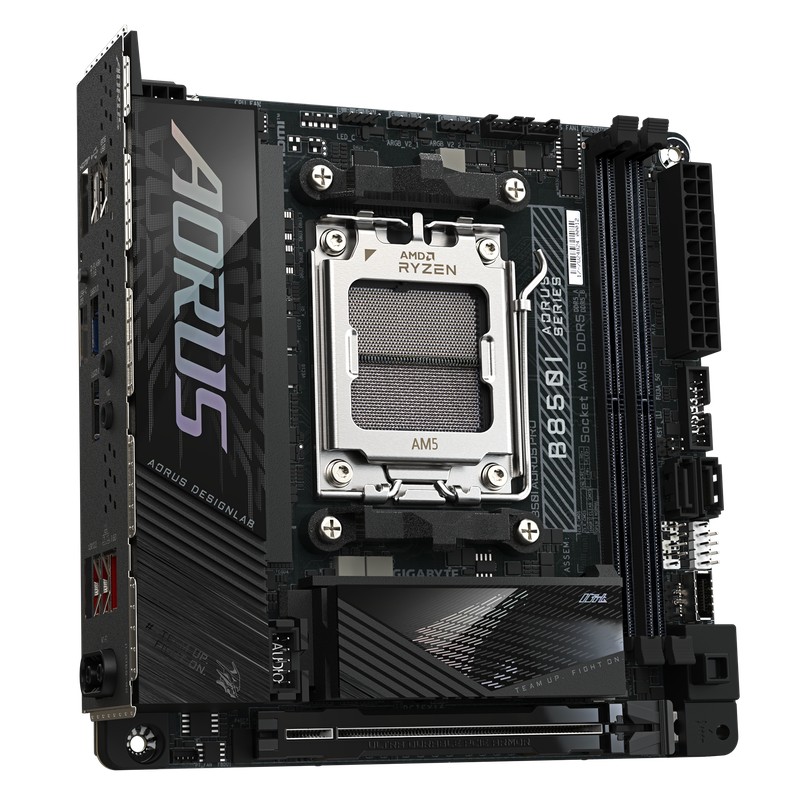

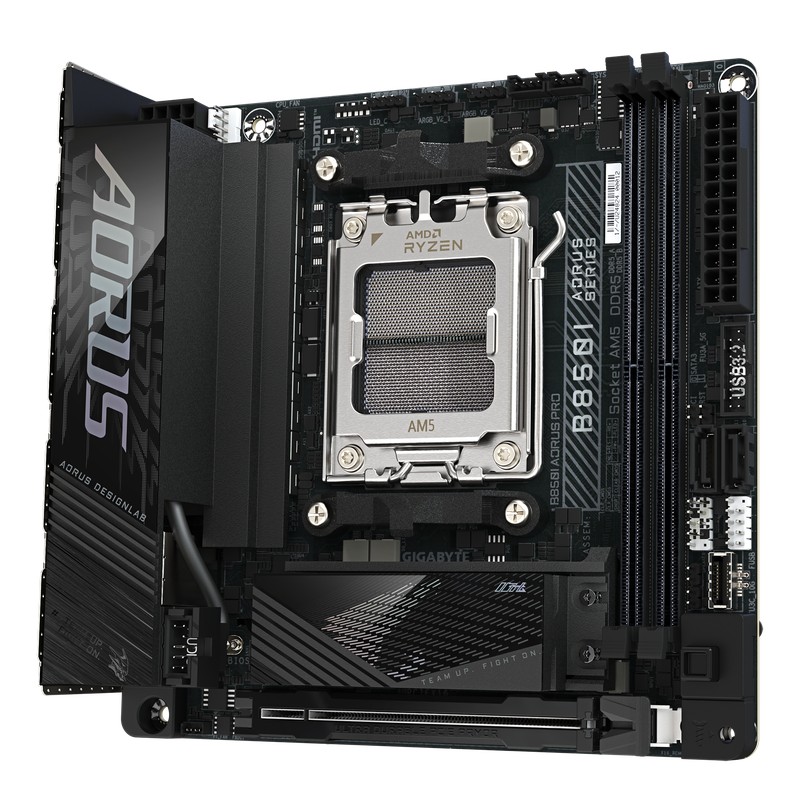

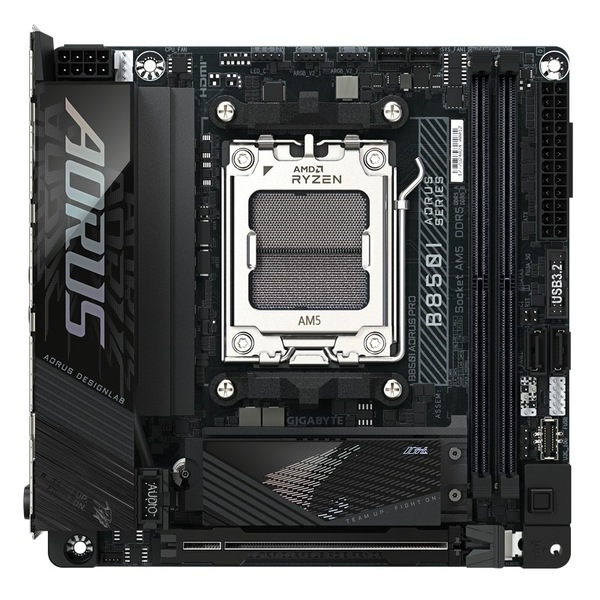

Gigabyte B850I AORUS PRO AMD Mini-ITX Motherboard

Gigabyte B850I AORUS PRO (rev. 1.1) - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

Features:
  • X3D Turbo Mode :Unleash new era gaming performance
  • DDR5 OC up to 8800MT/s
  • AMD Socket AM5 :Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+1 phases VRM solution
  • Dual Channel DDR5 :4*DIMMs with AMD EXPOMemory Module Support
  • WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus :PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click :M.2 heatsinks with screwless design
  • Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage :1*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
  • Fast Networking :2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity :HDMI
  • PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications:
  • CPU :AMD Socket AM5, support for:
    AMD Ryzen 9000 Series Processors/
    AMD Ryzen 8000 Series Processors/
    AMD Ryzen 7000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset :AMD B850
  • Memory :Support for DDR5 8800(OC)/ 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics :Integrated Graphics Processor with AMD Radeon Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio :Realtek ALC4080 CODEC
    High Definition Audio
    2-channel
  • LAN :Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :Realtek Wi-Fi 7 RTL8922AE
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  • Expansion Slots :1 x PCI Express x16 slot, integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  • Storage Interface :1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
    2 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen 9000 Series Processors.
    RAID 0 and RAID 1 support for SATA storage devices
  • USB :CPU:
    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset:
    - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    1 x system fan header
    2 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x speaker header
    1 x front panel audio header (routed from the adapter card on the rear panel)
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x reset jumper
    1 x Clear CMOS jumper
    1 x chassis intrusion header

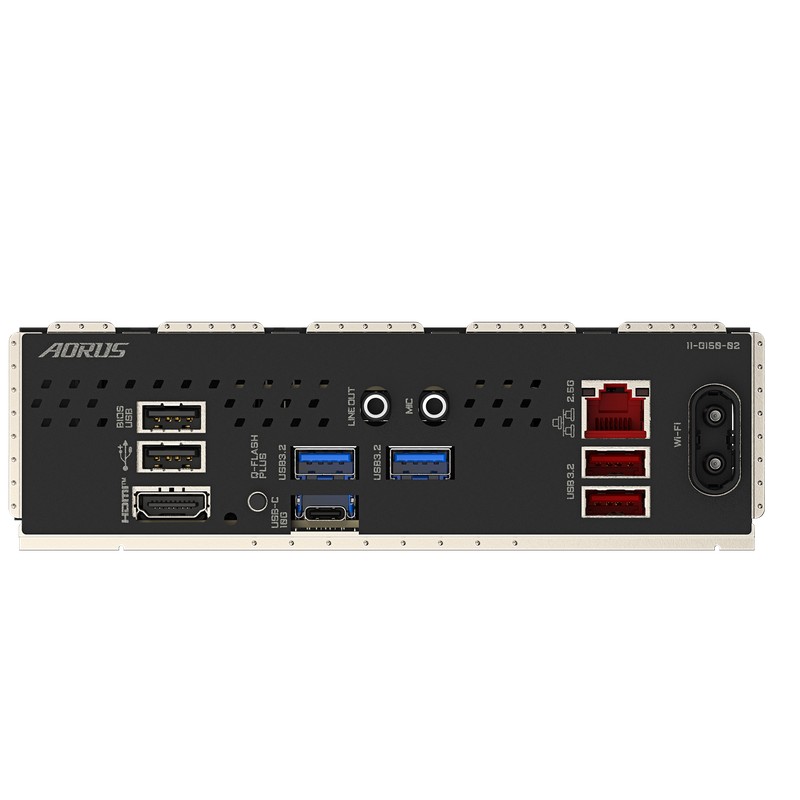

  • Back Panel Connectors :1 x Q-Flash Plus button
    1 x HDMI port*
    2 x antenna connectors (2T2R)
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    2 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    2 x audio jacks
    * Actual support may vary by CPU.
  • I/O Controller :iTE I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software :Norton Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System :Support for Windows 11 64-bit
  • Form Factor :Mini-ITX Form Factor; 17.0cm x 17.0cm

GTIN: 906425131094
