[B850M GAMING PLUS WIFI] MSI AMD Micro-ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$346.43

Collect 346 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

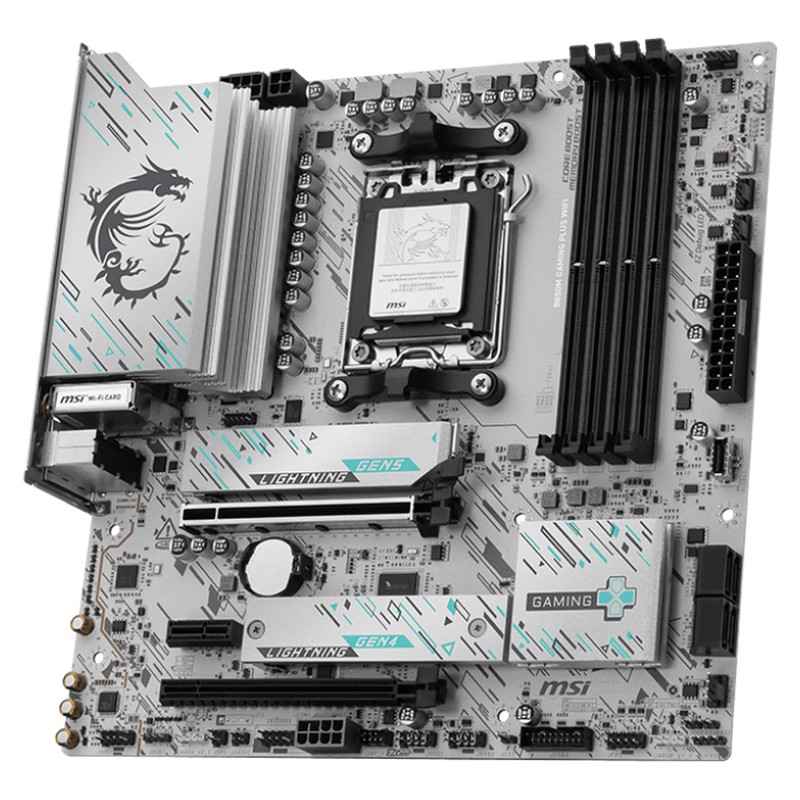

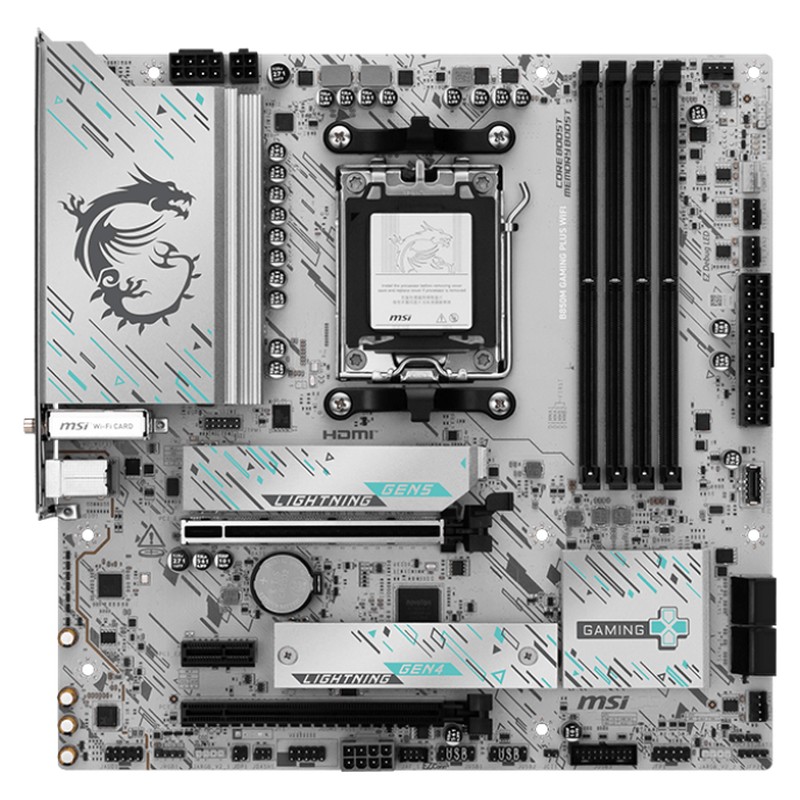

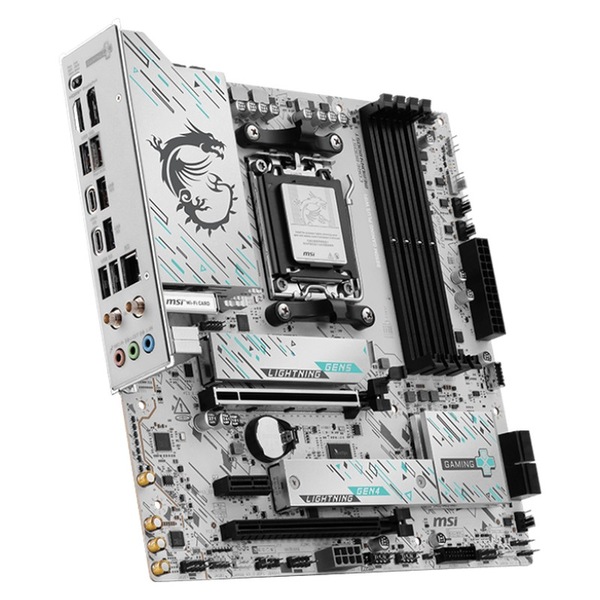

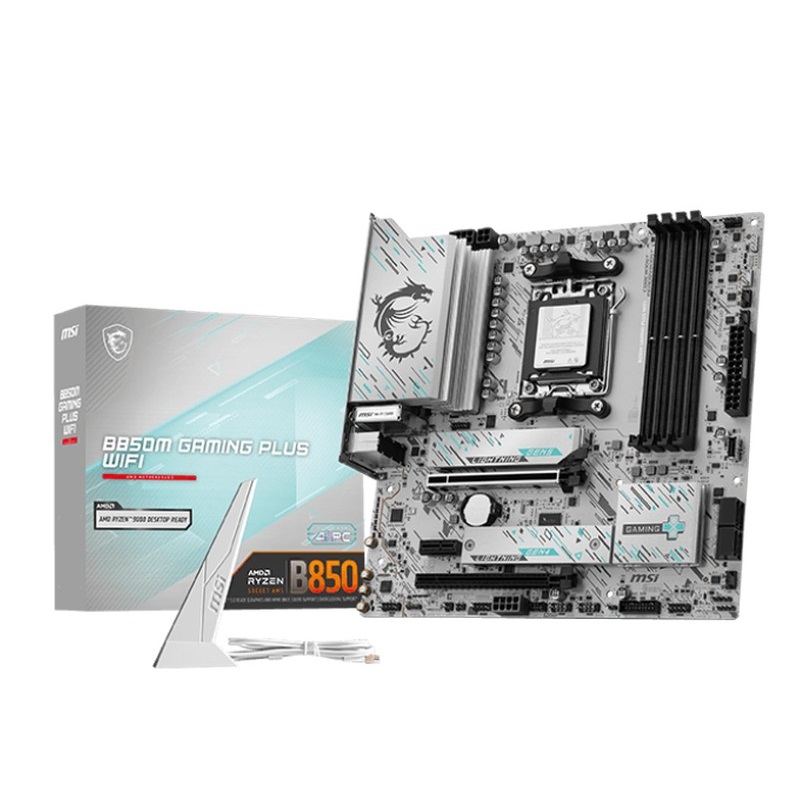

MSI B850M GAMING PLUS WIFI AMD Micro-ATX Motherboard

The B850M GAMING PLUS WIFI is a gaming oriented mATX motherboard that supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

Features:
  • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance:Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity:5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
  • EZ DIY:EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
  • Chipset :AMD B850
  • CPU :Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
  • Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen 9000 Series Processors max. overclocking frequency:
    1DPC 1R Max speed up to 8200+ MT/s
    1DPC 2R Max speed up to 6400+ MT/s
    2DPC 1R Max speed up to 6400+ MT/s
    2DPC 2R Max speed up to 6000+ MT/s
    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPO
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*
    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
  • Onboard Graphics :1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E1 slot
    Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
    Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
    Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
  • Audio :Realtek
    ALC8977.1-Channel High Definition Audio
  • Storage :2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    M2_1 slot
    Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
    M2_2 slot
    Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
    Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
    *Please refer to the manual for M.2 SSD heatsink restrictions.
  • RAID :Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB :4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)2x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)
  • LAN :Realtek
    8126 5G LAN
  • Internal IO :1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    3x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
  • WIRELESS LAN & BLUETOOTH :Wi-Fi 7 Solution
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth
    5.4**, MLO, 4KQAM
    * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  • LED FEATURE :4x EZ Debug LED
    1x EZ Memory Detection LED

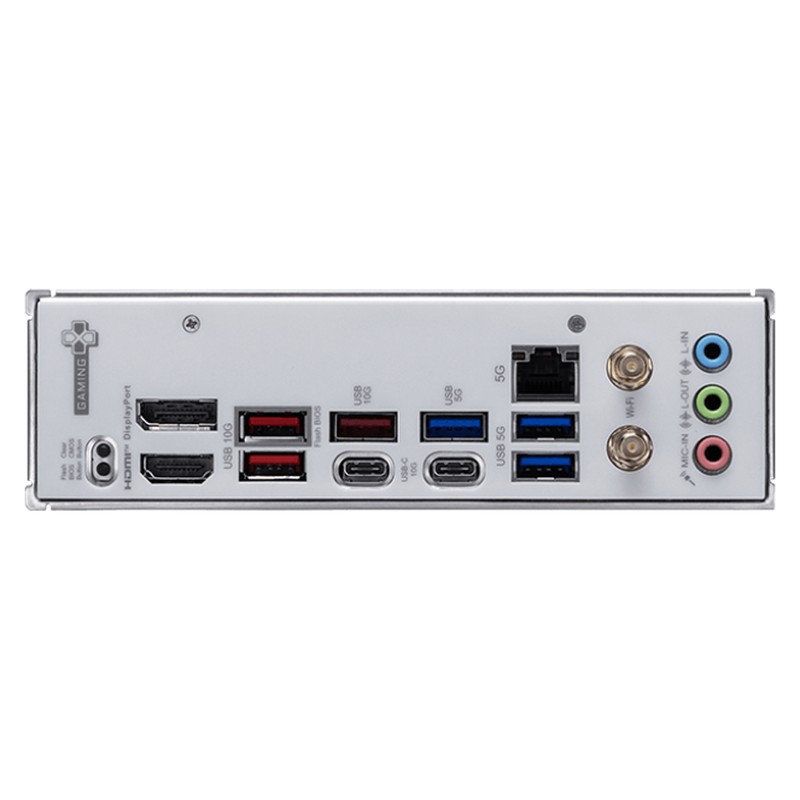

  • BACK PANEL PORTS :Clear CMOS Button
    DisplayPort 1.4
    USB 10Gbps (Type-A)
    USB 5Gbps (Type-A)
    5G LAN
    Wi-Fi / Bluetooth
    HD Audio Connectors
    Flash BIOS Button
    HDMI
    USB 10Gbps (Type-C)
  • OPERATING SYSTEM :Support for Windows
    11 64-bit
  • PCB Info :mATX
    243.84mmx243.84mm

GTIN: 906425131285
