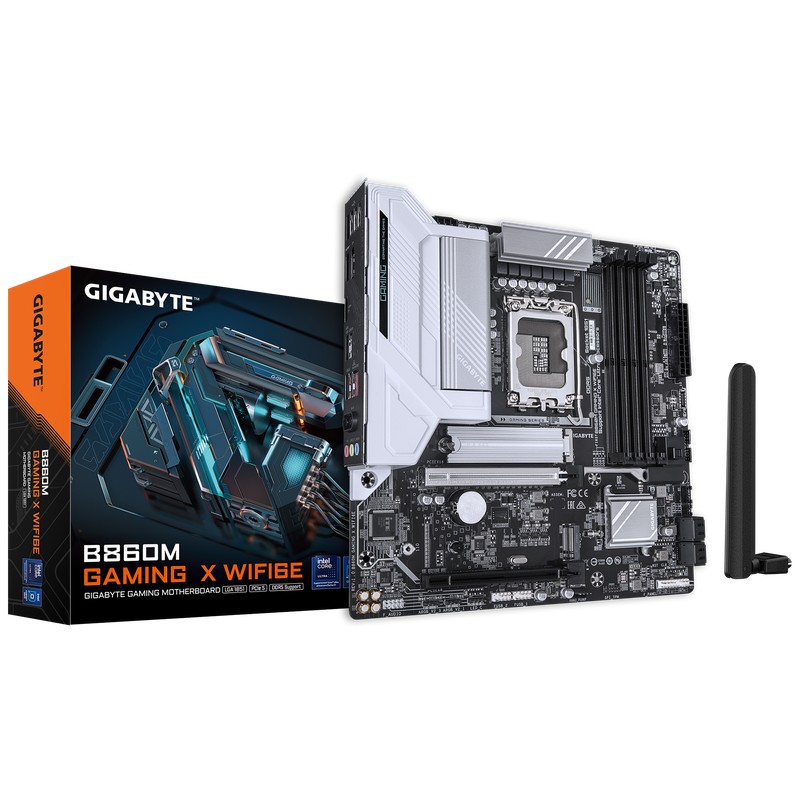

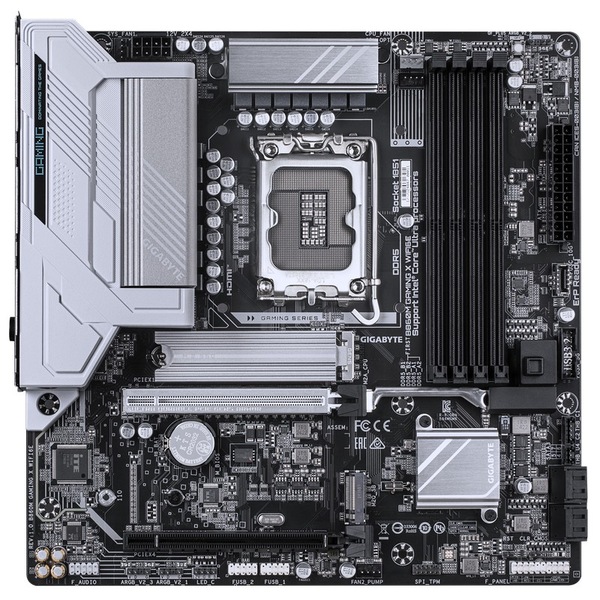

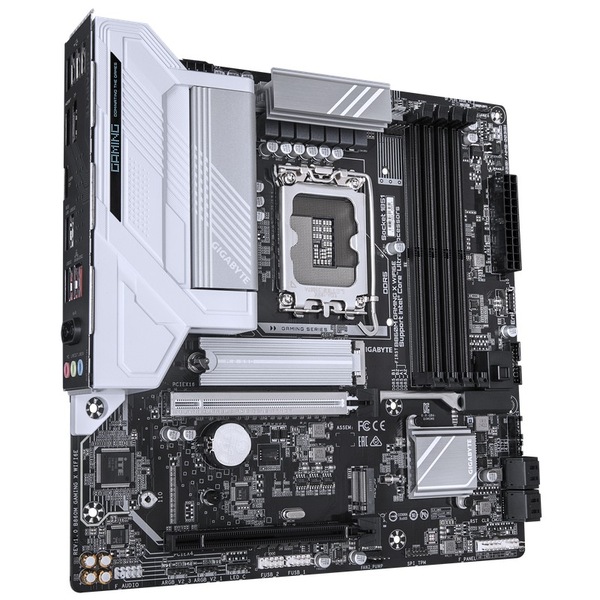

[B860M GAMING X WIFI6E] Gigabyte Intel Micro-ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Limited Stock
$329.39

Collect 329 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Gigabyte B860M GAMING X WIFI6E Intel Micro-ATX Motherboard

Gigabyte B860M GAMING X WIFI6E (rev. 1.0) - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

Features:
  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid Digital 8+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive :Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus :PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click :M.2 heatsinks with screwless design
  • Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage :2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking :2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity :USB4 Type-C with DP-Alt, HDMI, DisplayPort
Specifications:
  • CPU :LGA1851 socket: Support for Intel Core Ultra Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Chipset :Intel B860 Express Chipset
  • Memory :Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics :Integrated Graphics Processor-Intel HD Graphics support:
    - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 2.1 version.
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Audio :Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN :Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :Intel Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots :CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • Storage Interface :CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB :CPU:
    - 1 x USB4 USB Type-C port on the back panel
    Chipset:
    - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    1 x system fan header
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

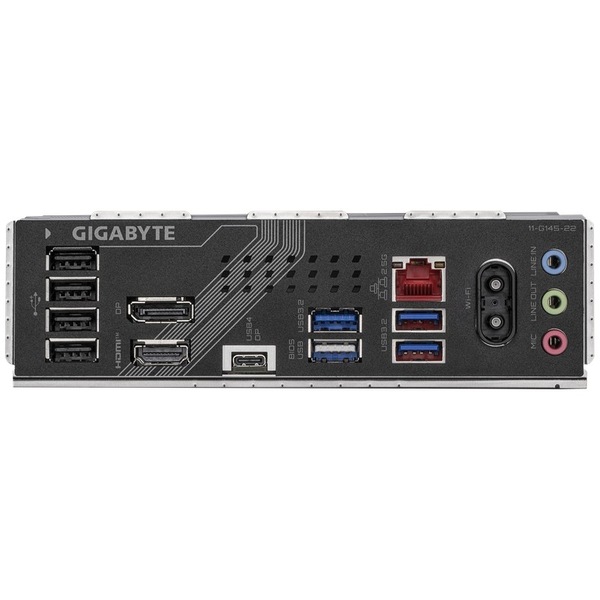

  • Back Panel Connectors :1 x HDMI port (Note)
    1 x DisplayPort (Note)
    1 x USB4 USB Type-C port (DisplayPort (Note))
    3 x USB 3.2 Gen 1 ports
    5 x USB 2.0/1.1 ports
    2 x antenna connectors (2T2R)
    1 x RJ-45 port
    3 x audio jacks
    (Note) Actual support may vary by CPU.
  • I/O Controller :iTE I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software :Norton Internet Security (OEM version)
    LAN bandwidth management software
  • Form Factor :Micro ATX Form Factor; 24.4cm x 24.4cm

GTIN: 906425131193
