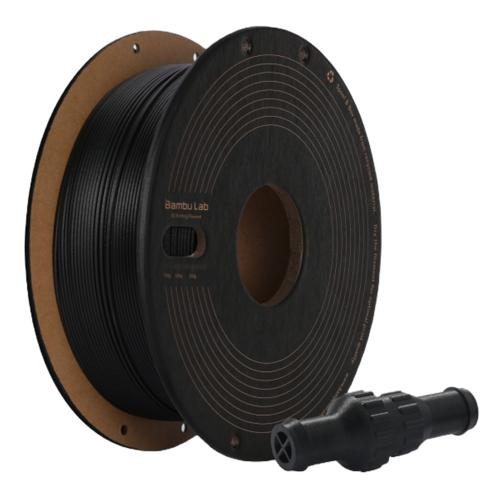

Bambu Lab Filament PPS-CF Black 76100 1.75mm, 0.75kg, Top-tier Flame Retardancy, Ultra-High Heat Resistance [T02-K0-1.75-750-SPL]

Image 1
Image 2
Hurry! 4 items left!
$240.90

Collect 240 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Bambu Lab Filament PPS-CF Black 76100 1.75mm, 0.75kg, Top-tier Flame Retardancy, Ultra-High Heat Resistance

Bambu PPS-CF
PPS-CF is a composite material made from carbon fiber-reinforced polyphenylene sulfide. The combination of PPS resin and carbon fiber gives PPS-CF exceptional properties, including excellent resistance to solvents, corrosion, heat, and flames. Additionally, it offers superior strength, stiffness, and dimensional stability, making it a specialized engineering plastic that meets the demands of unique and challenging applications.

Ultra-High Heat Resistance
PPS-CF boasts a heat deflection temperature of up to 264°C under 0.45 MPa and can continuously operate at temperatures exceeding 200°C. This significantly outperforms normal PA-CF materials, which have maximum temperatures around 190°C and 120°C. Its exceptional heat resistance ensures outstanding creep resistance, making PPS-CF ideal for demanding industrial environments and applications.

Unmatched Mechanical Properties
Combining the stiffness of PPS polymers with the reinforcing power of carbon fiber, PPS-CF offers exceptional stiffness, bending strength, and tensile strength. Its superior dimensional stability and resistance to warping ensure that large-scale prints maintain precision and avoid deformation during the printing process, making it perfect for high-precision applications.

Accessory Compatibility

Solvent and Chemical Resistance
PPS-CF offers outstanding solvent and chemical resistance, second only to PTFE (Teflon). It remains virtually insoluble in any solvent below 200°C and exhibits exceptional resistance to acids, bases, and salts under normal conditions. This makes PPS-CF the ideal choice for challenging environments where chemical stability is critical.
Ultra-Low Water Absorption
With an extremely low moisture absorption rate of just 0.05%, PPS-CF ensures that its mechanical and thermal properties remain stable even in humid conditions. Unlike normal PA-CF, which can soften and degrade when exposed to moisture, PPS-CF maintains its strength and durability, making it the superior option for applications requiring high moisture resistance.
Storage Tips
Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
Bambu PPS-CF Printing Guidelines
- Nozzle Temperature: Recommended range is 310 to 340°C.
- Chamber Temperature: Recommended range is 60 to 90°C.
- Tip: Using higher values within these ranges can enhance the mechanical properties of the printed parts, especially in the Z-direction.
Drying Recommendations
- Drying Temperature: In a blast drying oven: 100°C to 140°C for 8 to 12 hours.
- On an X1 printer's heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).
- Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.

Recommended Printing Setting
Drying Settings before Printing
100 - 140 °C, 8 - 12 h
Printing and Keeping Container's Humidity
< 20% RH (Sealed, with Desiccant)
Nozzle Temperature
310 - 340 °C
Bed Temperature (with Glue)
100 - 120 °C
Printing Speed
< 100 mm/s
Physical Properties
Density
1.26 g/cm³
Vicat Softening Temperature
268 °C
Heat Deflection Temperature
264 °C
Melting Temperature
284 °C
Melt Index
11.48 ± 1.23 g/10 min
Mechanical Properties
Tensile Strength
87 ± 5 MPa
Breaking Elongation Rate
1.2 ± 0.4 %
Bending Modulus
7160 ± 280 MPa
Bending Strength
142 ± 5 MPa
Impact Strength
27.8 ± 2.3 kJ/m²
- MPN: T02-K0-1.75-750-SPL

GTIN: 6975337038283
