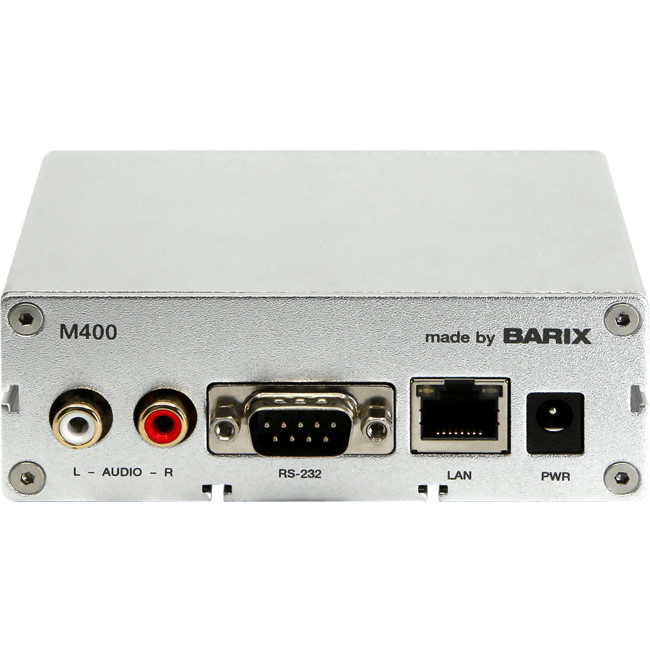

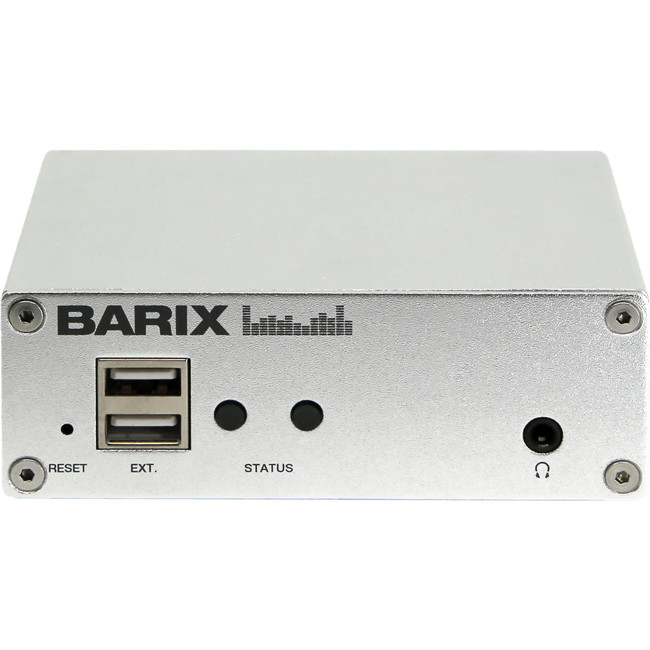

Barix BAR20239437 M400 Multicoder-Low-latency Audio over IP Encoder
AAC+ and OPUS with latest Security

The Barix Multicoder M400 boasts up to four internal encoding engines, capable of simultaneous operation, each supporting various audio formats.With support for streaming protocols RTP and BRTP, it can achieve exceptionally low latency. This device can encode incoming audio from connected analog sources into formats like OPUS, AAC+. The Multicoder M400 is purpose-built for low-latency applications and leverages a new Linux-based platform to provide robust security features, including HTTPS for the setup of the device.


Specifications

Power Supply Input
  • External power adaptor: 100-240V AC, 10W
  • Male barrel connector: 5.5mm × 2.1mm
Ethernet InterfacesRJ45, 10/100 auto detect, IPv4, IPv6
Audio Input
  • Stereo RCA / cinch connectors (also mono configurable)
    2k input impedance 3.9V p-p max, adjustable in sensitivity
  • Dynamic range 87dB, SNR −87dB control and metadata input support
Audio Formats
  • OPUS, AAC+ (AAC-HC and AAC-LC)
  • MP3
  • PCM
  • G.711
  • Sample rates: 8/16/22.05/24/32/44.1/48Khz
  • Supported bit rates: 32kb/s to 320 kb/s
Network Protocols
  • Set-up: HTTP/HTTPS
  • Streaming: RTP, BRTP (requested RTP)
Headphone OutputFemale Jack 3.5mm
USB2 extension ports for USB devices (for future use)
RS-232DB-9, currently not in use
HW/SW Environment
  • Barix IPAM400 Processor Module
  • Linux with dual boot recovery and remote firmware update capability
User Interface
  • Network interface for control, status and setup
  • HW reset button, LED for status
Case & Weight
  • Aluminum
  • 108mm × 38mm × 78.7mm (4.25″ × 1.5″ × 3.1″)
  • Weight 250g
MTBF>199.951h / 22 years
