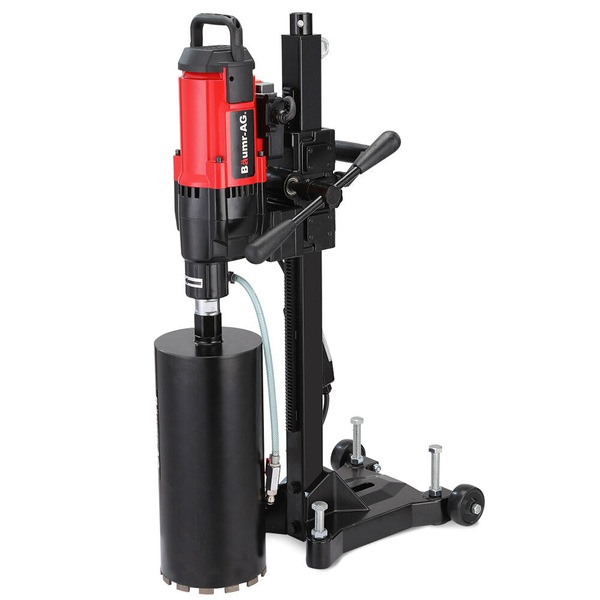

BAUMR-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 127mm Bit Combo, for Concrete Coring Hole Drilling

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
$635
RRP $1097

Collect 635 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Edisons Direct
Secure ways to pay at checkout
Pay in 4 interest-free payments of $158.75 with Learn More

Take on demanding drilling tasks with this high-performance Baumr-AG Diamond Core Wet/Dry Drilling Machine with Wheeled Stand & 127mm Drill Bit Combo. Featuring a powerful 3200W motor and 20-280mm max drilling capacity, you’ll cut through reinforced concrete, red brick, and granite with ease.

The adjustable wheeled stand provides stability and precision, mounting from 0-90 degrees for versatile positioning. Built to last, its IP54-rated aluminium construction ensures durability in harsh conditions.

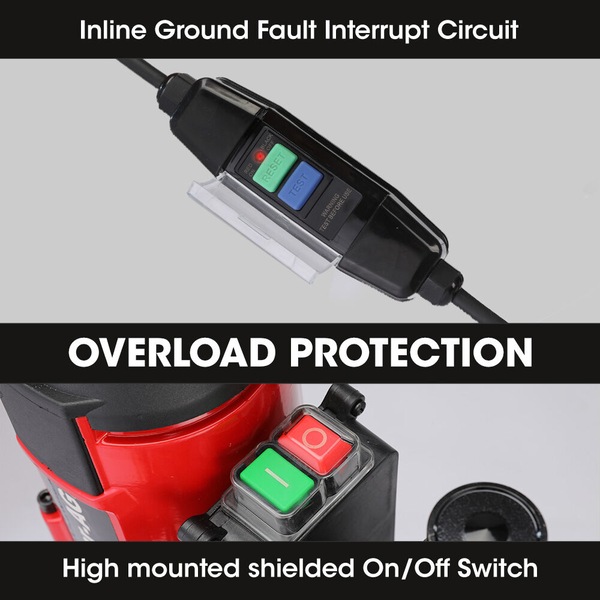

Designed for professionals, this rig offers safety-enhancing features like an automatic slip-clutch, inline circuit interrupt switch, and double insulation for operator protection.

Buy Smart. Buy Baumr-AG.

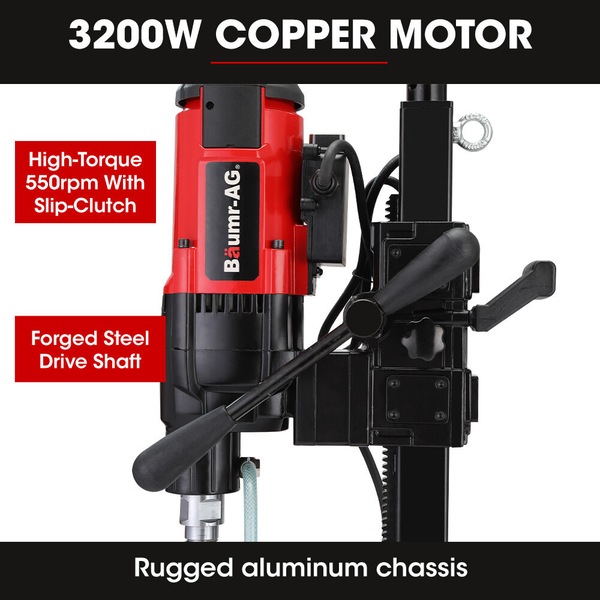

  • Heavy-duty 3200W commercial-grade motor for consistent power
  • 280mm maximum drilling diameter
  • Includes 127mm diamond core drill bit for reinforced concrete, red brick, and granite

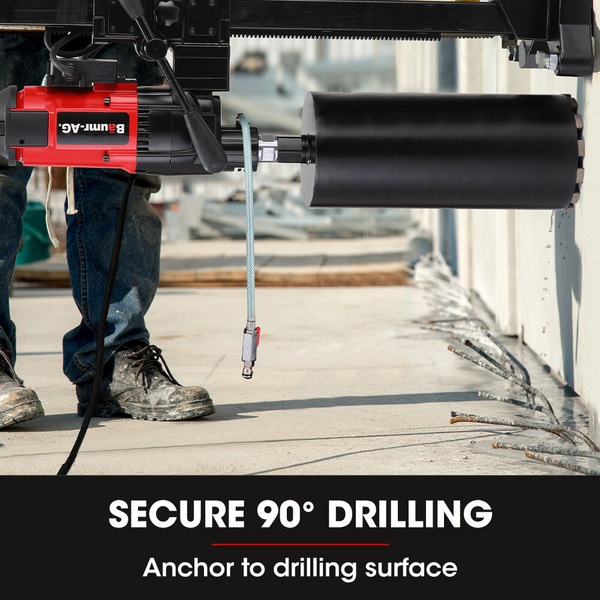

  • Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling

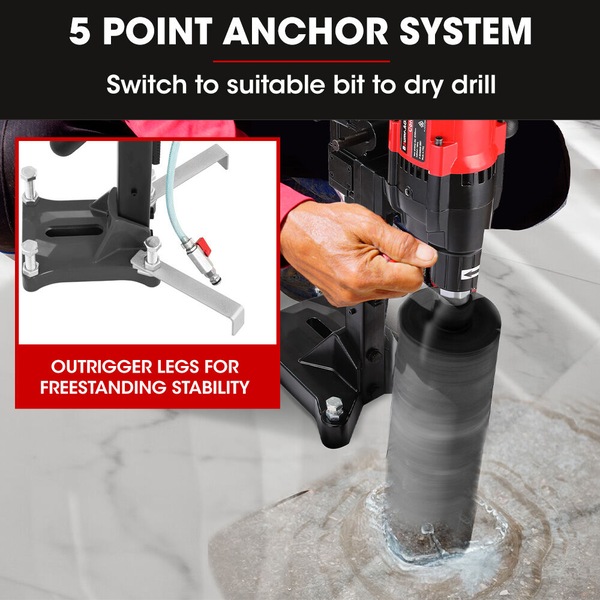

  • Wheeled base for effortless positioning and stability
  • Copper motor for high reliability
  • Slip-clutch system prevents overload and sudden bit seizing
  • 550 RPM single speed for smooth and controlled drilling
  • IP54 rating for dust protection and splash resistance
  • Aluminium construction for durability in tough environments
  • Steel-forged drill shaft ensures long-lasting performance

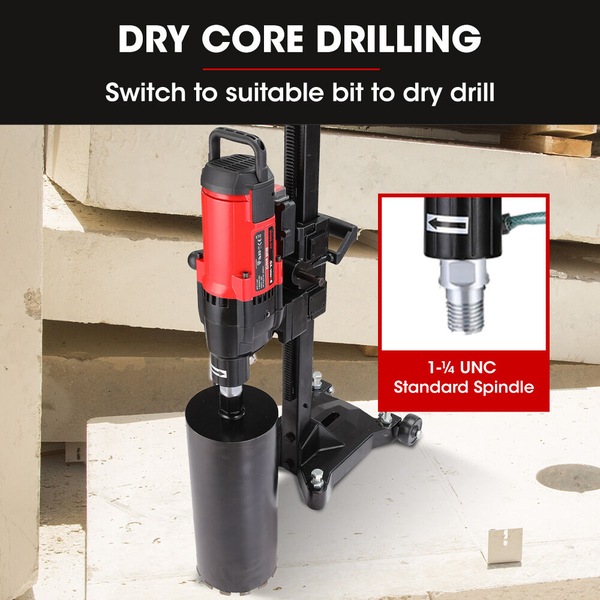

  • 1 ¼ inch UNC standard-sized spindle thread

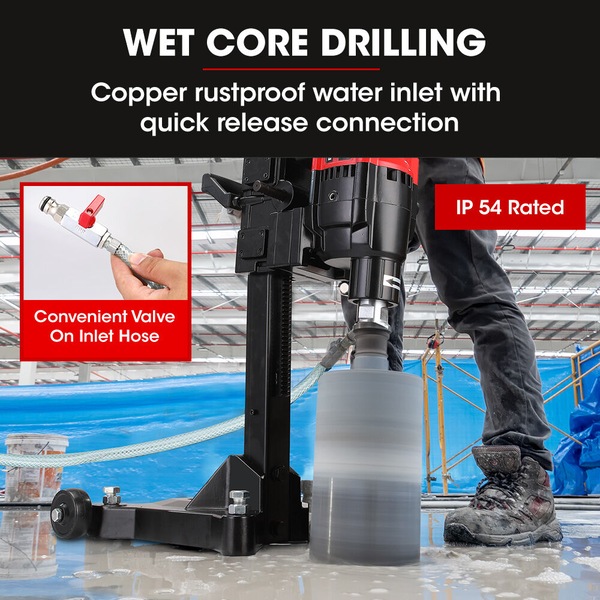

  • The copper water inlet is corrosion proof
  • Non-slip handle for a secure grip and fatigue reduction
  • Double insulation for motor and operator protection

Specifications:

  • 280mm Core Drill
  • Input Power:240V 50Hz AC
  • Rated Output Power:3200W

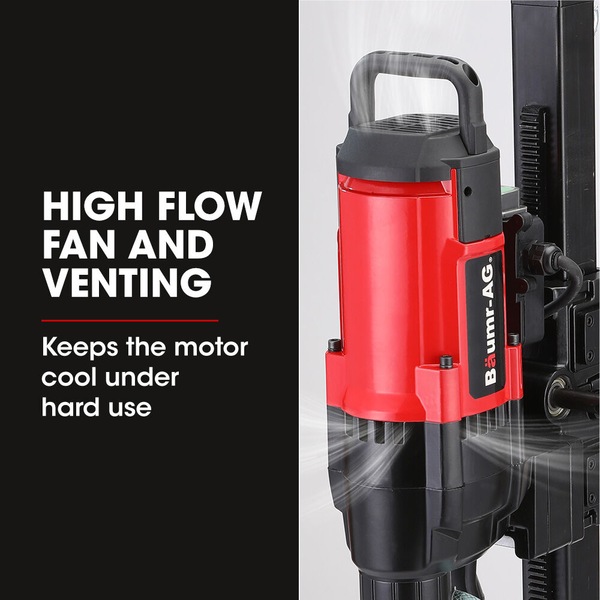

  • Cooling method:Air
  • No load speed:550r/min
  • Speeds:1
  • Drilling Diameter Range:20-280mm
  • Spindle Thread:1-1/4" UNC
  • Coring Type:Wet/Dry Coring
  • Construction Material:
  • Drill:Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor

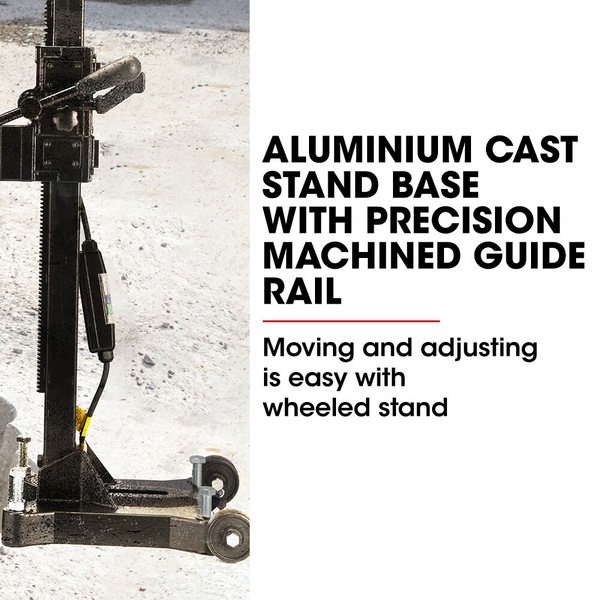

  • Stand:Aluminium Guide Rail, Steel Base
  • IP Rating:IP54
  •
  • Diamond Core Drill Bit - 127mm
  • Cutting Diameter:127mm
  • Length:10mm
  • Type:Hole Cutter
  • Featured Refinements:Hole Saw
  • Shaft Material:Commercial Grade Steel
  • Cutting Teeth Material:Diamond/Steel Blend
  • Thread SIze:1 1/4 UNC
  • Cutting Teeth Length:10mm
  • Threaded Connection:1 1/4 UNC
IN THE BOX
  • 1 x Baumr-AG Core Drill
  • 1 x Drill Rig (Assembly Required)
  • 1 x Baumr-AG Diamond Core Drill Bit
  • Note: User Manual is accessible online
SIZE & WEIGHT
  • 280mm Core Drill with Stand

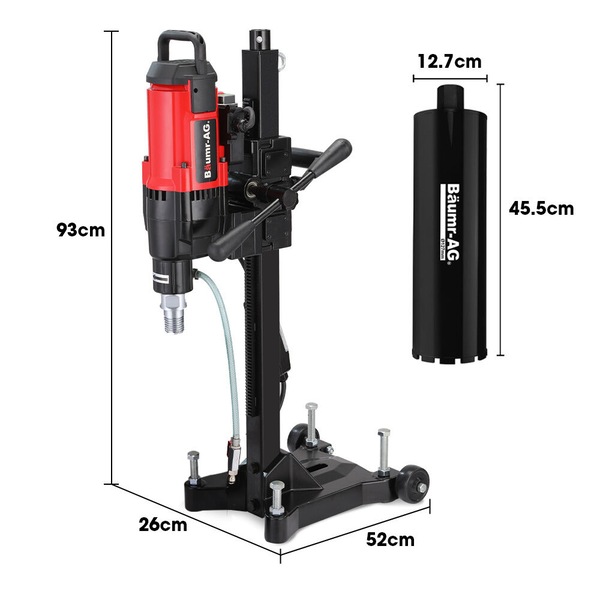

  • Product Dimensions (W x D x H): 260 x 520 x 930mm
  • Product Weight: 28kg
  • Carton Dimensions (W x L x H): 320 x 100 x 440cm
  • Carton Weight: 32kg
  •
  • Diamond Core Drill Bit - 127mm
  • Product Dimensions: φ127mm x L455mm
  • Product Weight: 3.5kg
  • Carton Dimensions (W x L x H): 44 x 14 x 13cm
  • Carton Weight: 4kg

GTIN: 9348948129850
