BBT 4" DC Solar Submersible/Bore Pump With Controller - 1500W - 11,500L/h - 100m Head

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 1 items left!
$1599

Collect 1599 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Bigger Boyz Toyz Australia
Secure ways to pay at checkout

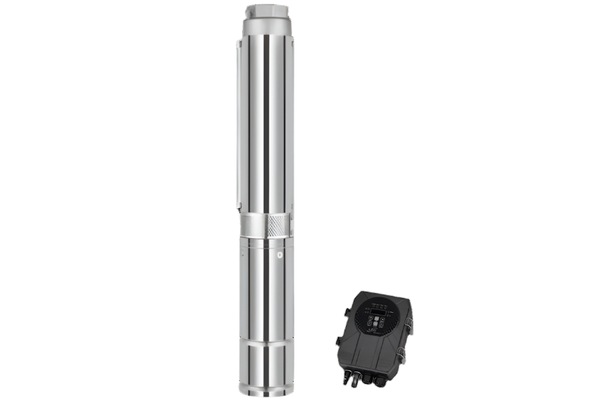

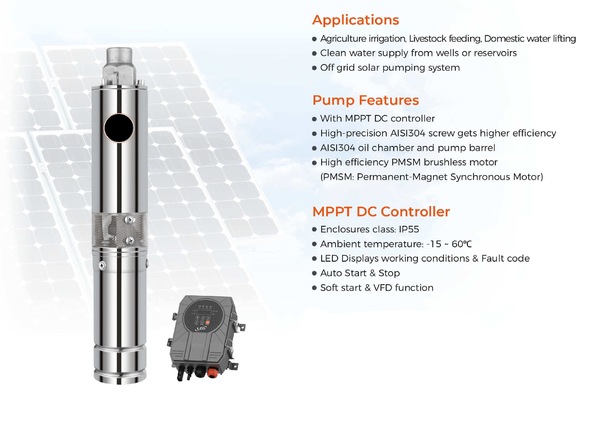

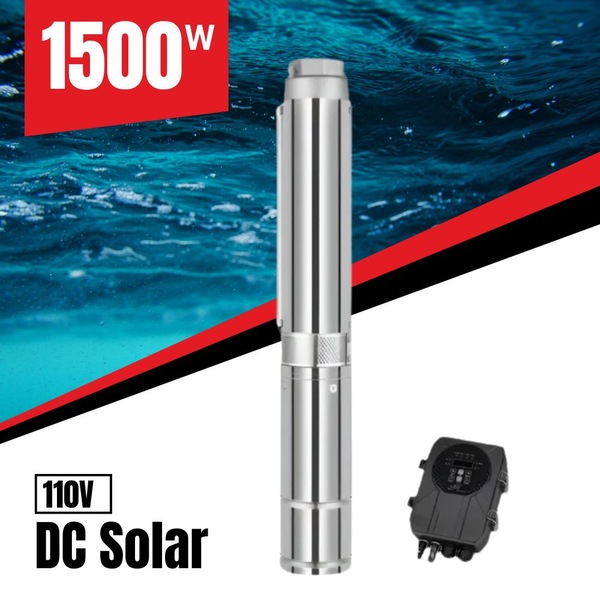

BBT 4" LDP DC Solar Submersible/Bore Pump With Controller - 1500W | 11,500L/h | 100m Head



Reliable and Sustainable Water Pumping for Remote Locations



Engineered for durability and built to last, the BBT 4" LDP DC Solar Submersible Bore Pump delivers high-capacity water transfer where grid power is unstable or unavailable. Designed for deep wells and remote sites, this 1500 W solar-driven pump integrates seamlessly with the DSDP-110V controller to ensure consistent performance under fluctuating solar conditions.



Key Features:






  • Rugged, Maintenance-Free Construction


  • Durable, corrosion-resistant housing designed for long-term outdoor use.


  • High-strength components withstand harsh environments with minimal upkeep.


  • High-Performance Solar Pumping


  • Power: 1500 W DC motor optimized for solar energy systems.


  • Maximum Flow: 11,500 L/h - rapid delivery for demanding irrigation and water-lifting tasks.


  • Maximum Head: 100 m - ideal for deep borehole and elevated applications.


  • DSDP-110V Controller Integration


  • Input Voltage: 110 V DC / Output Voltage: 110 V AC


  • MPPT-enabled control maximizes solar power harvest and protects against voltage fluctuations.


  • Built-in safety features: overvoltage, undervoltage, overload, and short-circuit protection.




Recommended Applications:






  • Agricultural irrigation systems


  • Livestock watering in remote pastures


  • Domestic water supply for off-grid homes


  • Solar-powered borehole


  • reservoir pumping




Specifications:






  • Model: 4LDP11.5-100-110-1500


  • Power: 1500 W DC


  • Maximum Flow Rate: 11,500 L/h


  • Maximum Head: 100 m


  • Controller: DSDP-110V (DC 110 V - AC 110 V)

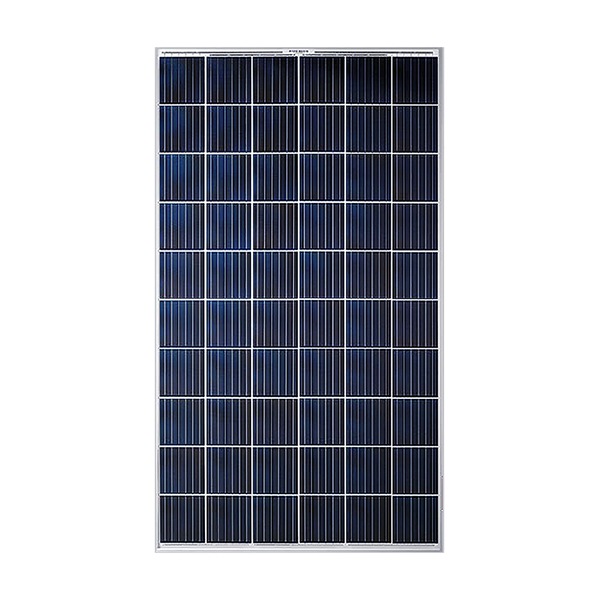

Solar Panel Requirements:






  • Number of Panels: 3 (connected in series)


  • Panel Wattage: 670 W each


  • Vmp: 41.49 V per panel - Total Vmp: 124.47 V


  • Voc: 50.16 V per panel - Total Voc: 150.48 V




Resulting System Parameters:






  • Total Power Output: 3 x 670 W = 2,010 W


  • Series Voltage @ Vmp: 3 x 41.49 V = 124.47 V


  • Series Open-Circuit Voltage: 3 x 50.16 V = 150.48 V




Reliable. Efficient. Solar-Powered.



Experience uninterrupted water delivery and reduced operating costs with the BBT 4" LDP DC Solar Submersible Bore Pump - your trusted choice for sustainable, off-grid pumping solutions.



Included in the Box:






  • 1x 4" DC Solar Submersible/Bore Pump


  • 1x DSDP-110V Pump Controller




Solar panels not included



Box Size: 1200mm x 250mm x 150mm

MPN: 4LDP11.5-100-110-1500
