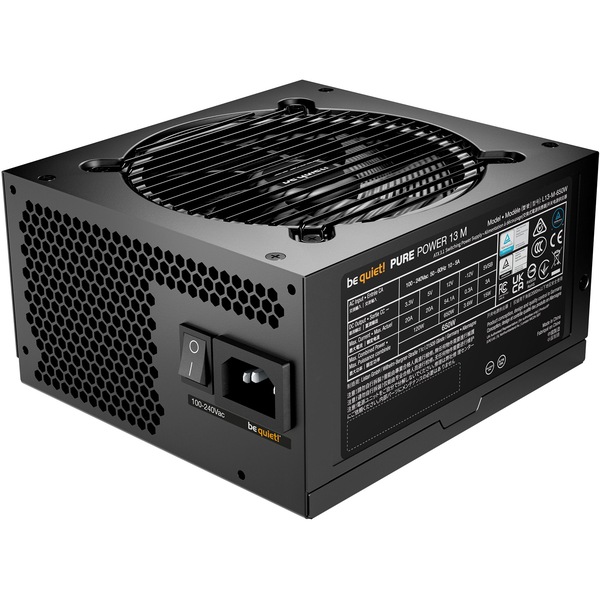

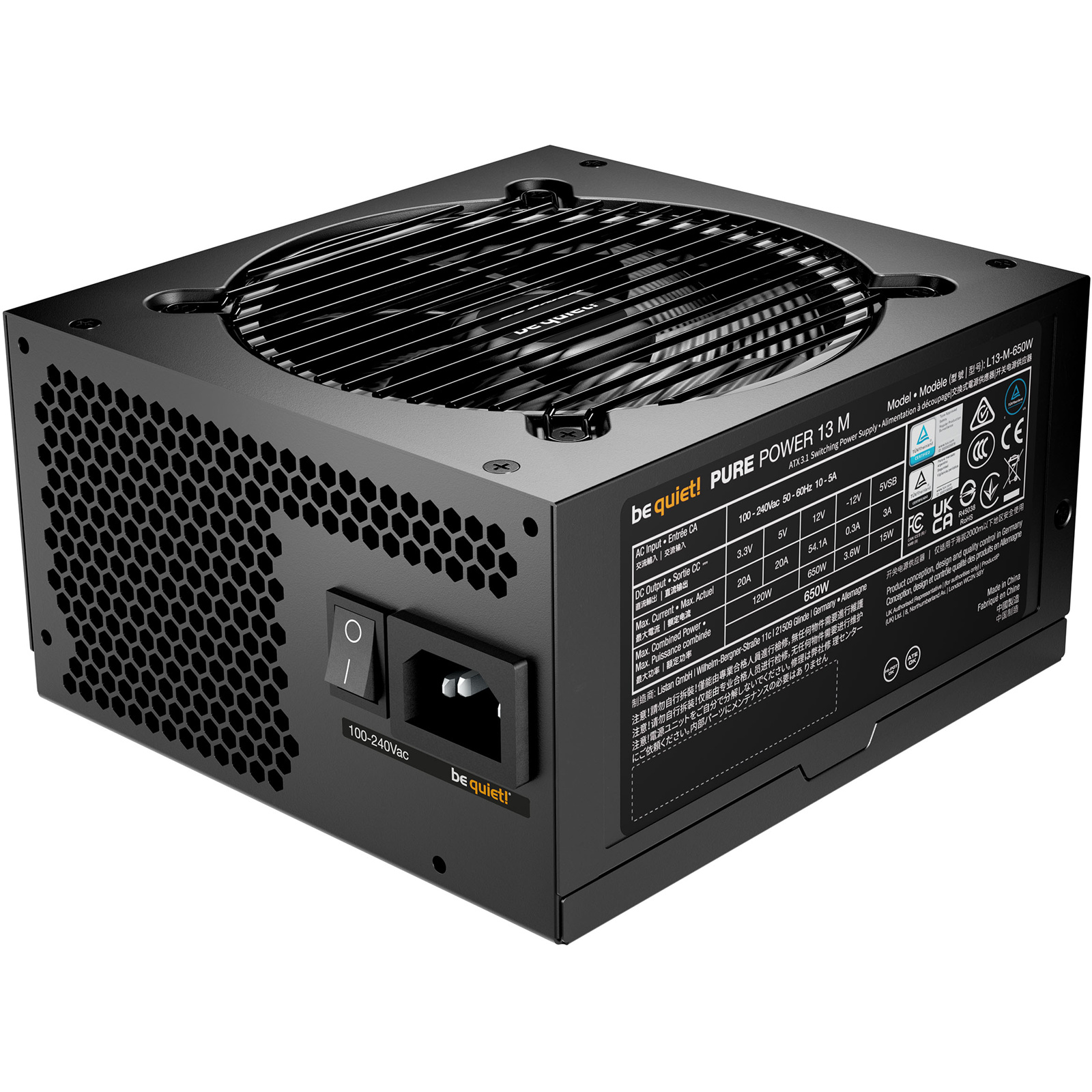

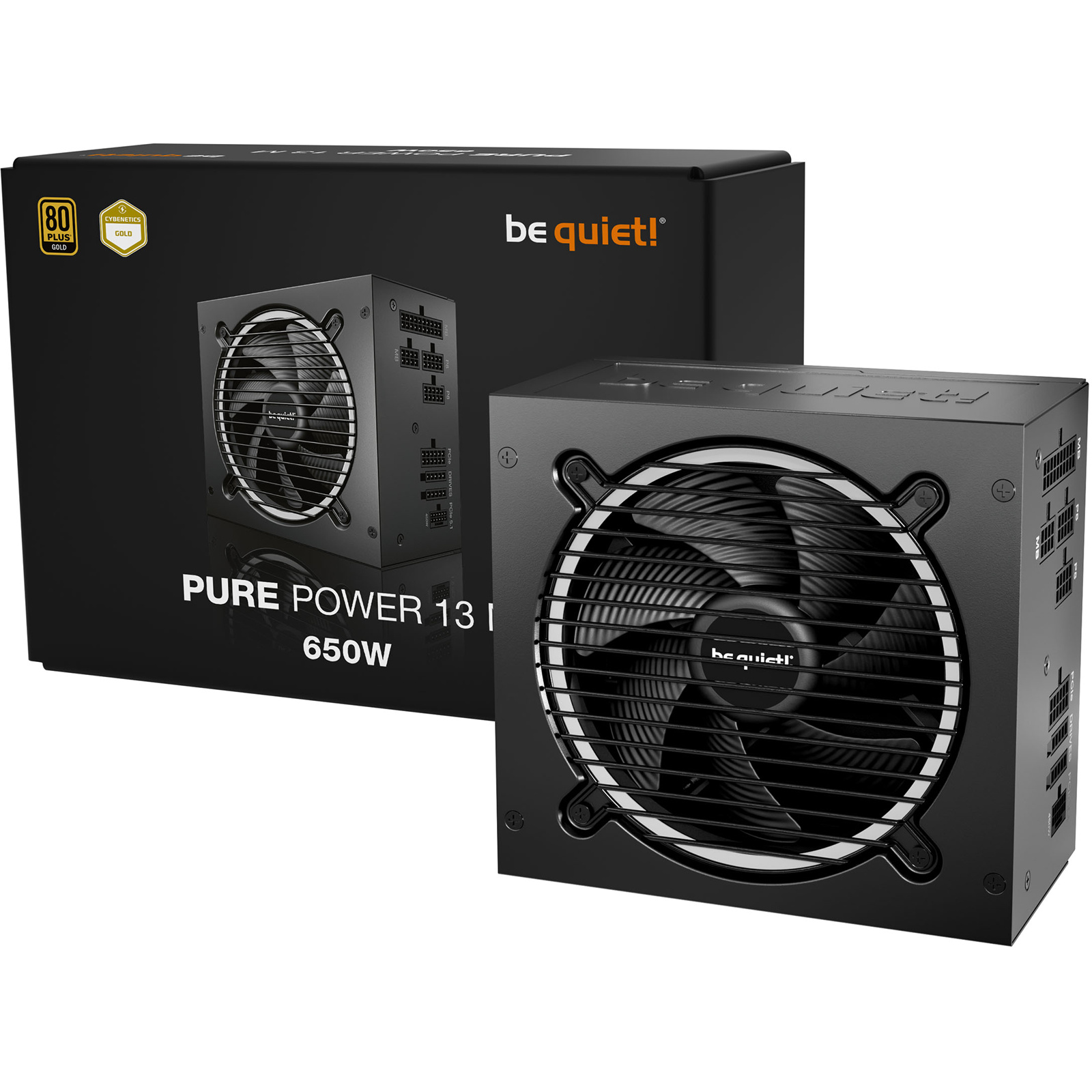

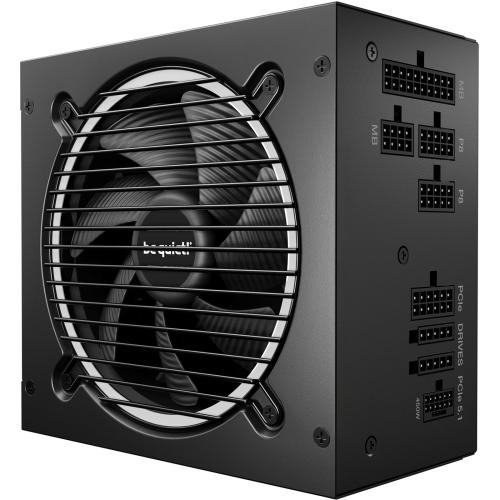

be quiet Pure Power 13 M 650W Power Supply 80 Plus Gold - ATX 3.1 - PCIe Gen 5 Ready - 10 Years Warranty

PURE POWER 13 M 650W - Exceptional quiet, superior features
Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 94.2%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for high-end GPUs
80 PLUS® GOLD CERTIFIED - Very high operating efficiency
Pure Power 13 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.2%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 650W is always the correct choice for quiet systems and gaming PCs!


FUTURE-PROOF YOUR SYSTEM - Fulfills all ATX 3.1 specifications
Pure Power 13 M 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 2 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.


THE NEW STANDARD OF POWER - For massive transient loads
Pure Power 13 M offers 650W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.


SEMI-PASSIVE ZERO-RPM COOLING - Enjoy the silence
While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 650W exceptionally silent in all load scenarios.


HIGH-CLASS TECHNOLOGIES - Rock-solid stability
With its LLC topology Pure Power 13 M 650W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.

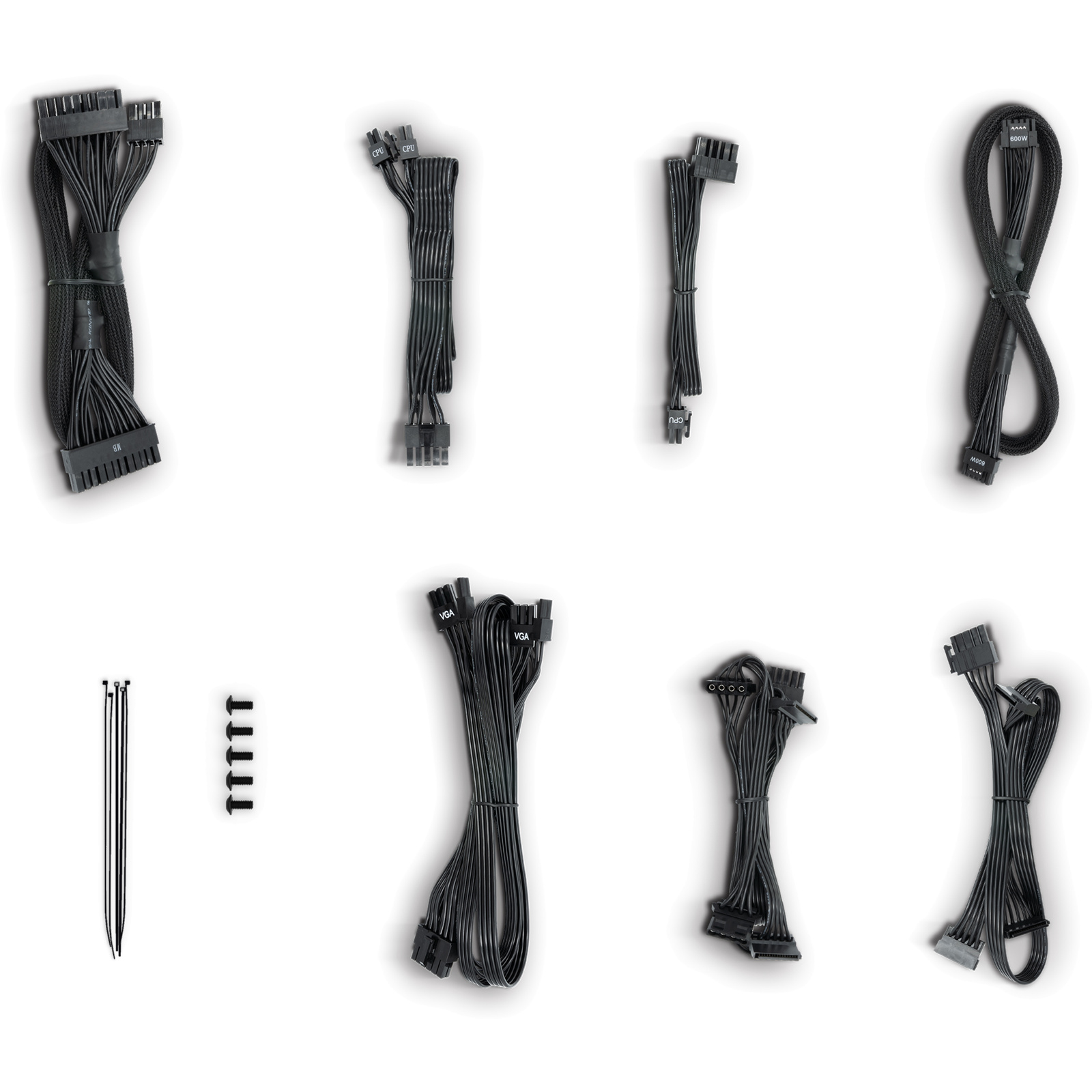

MODULAR CABLES - Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

General data
Model Pure
Power 13 M 650W
Continuous power (W)
650
Peak power (W)
720
Form factor
Version 3.1
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
10 / 5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Gold
Efficiency (%) at 230V, 2% load
71.1
Efficiency (%) at 230V, 10% load
90.0
Efficiency (%) at 230V, 20% load
93.1
Efficiency (%) at 230V, 50% load
94.2
Efficiency (%) at 230V, 100% load
92.8
Fan and cooling technology
Cybenetics Noise Rating
-
Fan
Silence-optimized be quiet! fan
Fan size (mm)
120
Bearing technology
Rifle
Motor technology
4-pole fan motor
Max. fan speed (rpm)
1800
dB(A) at 10% load
7.2
dB(A) at 20% load
7.3
dB(A) at 50% load
8.4
dB(A) at 100% load
15.9
Output
Multi-rail operation (12V rails)
-
12V single rail operation
Yes
Overclocking key
-
+3.3V (A)
20
+5V (A)
20
+12V1 (A)
54.1
+12V2 (A)
N/A
+12V3 (A)
N/A
+12V4 (A)
N/A
+12V5 (A)
N/A
+12V6 (A)
N/A
-12V (A)
0,3
+5Vsb (A)
3
Max. combined power 12V (W)
650
Max. combined power 12V-2x6 (W)
450
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
22.5
Hold-up time at 80% load (ms)
30.66
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
Yes
Sleeved cables
Yes
Flat cables
Yes
Maximum cable length (cm)
95
Cable length to motherboard (cm)
55
No. of cables
7
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
-
P4 (CPU)
1
12V-2x6 cables
1
PCI-e 6+2-pin (GPU)
2
PCI-e 6-pin (GPU)
-
SATA
5
PATA
2
FDD (Floppy)
-
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush protection)
Yes
Safety certification
BSMI
Yes
CB
Yes
CCC
Yes
CE
Yes
cRUus
-
cTUVus
Yes
CU
Yes
FCC
Yes
RCM
Yes
TÜV
Yes
UKCA
Yes
IRAM
-
Environmental directives
Energy Star
8.0
ErP
Yes
WEEE
Yes
RoHS
Yes
Triman
-
Scope of delivery
Thumb screws
-
Screws
Yes
Cable ties
Yes
Velcro cable ties
-
User manual languages
CN, DE, EN, ES, FR, JP, PL, RU, TW
OCK slot bracket with switch / OCK jumper
-
SFX-to-ATX adapter bracket
-
Casing
Dimensions without cable (L x W x H), (mm)
160 x 150 x 86
Weight (kg)
2.32
Color
Black
- MPN: BP025AU

GTIN: 4260052192429
