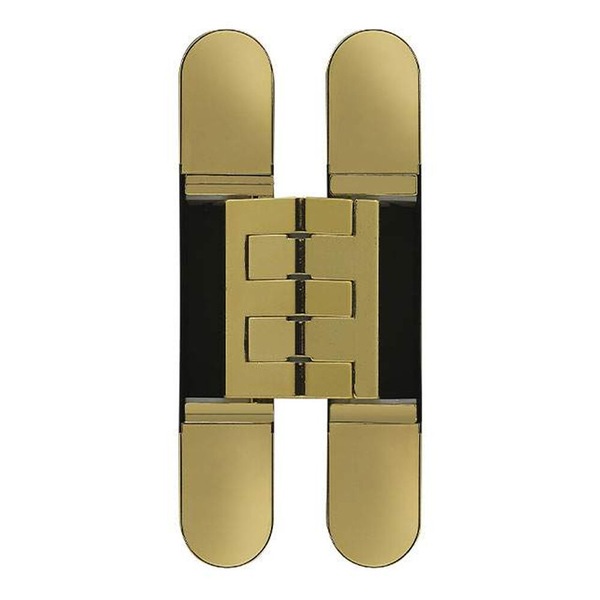

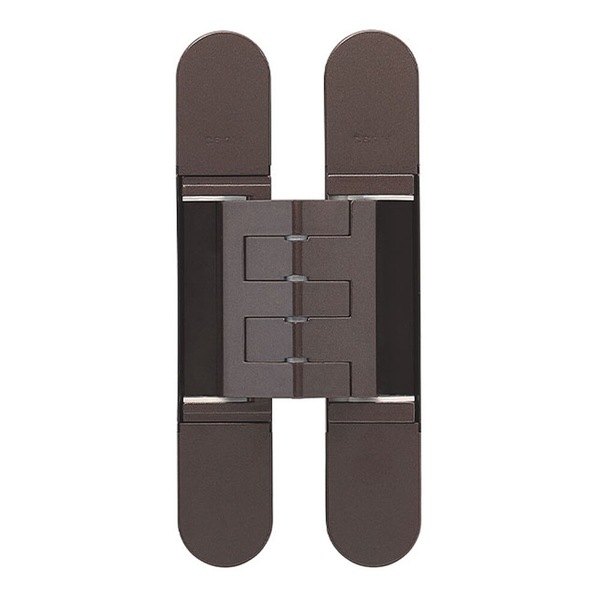

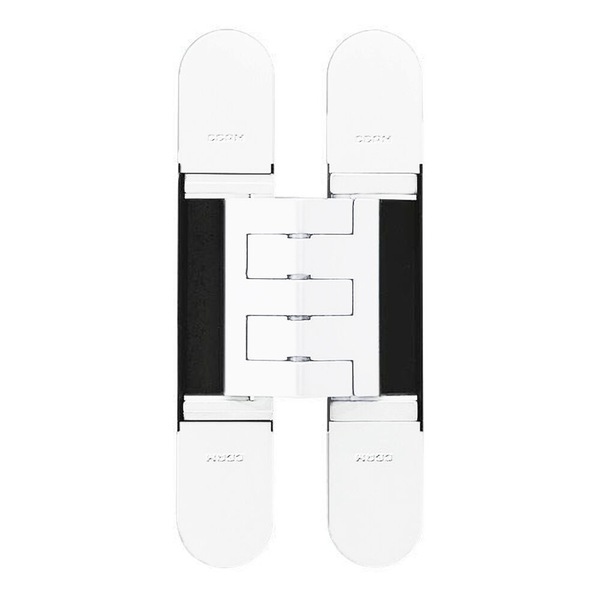

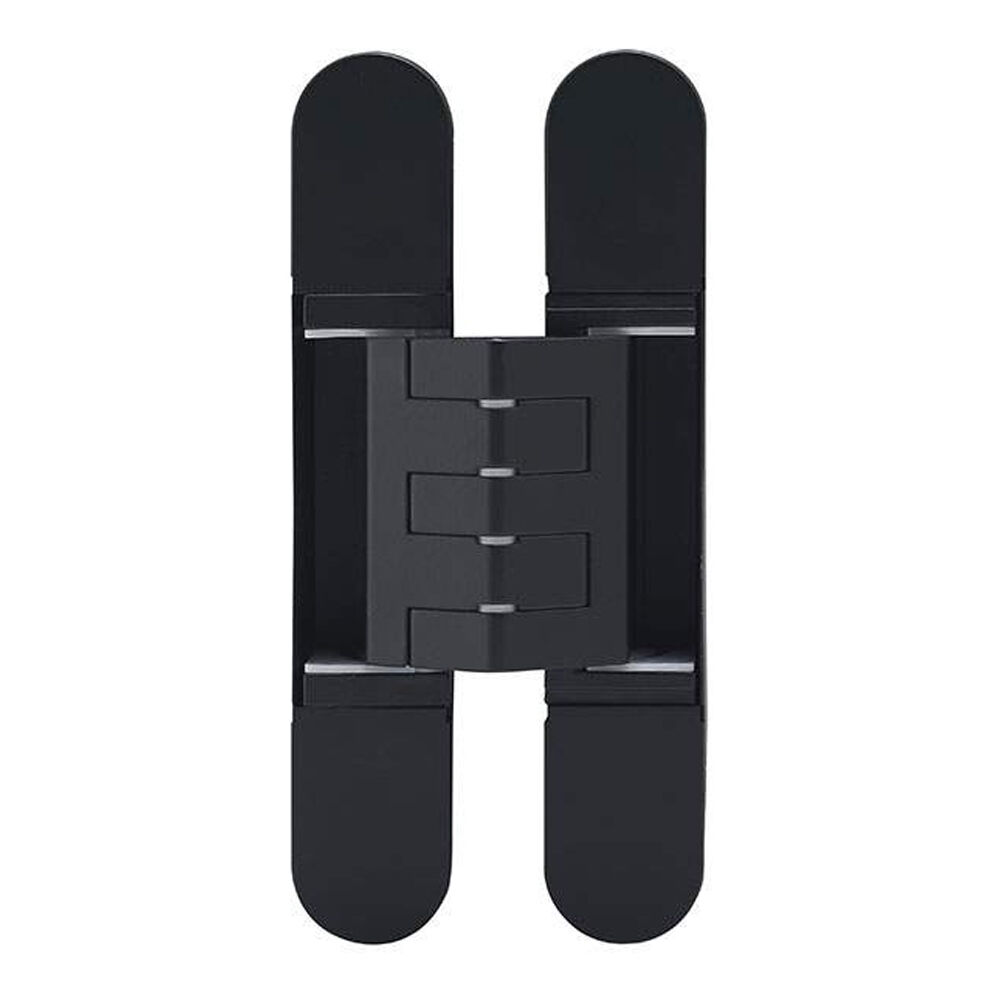

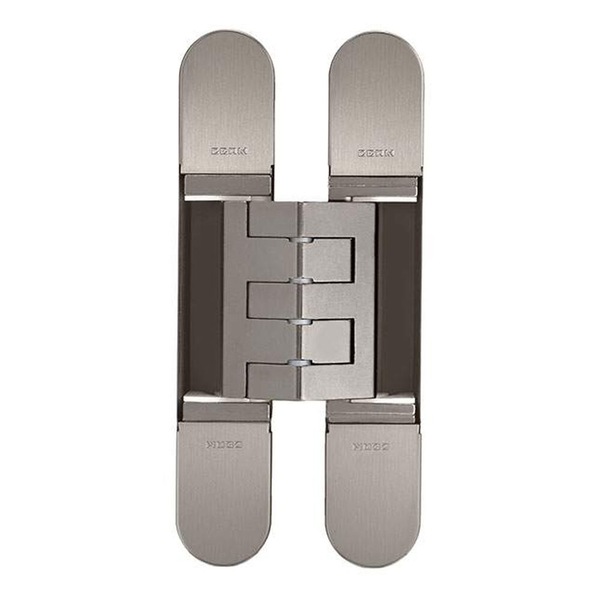

Bellevue Ceam 3D Fully Adjustable Concealed Hinge
1431BL

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - ;recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

  • 3D adjusting system S.T.A.R.S.
  • Router template available for easy installation and slot symmetry
  • Suitable for internal & external (under cover) locations
  • Suitable for residential, commercial & industrial locations

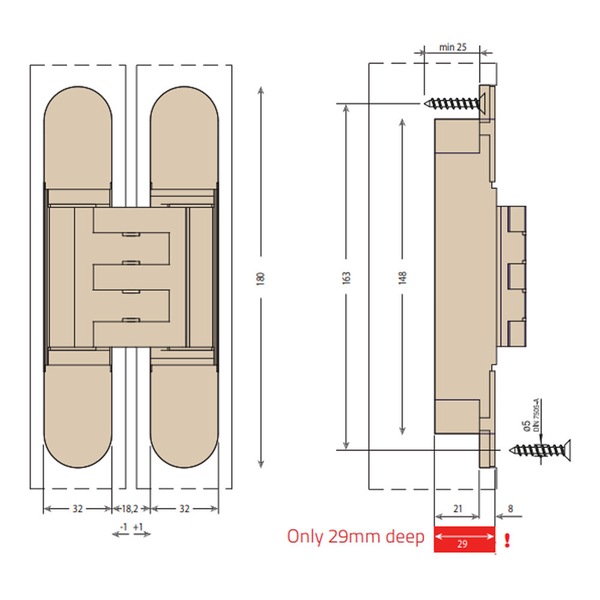

 Specifications:

  • Total Length: 180mm
  • Depth: 21mm
  • Material: Die Cast
  • Min. Door Thickness: 38mm
  • Max. Door Weight: 175kg (subject to door size & weight)
  • Narrow Timber Rebate: 29mm (ideal for thin jambs)
  • Gap When Closed: 2mm
  • Working Aperture: 180 Degrees
  • Manufacturing Location: 100% Made in Italy
  • Reliability: Certified to over 200,000 cycles
  • Adjustable: 3D adjustment on 3 (X,Y,Z) axes
  • Quick Release: CEAM quick release system, never need to touch the door or jamb again
  • Finish: Black

Note: This product does not ship to New Zealand.
