BENELEC 024579R 5G 7.5Db Cellular Antenna With Removable Whip

Image 1
Image 2
Hurry! 1 items left!
$206

Collect 206 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

Overview

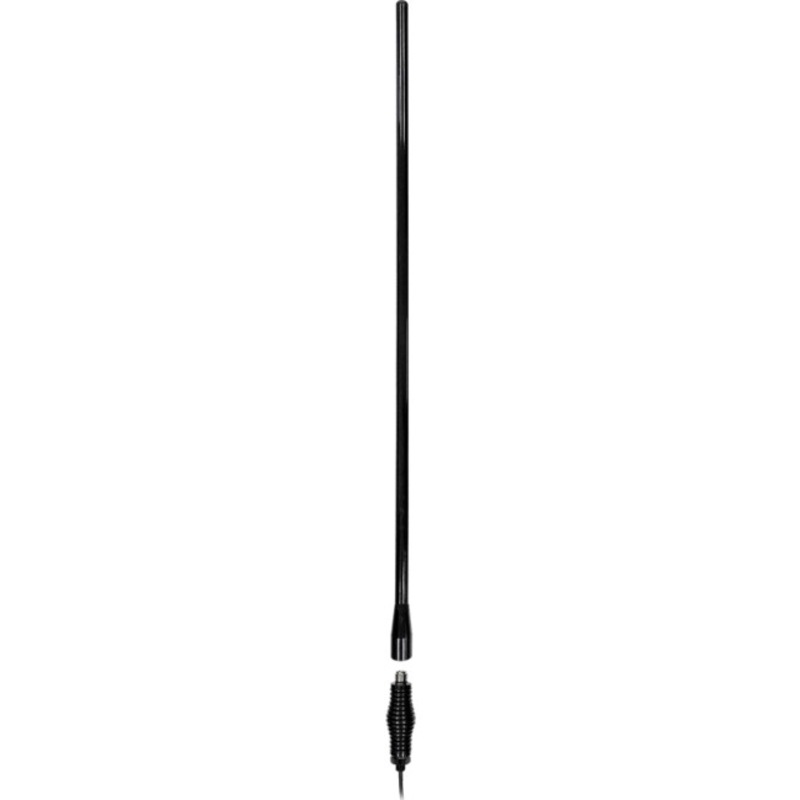

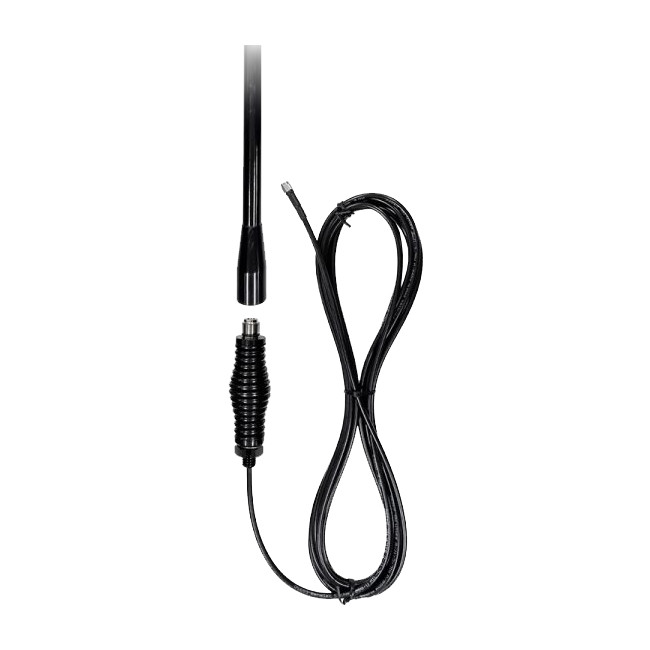

024579R 5G 7.5DB CELLULAR ANTENNA WITH REMOVABLE WHIP

Sealed removable Spring interface, Heavy Duty construction, Covering the full 5G band, 690-960MHz + 1710-2700MHz and 3.5-3.7GHz. Terminated to 5m x Low Loss Cable and SMA plug fitted. Overall length 1220mm.

Features

  • Multi-Band performance
  • Removable antenna
  • Easy to install
  • Fiberglass and thick-walled radom
  • Light weight
  • Plated heavy duty barrel stainless steel spring
  • Designed and manufactured in Australia

specs

  • Frequency
    • 690 - 960 MHz Tuned Bandwidth 270 MHz
    • 1710 - 2700 MHz Tuned Bandwidth 990 MHz
    • 3500 - 3700 MHz Tuned Bandwidth 200 MHz Gain 7.5 dBi (690 - 960 MHz) 3 dBi (1710 - 2700 MHz) 3 dBi (3500 - 3700 MHz)
  • Impedance 50
  • Operating VSWR < 2:1
  • Radiation Pattern Omni Directional
  • E Plane 3dB Beamwidth 14 Deg @ 690-960MHz
  • Length 1240 mm (includes spring assembly)
  • Width Fiberglass: 16mm (0.6") Spring: 35mm (1.4") Weight 0.84 kg (1.8 lbs)
  • Termination SMA Plug, 5m (16.4'Low Loss RG58 Cable Tail (05603)
  • Construction Fibreglass Radom, Black Coated Stainless-Steel Spring and Brass Ferrule


Weight: 0.974

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9323229021726

Estimated Delivery Time Frame:4-8 business days
