BENELEC 24573 5G 3Db Cellular Mobile Antenna

BENELEC 24573 5G 3Db Cellular Mobile Antenna

Hurry! 15 items left!

$136

Collect 136 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

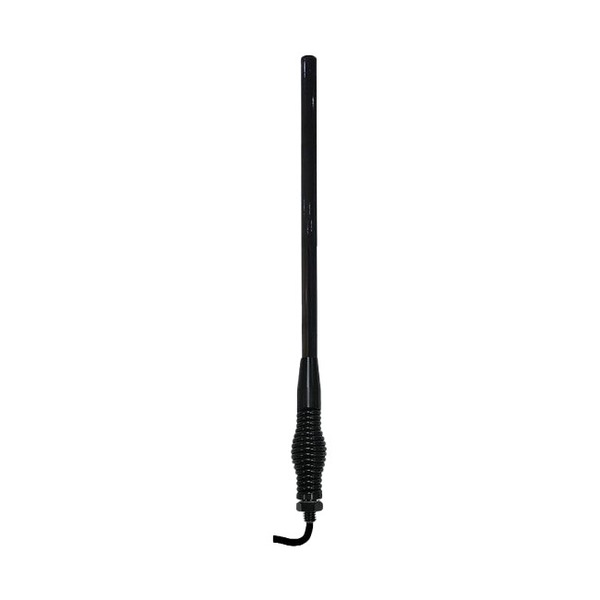

024573 5G 3DB CELLULAR MOBILE ANTENNA

The 024573 antenna is a multi-band mobile 5G ready cellular antenna intended for use in the frequency bands 690 - 960 MHz, 1710 - 2700 MHz and 3500 - 3700 MHz. The 024573 antenna does away with the need for three separate antennas whilst maintaining medium gain across the band. The antenna utilizes a low loss cable lead directly attached to the antenna which allows for ease of installation. The antenna is light weight, enclosed in a thickwalled fiberglass radome and is fitted to a stainless-steel spring. Its reduced height allows for clearance from
obstacles, where the antenna is required to be located higher on the vehicle.

Features

Multi-Band performance
Easy to install
Fiberglass and thick-walled radome
Light weight
Plated heavy duty barrel stainless steel spring
Factory tuned; no further tuning required
Designed and manufactured in Australia

specs

Frequency:

690 - 960 MHz Tuned Bandwidth
270 MHz 1710 - 2700 MHz Tuned Bandwidth
990 MHz 3500 - 3700 MHz Tuned Bandwidth 200 MHz

Gain:

3 dBi (690 - 960 MHz)
3 dBi (1710 - 2700 MHz)
3 dBi (3500 - 3700 MHz)

Impedance 50 Ohm
VSWR < 2:1
Radiation Pattern Omni-directional
E Plane 3dB Beamwidth 60 deg
Length 420 mm (includes spring assembly)
Width Fiberglass: 16 mm (0.6") Spring: 35 mm (1.4")
Weight 0.59 kg (1.3 lbs)
Termination SMA Plug, 5 m (16') RG58 Cable Tail (05603)
Construction Fiberglass Radome, Black Coa

Weight: 0.7
