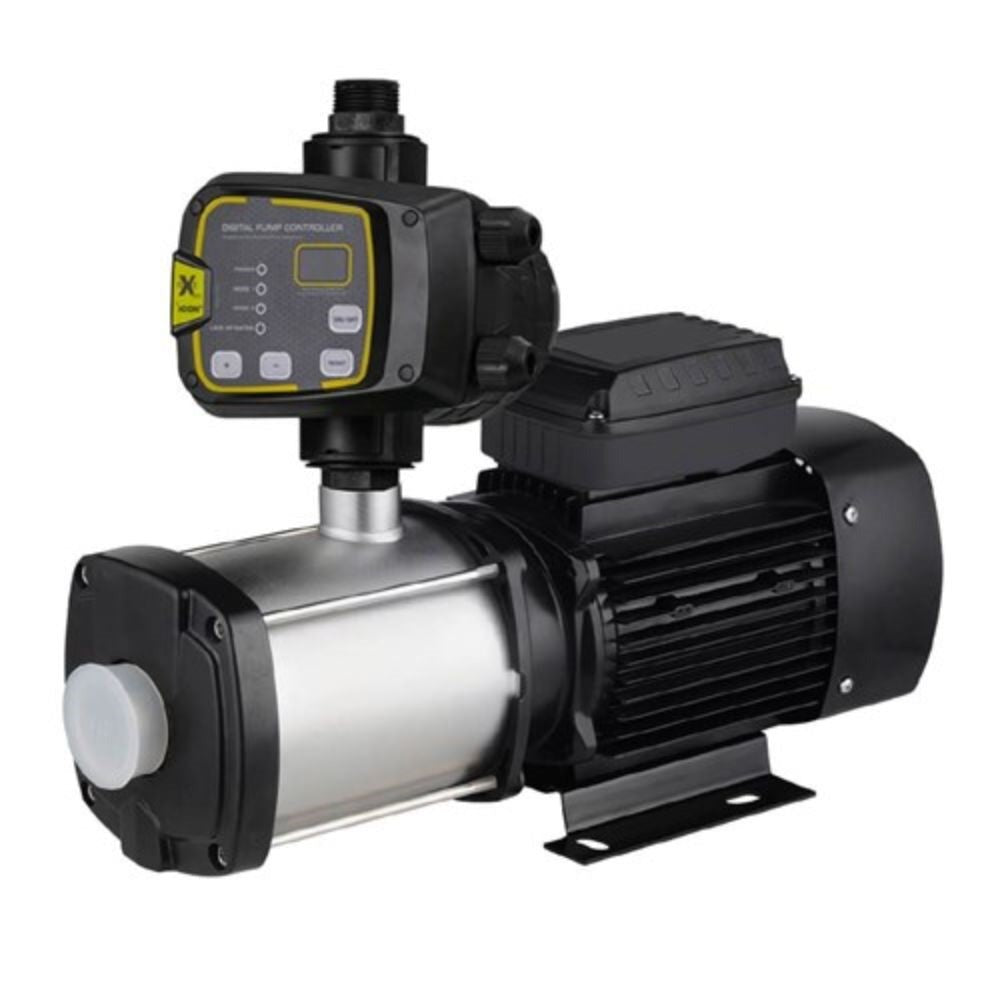

Bianco 808399 Horizontal Multi Stage Pump With NXT Pump Controller 0.75KW 1.0HP

Bianco 808399 Horizontal Multi Stage Pump With NXT Pump Controller 0.75KW 1.0HP

Hurry! 10 items left!

Price	$1045
	Collect 1045 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Description

Bianco Stainless Steel Horizontal Multi Stage Pump with nXt PRO Intelligent 2 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.75kW, 1.0hp, 240V, max hd 55m max flow 70L/m, 7 taps
Ports 1"" BSPF In, 1"" BSPM Out

Technical Specifications

Brand	Bianco Pumpz
Product Type	Pressure System
Suitable For	Clean Water
Bar	5.4
Approval	Drinking Water Approval
Amps	4.6
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	70
Float	No
Hp	1
kPa	538
Kilo Watts	0.75
Max Flow (L/min)	70
Head Range Category	b. 40 - 59 m
Max Head (m)	55
Port Size Inlet	1"" BSPF inlet
Port Size Outlet	1"" BSPM outlet
Powered	Electric
Taps	7
Volts	240
Warranty (months)	24
Watts	750

2 Year Bianco Pumps Warranty

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection

Controller Modes

Two operational modes:

Mode One - Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
Mode Two - Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.

nXt PRO Controller Data
Function	ON/OFF + Config
Modes	2
Size	2.2Kw
Rated Voltage	220-240V AC
Max Amps	16
Rated Power	2200w
Rating	IP65
Union Size	1""
Start Pressure	Adjustable
Stop Pressure	Adjustable
Max Pressure	10 bar (145PSI)
Max Liquid Temp	40°C
Cable to Pump	Plug and Play
Flylead for Pump	When sold as control only
Power Cable	10AMP
Communication	-
Accessories (Sold Separately)	15 AMP Cable
1 ¼ Union Kit

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, wont support the growth of micro-organisms and wont change the taste or appearance of your water

The product image shown is for illustration purpose only

SKU: 808399
