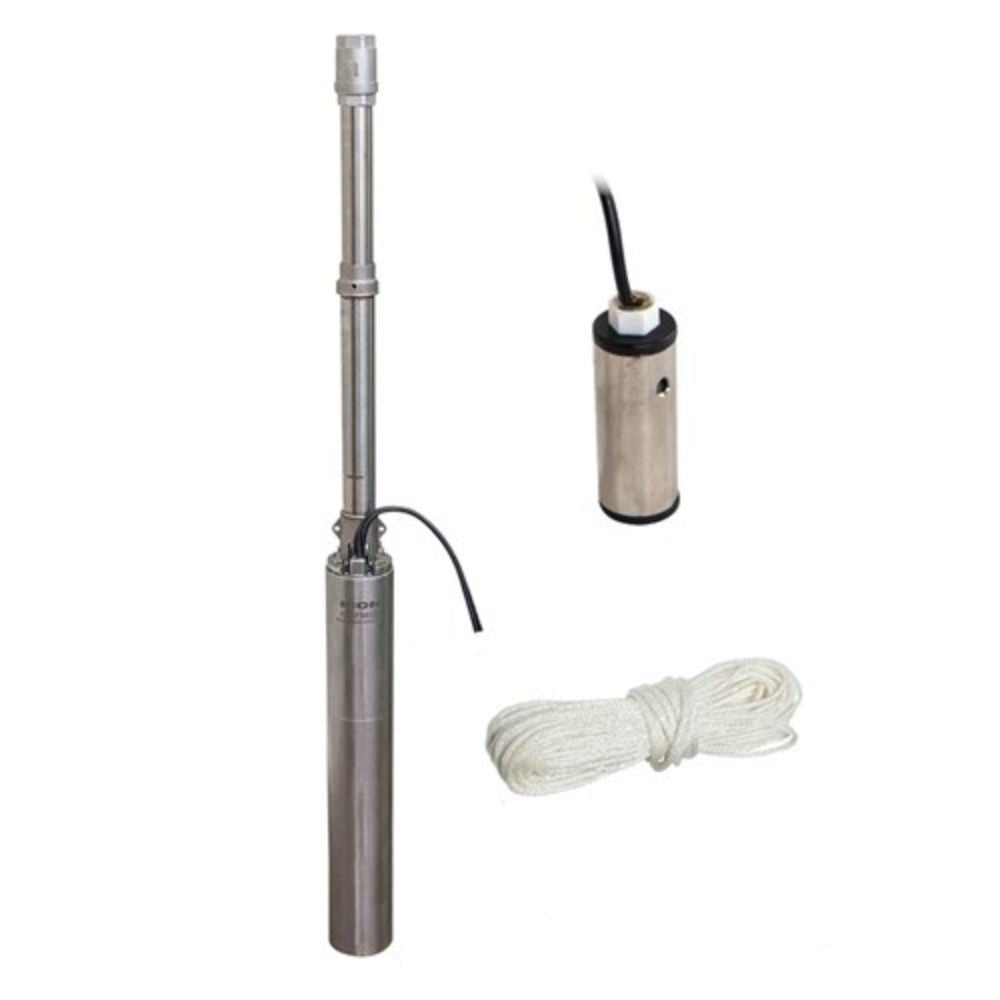

4 HELICAL SOLAR PUMP COMPLETE SOLUTION KIT
The 4 Helical Rotor iSOLAR PDP4 increases the scope and flexibility of the iSOLAR product suite. The highly efficient and innovative iSOLAR M220HR motor, and the positive displacement wet end exploits the versatility of the motor operating range to deliver water even when solar conditions are less than optimum.
The iSOLAR 4 PDP can be installed down a bore, in a tank or fitted to a pontoon to supply from an open body of water.
| Brand | Bianco iCON |
| Product Type | Solar Powered Borehole Pump |
| Suitable For | Solar |
| Flow Rate (L/min) | 46 L/min |
| Kilo Watts | 2.2 kW |
| Max Head (m) | 140 m |
| Port Size Outlet | 1" BSPM |
| BIA-PDP4 SOLAR1500 | |
|---|---|
| Motor | 2.2 kW |
| Rated Motor Speed | 3600rpm |
| Degree of Protection | IP68 |
| Max Head | 140m |
| Max Flow | 46 L/min |
| Min Fluid Temp | 10°C |
| Min Fluid Temp | 40°C |
| DC Voltage and Current | |
| Vmpp | 60-380V |
| Voc | 60-440V |
| Amps | 12A |
| AC Voltage and Current | |
| Volts | 90-280V |
| Amps | 10A |
A typical solar pumping system consists of the following: A solar array to convert sunlight to electricity, a controller to manage the power from the array to the motor which rotates the pump to move the water to where you need it most.
The product image shown is for illustration purpose only
