Bianco S/Steel Jet Pump With Electric Pump Controller With 2 Year Warranty

Bianco S/Steel Jet Pump With Electric Pump Controller With 2 Year Warranty

Limited Stock

From$430

Collect 430 Everyday Rewards points

$75.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

(0)

Description

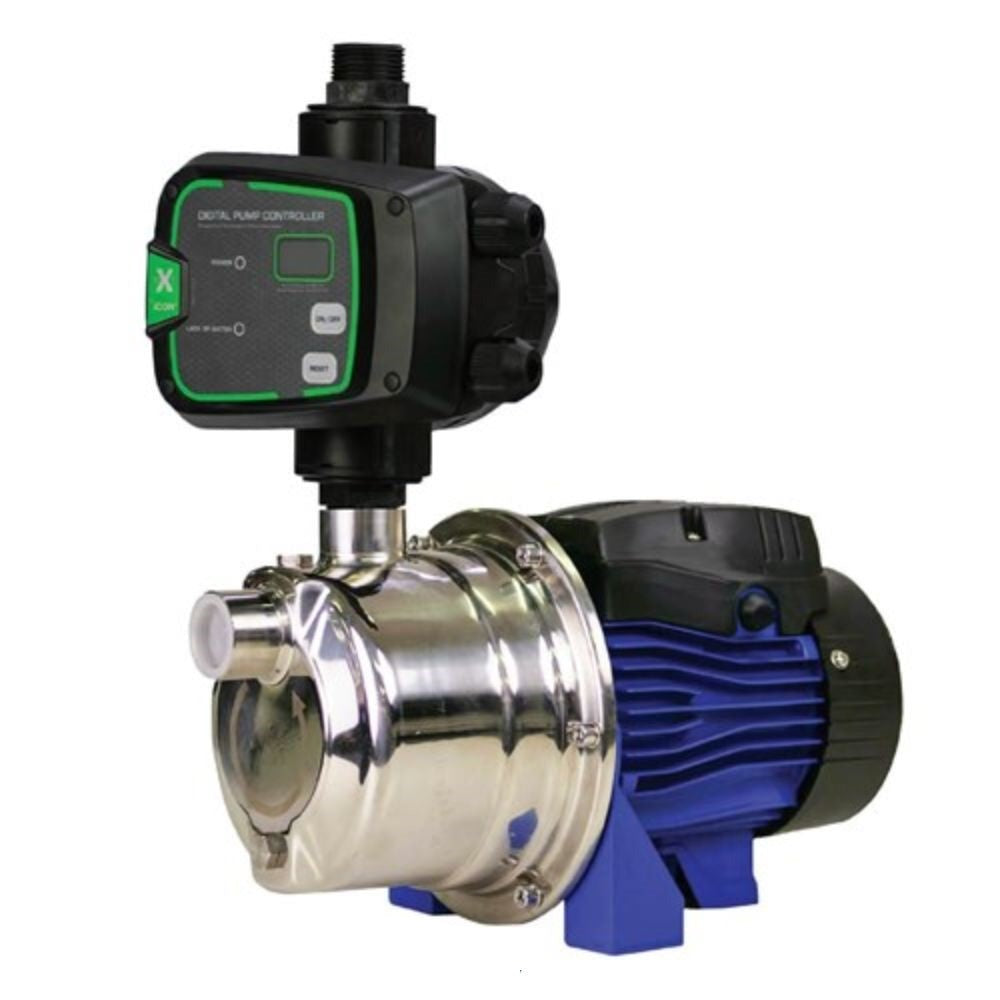

Bianco Stainless Steel Surface Mounted - Jet Pump with nXt Intelligent 1 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.45kW, 0.6hp, 240V, max hd 40m, max flow 58L/m, 5 taps
Ports 1" BSPF In, 1" BSPM Out

2 Year Bianco Pumps Warranty

Technical Specifications

Pump Model	BIA-INOX45S2NXT	BIA-INOX60S2NXT	BIA-INOX90S2NXT
Brand	Bianco Pumpz	Bianco Pumpz	Bianco Pumpz
Product Type	Pressure System	Pressure System	Pressure System
Suitable For	Clean Water	Clean Water	Clean Water
Bar	3.9	4.4	4.9
Approval	Drinking Water Approval	Drinking Water Approval	Drinking Water Approval
Amps	3.5	4	6
Flow Range Category	a. 0 - 99 L/min	a. 0 - 99 L/min	a. 0 - 99 L/min
Flow Rate (L/min)	58	62	78
Float	No	No	No
Hp	0.6	0.8	1
kPa	392	441	489
Kilo Watts	0.45	0.6	0.9
Max Flow (L/min)	58	62	78
Head Range Category	b. 40 - 59 m	b. 40 - 59 m	b. 40 - 59 m
Max Head (m)	40	45	50
Port Size Inlet	1" BSPF inlet	1" BSPF inlet	1" BSPF inlet
Port Size Outlet	1" BSPM outlet	1" BSPM outlet	1" BSPM outlet
Powered	Electric	Electric	Electric
Taps	5	6	7
Volts	240	240	240
Warranty (months)	24	24	24
Watts	450	600	750

Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection

nXt Controller Data
Function	ON/OFF
Modes	1
Size	1.5Kw
Rated Voltage	220-240V AC
Max Amps	10
Rated Power	1500w
Rating	IP65
Union Size	1"
Start Pressure	2.2 bar (32PSi)
Stop Pressure	on no flow
Max Pressure	10 bar (145PSI)
Max Liquid Temp	40°C
Cable to Pump	Plug and Play
Flylead for Pump	When sold as control only
Power Cable	10AMP
Communication	-
Accessories (Sold Separately)	-
1 ¼ Union Kit
