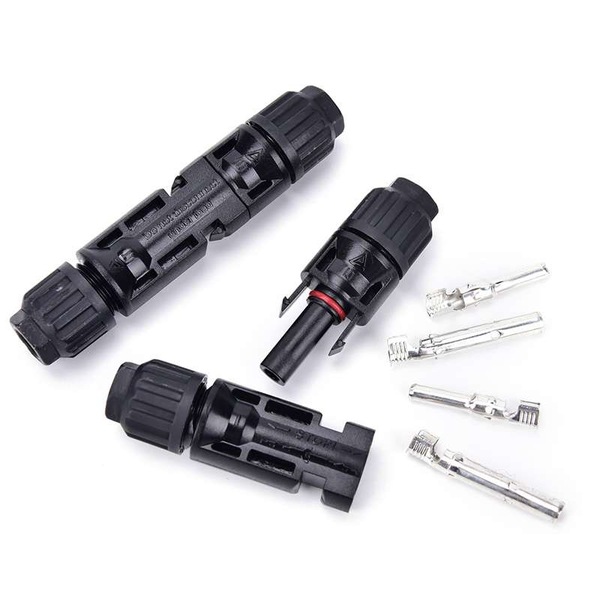

OZNALA 20 Pair Connectors 30A for PV Solar Panel Male & Female Cable Waterproof

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 5 items left!
$27.99

Collect 27 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by BJ Wholesale Direct
Secure ways to pay at checkout
Pay in 4 interest-free payments of $7.00 with Learn More

Description
Protection class: 2
Rated current: 22 (2.5 mm), 30A (4,6 mm)
Protection class: IP2X, unpaired; IP67, paired

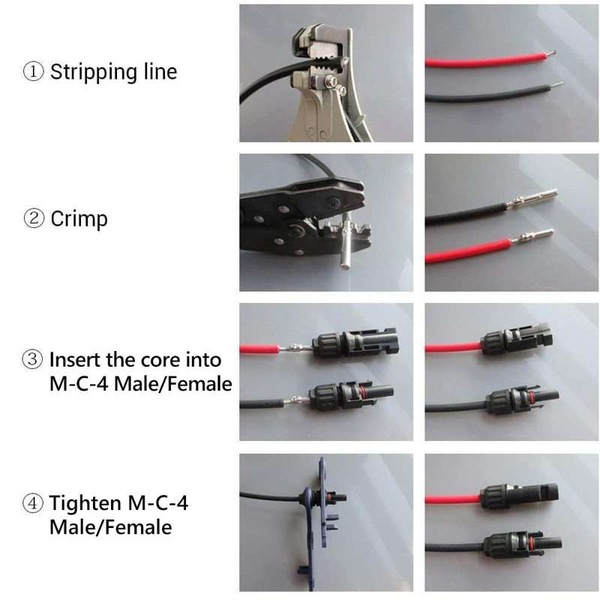

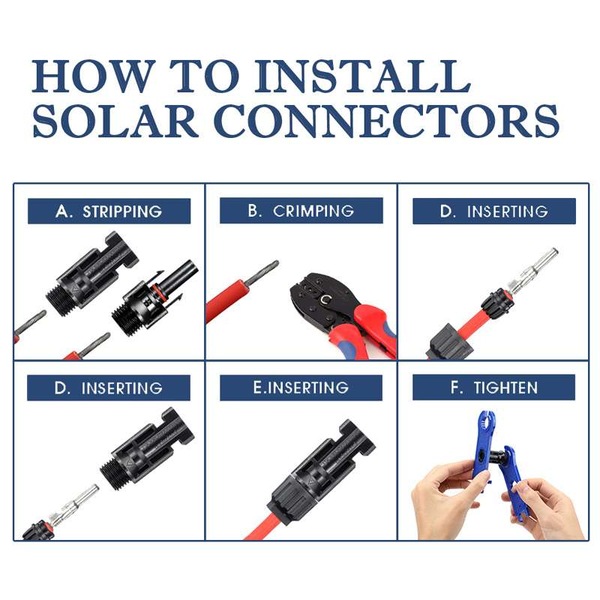

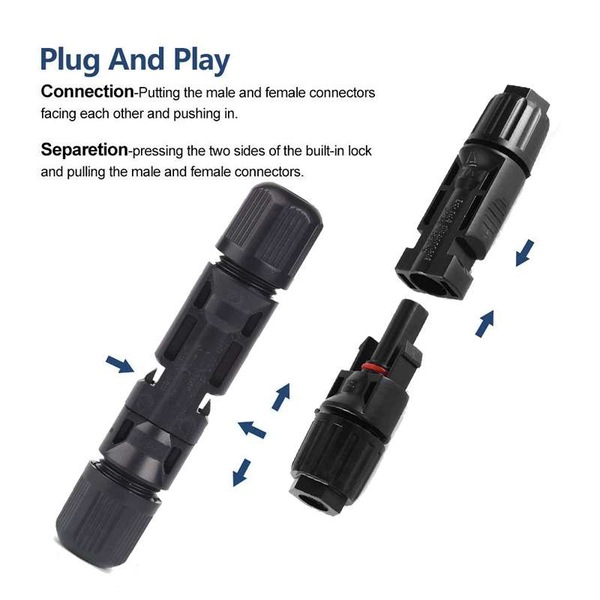

Quick and easy assembly handling and simple plug removal without any additional tools
Compatible with PV cables of different insulation diameters
Resistant to high and low temperature, fireproof
High current and high voltage load capacity
locking system snap-in


Specification
Rated voltage: 1000V
Rated current: 30A (4mm2, 6mm2)

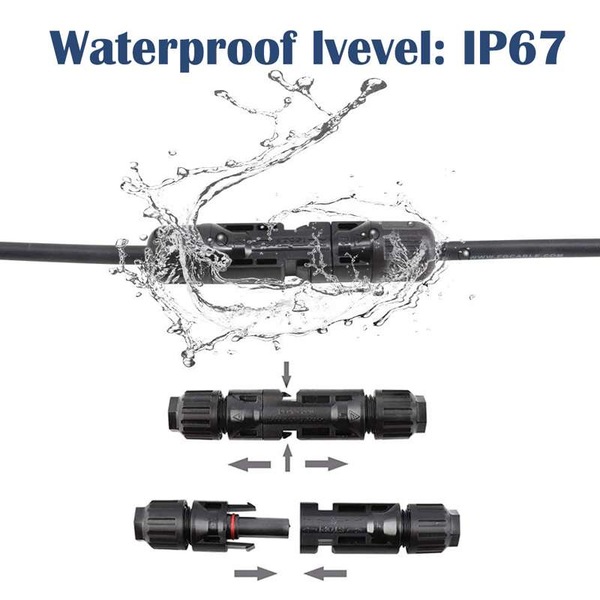

Waterproof rate: IP 67
Test voltage: 6KV (50Hz)

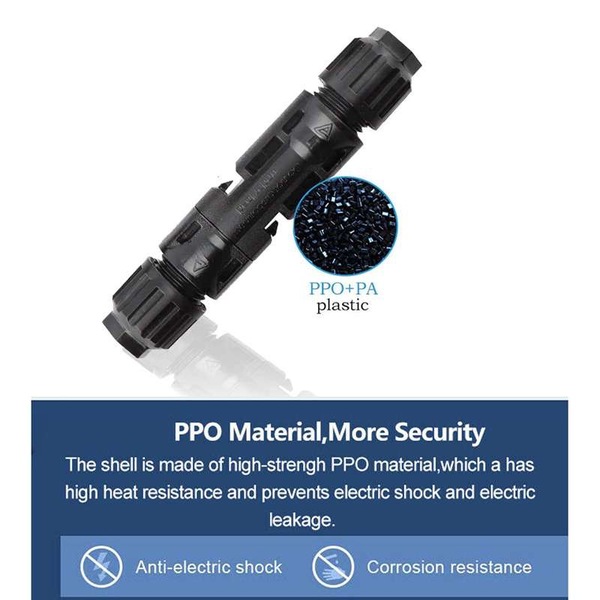

Insulation material: PPO
Contact Material Copper: Silver Plated
Security Level: 2
Flame class: UL94-V0
Contact resistance of Plugg connector: ≤5mΩ
Insertion force: ≤50N

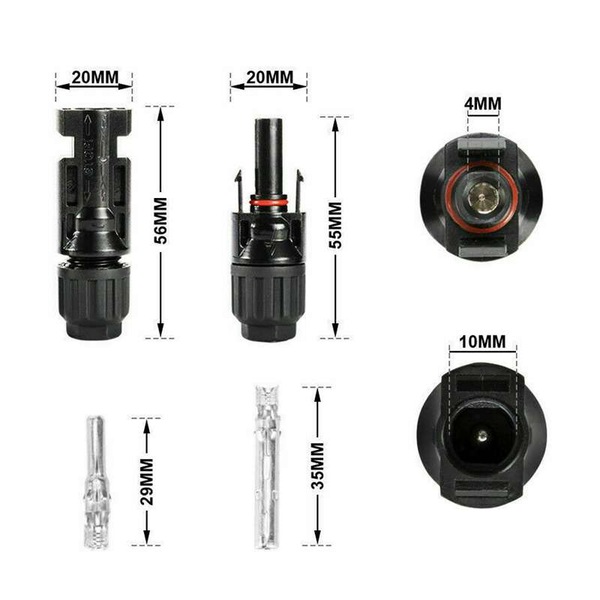

Pin or socket diameter: 4mm
Locking System: Snap-in

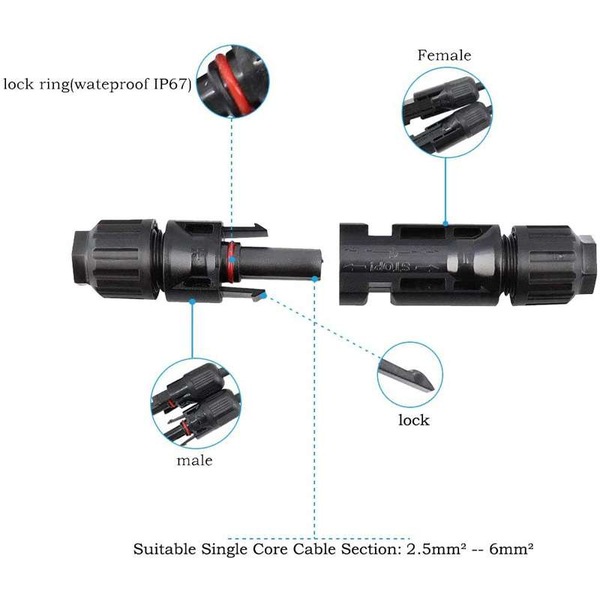

Applicable cable: 2.5mm2/4mm2/6mm2 (AWG14/12/10)

Package Included:

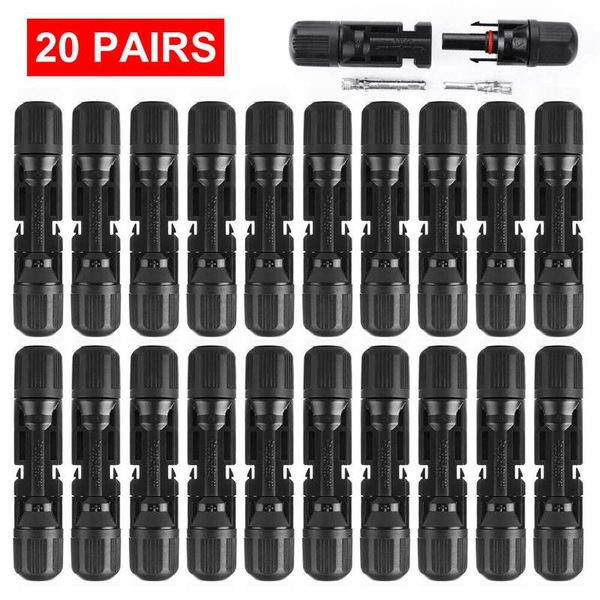

20 Solar Waterproof Connectors

GTIN: 708166389662

Estimated Delivery Time Frame:Dispatched within 24H, ETD: 3 - 10 business days
