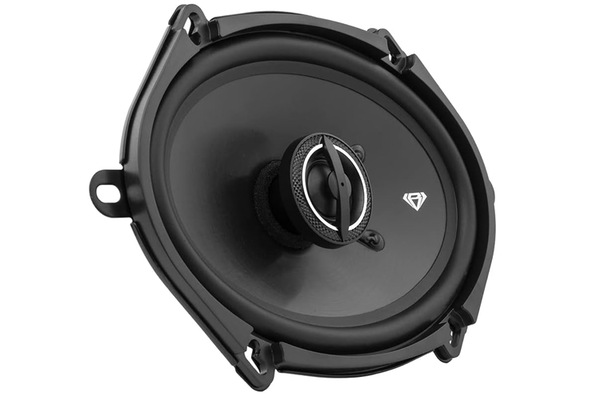

Black Diamond DIA-57.2 5x7" 2-Way 4-Ohm Coaxial Speakers

Image 1
Image 2
Image 3
Hurry! 10 items left!
$92

Collect 92 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Black Diamond 5x7” Coaxial Speakers 2 Way 4-Ohm 150 Watts DIA-57.2

Features:

  • MAX Power Handling 150 Watts
  • RMS Power Handling 50 Watts
  • Nominal Impedance 4 OHMS
  • Nominal Diameter 5x7"
  • Sensitivity (1w/1m) 87 dB
  • Frequency Response 40Hz-20KHz
  • Recommended Hi Pass Crossover 70Hz
  • Number Of Speakers 2-Ways



  • Woofer
    • Voice Coil Diameter: 1"
    • Voice Coil Former Material: ASV
    • Winding Material: PE
    • Cone Material: PPI
    • Surround Material: Rubber
    • Basket Material: Steel
    • Magnet Material: Ferrite
    • Magnet Weight: 12.6 oz
  • Thiele & Small Parameters
    • Equivalent Volume Vas: 10.7L
    • Free Air Resonance FS: 75Hz
    • Mechanical Factor Qms: 4.206
    • Electrical Factor Qes: 1.584
    • Total Factor Qts: 1.151
  • Tweeter
    • Nominal Diameter: 1”
    • Voice Coil Diameter: 0.85”
    • Voice Coil Former Material: KSV
    • Winding Material: PE
    • Diaphragm Material: PEI Dome
    • Magnet Material: Neodymium
  • Measurements
    • Overall Diameter: 7.67”x5.51”/ 195x140mm
    • Overall Depth: 2.59" / 66mm
    • Front Mount Baffle Cutout: 7"x5” / 180x128mm
    • Mounting Depth: 2.24" / 57mm
    • Motor Diameter: 3.3" / 84mm


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 810005187794
