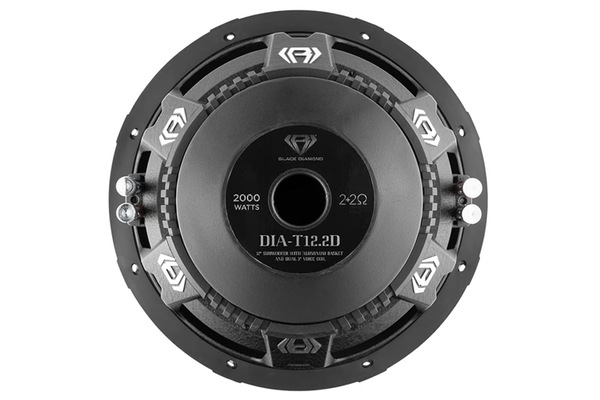

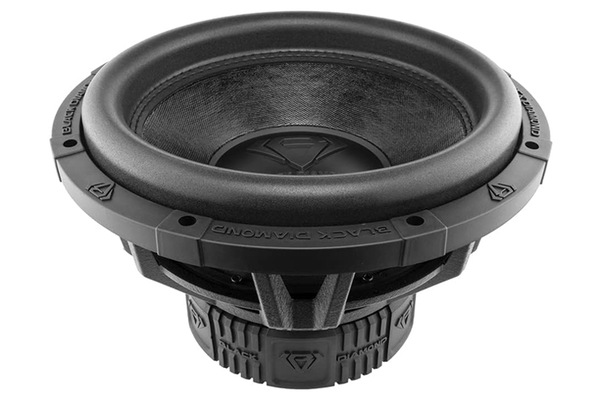

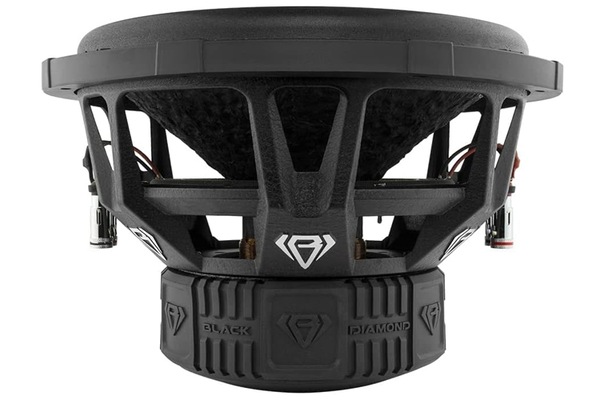

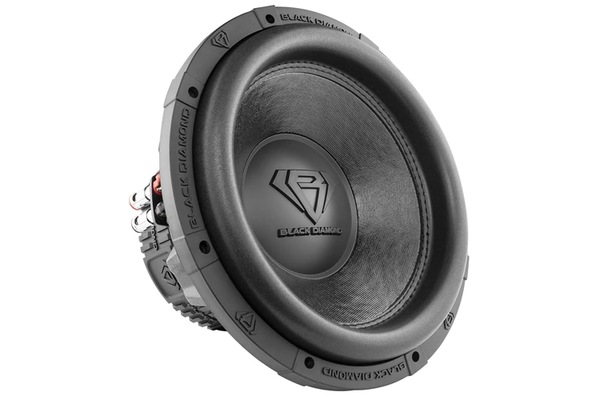

Black Diamond DIA-T12.2D 12" 2000W DVC 2-Ohm Car Audio Subwoofer

Image 1
Image 2
Image 3
Image 4
Hurry! 6 items left!
$319

Collect 319 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Black Diamond 12” Subwoofer 2-Ohm Dvc 2000 Watts DIA-T12.2D

Features:

  • Nominal Diameter: 12" (304mm)
  • Nominal Impedance: 2or 4 Ohm
  • RMS Power Handling: 1000 Watts
  • MAX Power Handling: 2000 Watts
  • Sensitivity (1w/1m): 82 dB
  • Frequency Response: 20-200Hz
  • Recommended Lo Pass Crossover: 80Hz



  • MOTOR SPECIFICATIONS:
    • Voice Coil Diameter: 3" (76.5mm)
    • Voice Coil Former Material: Aluminum
    • Winding Material: Copper
    • Cone Material: Non-Pressed paper
    • Dust Cap: PPI
    • Surround Material: Foam
    • Basket Material: Aluminum
    • Basket Color: Sandblasted Black
    • Magnet Material: Ferrite
    • Magnet Weight: 120 Oz
    • Displacement Volume: 2.26L / 0.08 ft3
  • THIELE & SMALL SPECIFICATIONS:
    • Equivalent Volume Vas: 22.23L / 0.785ft3
    • Excursion (one way) / Xmax: 24mm
    • Free Air Resonance / Fs: 32 Hz
    • Mechanical Factor / Qms: 3.827
    • Electrical Factor / Qes: 0.637
    • Total Factor / Qts: 0.546
    • Moving Mass / Mms: 418.78g
    • Compliance / Cms: 55.6µ M/N
    • Bl Factor / BL: 11.076
    • Voice Coil Inductance / Le: 0.53 mH
    • Diaphragm Area / Sd: 530.93cm2
    • DC Resistance / Re: 1.8+1.8 Ohm
    • Efficiency Bandwidth Product / EBP: 50.2
  • RECOMMENDED ENCLOSURES:
    • Sealed Internal Volume: 28.3L /1ft3
    • Sealed Box Output Response / F3: 38Hz
    • Ported Internal Volume: 45.3L / 1.6ft3
    • Port Size - Square (WxHxLong): 1.5"x11.81"x20.43" / 38x300x519mm
    • Port Tunning Frequency / Fb: 34Hz
    • Ported Box Output Response / F3: 27Hz
  • MEASUREMENTS:
    • Overall Diameter: 12.7" (323mm)
    • Overall Depth: 8.46" (215mm)
    • Front Mount Baffle Cutout: 11.1" (282mm)
    • Mounting Depth: 7.03" (178.6mm)
    • Motor Diameter: 7.08" (180mm)


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 810005189163
