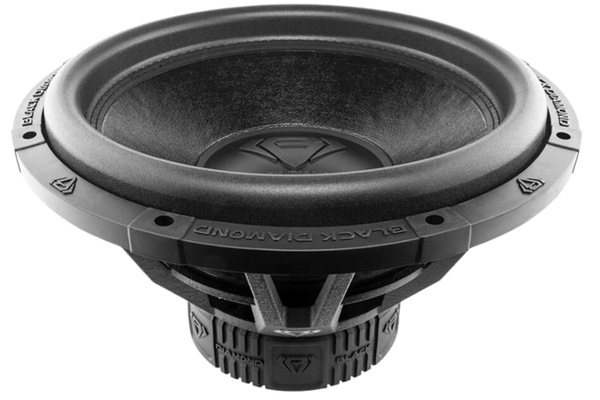

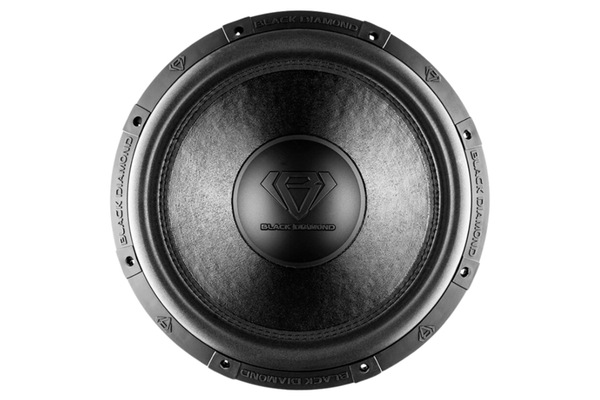

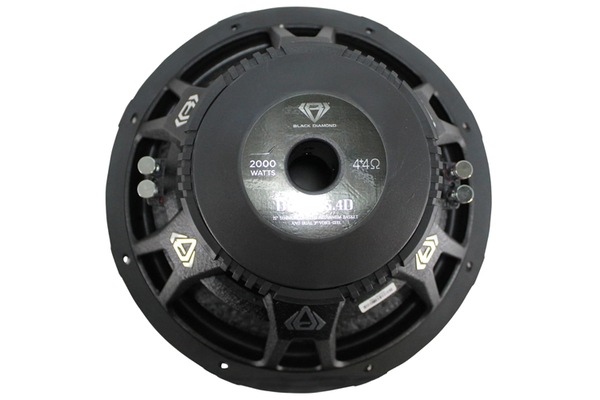

Black Diamond DIA-T15.4D 15" 2000W Subwoofer, 3" DVC 4-Ohm

Image 1
Image 2
Image 3
Image 4
Hurry! 6 items left!
$429

Collect 429 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Black Diamond 15“ Subwoofer 4-Ohm Dvc 2000 Watts DIA-T15.4D

Features:

  • Nominal Diameter: 15″ (381mm)
  • Nominal Impedance: 4+4 Ohm
  • RMS Power Handling: 1000 Watts
  • MAX Power Handling: 2000 Watts
  • Sensitivity: (1w/1m) 85 dB
  • Frequency Response: 15-200Hz
  • Recommended Lo Pass Crossover: 80Hz



  • Black Diamond DIA-T15.4D MOTOR SPECIFICATIONS:
    • Voice Coil Diameter: 3″ (76.5mm)
    • Voice Coil Former Material: Aluminum
    • Winding Material: Copper
    • Cone Material: Non-Pressed Paper
    • Dust Cap: PPI
    • Surround Material: Foam
    • Basket Material: Aluminum
    • Basket Color: Finish Sandblasted Black
    • Magnet Material: Ferrite
    • Magnet Weight: 120 oz
    • Displacement Volume: 3.39L / 0.12ft3
  • Black Diamond DIA-T15.4D TS PARAMETERS:
    • Equivalent Volume: Vas 58.9L / 2.08ft3
    • Excursion: Xmax 24mm
    • Free Air Resonance: 30 Hz
    • Mechanical Factor: Qms 4.218
    • Electrical Factor: Qes 0.908
    • Total Factor: Qts 0.747
    • Moving Mass: Mms 460g
    • Compliance: Cms 59.4µ M/N
    • Bl Factor: BL 13.2
    • Voice Coil Inductance: Le 0.8 mH
    • Diaphragm Area: Sd 834.69 cm2
    • Dc Resistance: Re 3.6+3.68 ohm
    • Efficiency Bandwidth: Product EBP 33
  • Black Diamond DIA-T15.4D MEASUREMENTS:
    • Overall Diameter: Total 15.47″ (393mm)
    • Overall Depth: Total 9.56″ (243mm)
    • Front Mount Baffle Cutout: 13.74″ (349mm)
    • Mounting Depth: / 8.13″ (206.6mm)
    • Motor Diameter: / 7.08″ (180mm)


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 810005189194
