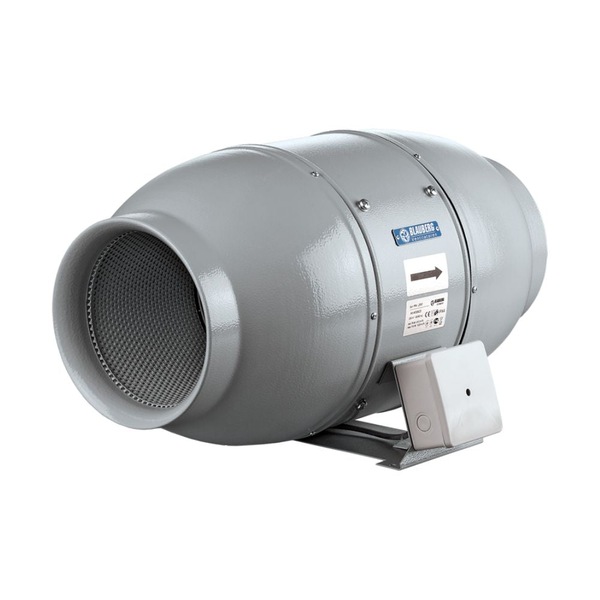

Blauberg Iso-Mix 200 Inline Fan | 200mm Mixed-Flow Duct Fan | Up to 1035 m3/h | Silent Soundproof Steel Casing | IPX4 Rated | Dual-Speed AC Motor

The Blauberg Iso-Mix 200 is a sound-insulated mixed-flow inline fan engineered for powerful yet whisper-quiet airflow in commercial, residential, or hydroponic environments. With up to 1035 m3/h of airflow and a noise level as low as 39 dB(A), it's perfect for spaces where noise reduction and ventilation efficiency are top priorities.

Its coated steel casing with internal sound insulation dampens motor and airflow noise, while the two-speed AC motor-controlled via an integrated switch-offers performance flexibility for different ventilation needs. The fan includes a plug-and-play cable for easy installation and operates safely in humid conditions, thanks to its IPX4/IP44 ingress protection.

View Data Sheet Here.

Key Features:

•


  High Airflow with Low Noise: Delivers 790-1035 m3/h with sound levels of 39-41 dB(A) at 3 meters.






•


  Insulated Steel Casing: Reduces sound output while providing durable protection in challenging environments.






•


  Dual-Speed Control: Choose between 2000 or 2460 RPM for tailored airflow using a built-in speed switch.






•


  Plug & Play Installation: Comes with mains cable and plug-no extra wiring needed.






•


  All-Position Mounting: Can be installed vertically or horizontally for flexible use.






•


  Protected & Reliable: Operates at 230V / 50-60Hz, rated IPX4 for the casing and IP44 for the motor.




Technical Specifications:

•


  Duct Size: 200mm






•


  Max Airflow: 1035 m3/h






•


  Power: 78W (low) / 110W (high)






•


  Sound Pressure Level @3m: 39-41 dB(A)






•


  Speed: 2000 / 2460 RPM






•


  Current: 0.35A / 0.49A






•


  Weight: 8 kg






•


  Voltage: 230V






•


  Frequency: 50/60Hz






•


  Temperature Range: 1oC to 60oC (ambient max 40oC)






•


  Ingress Protection: IPX4 (fan), IP44 (motor)




Best Suited For:

•


  Indoor grow rooms & hydroponics






•


  Commercial ventilation and HVAC systems






•


  Apartments, libraries, and offices






•


  Media rooms, workshops, or acoustic-sensitive areas




Engineered for Quiet Power

When you need efficient airflow without the noise, the Blauberg Iso-Mix 200 delivers. With premium noise insulation, easy installation, and dual-speed control, it's a trusted solution for clean, quiet ventilation in any demanding space.
