Blue Bar 6 B&S x 6.5m Power Lead with Ign Relay and 2 x Anderson Connectors

This power lead is ideal for running power to the back of the vehicle for powering a caravan or camper

A single 6 B&S (13mm2) twin core cable runs the length of the vehicle which ends in 2 x Anderson Plug Connectors.

In this listing there is 1 x grey and 1 x red anderson style plug and housing but we can change the red one to another grey if required

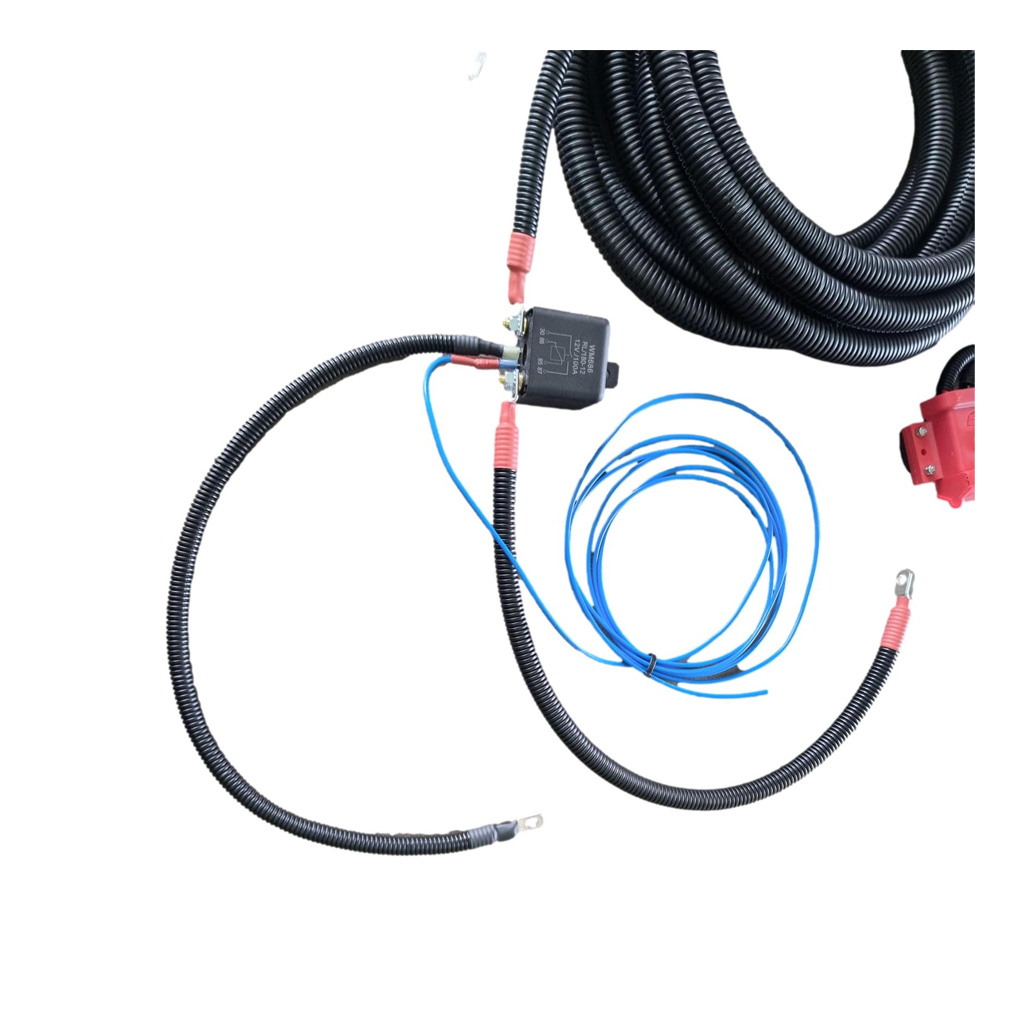

Under the bonnet, we have included an Ignition Sensing Relay which allows power through when the vehicle is running but cuts the power when the ignition is off

The 5mm blue wire will need to be terminated in a fuse that comes on with the vehicle. We provide 2 different fuse taps for this purpose

A 50 amp fuse is included and this can be changed out to a higher amperage if required

The entire lead is covered in heat resistant split conduit for added cable protection

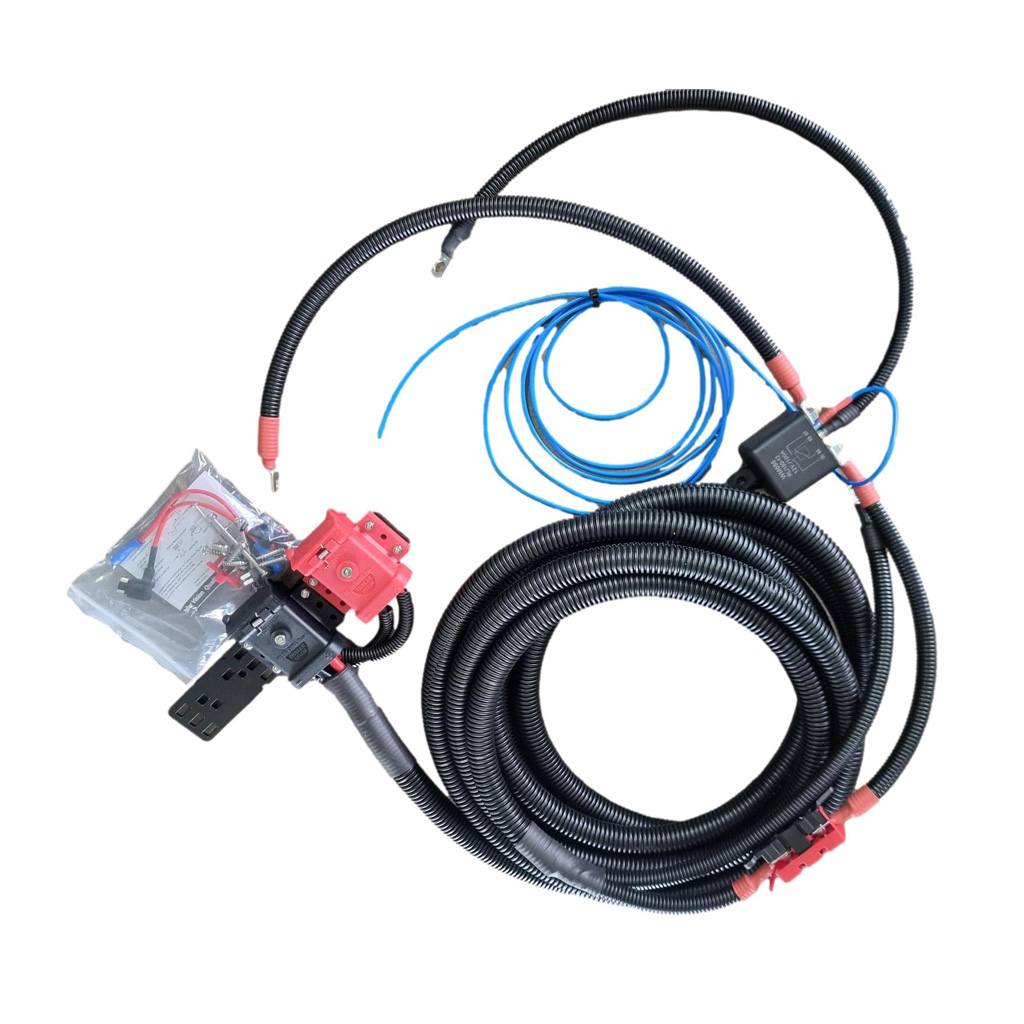

Contents

6.5m x 6 B&S (13mm2) Twin core cable

6.5m of Split conduit

1 x 50 amp midi fuse and housing

1 x 50 amp grey Anderson style plug and housing

1 x 50 amp red Anderson style plug and housing

1 x Mounting plate, which can also accommodate a 7 or 12 pin trailer plug

1 x Ignition relay assembly with 2 x fuse taps

** Depending on your vehicle's trailer plug orientation, you may need to change the 2 x Anderson Plug Housings to the other side of the metal plate provided.. A 10mm socket or spanner and a Phillips screwdriver are needed to undo the bolts and retighten once housings are moved.

Any questions or changes, please let us know

Blue Bar 6 B&S x 6.5m Power Lead with Ign Relay and 2 x Anderson Connectors

This power lead is ideal for running power to the back of the vehicle for powering a caravan or camper

A single 6 B&S (13mm2) twin core cable runs the length of the vehicle which ends in 2 x Anderson Plug Connectors.

In this listing there is 1 x grey and 1 x red anderson style plug and housing but we can change the red one to another grey if required

Under the bonnet, we have included an Ignition Sensing Relay which allows power through when the vehicle is running but cuts the power when the ignition is off

The 5mm blue wire will need to be terminated in a fuse that comes on with the vehicle. We provide 2 different fuse taps for this purpose

A 50 amp fuse is included and this can be changed out to a higher amperage if required

The entire lead is covered in heat resistant split conduit for added cable protection

Contents

6.5m x 6 B&S (13mm2) Twin core cable

6.5m of Split conduit

1 x 50 amp midi fuse and housing

1 x 50 amp grey Anderson style plug and housing

1 x 50 amp red Anderson style plug and housing

1 x Mounting plate, which can also accommodate a 7 or 12 pin trailer plug

1 x Ignition relay assembly with 2 x fuse taps

** Depending on your vehicle's trailer plug orientation, you may need to change the 2 x Anderson Plug Housings to the other side of the metal plate provided.. A 10mm socket or spanner and a Phillips screwdriver are needed to undo the bolts and retighten once housings are moved.

Any questions or changes, please let us know

Blue Bar 6 B&S x 6.5m Power Lead with Ign Relay and 2 x Anderson Connectors

Australian Made Product
