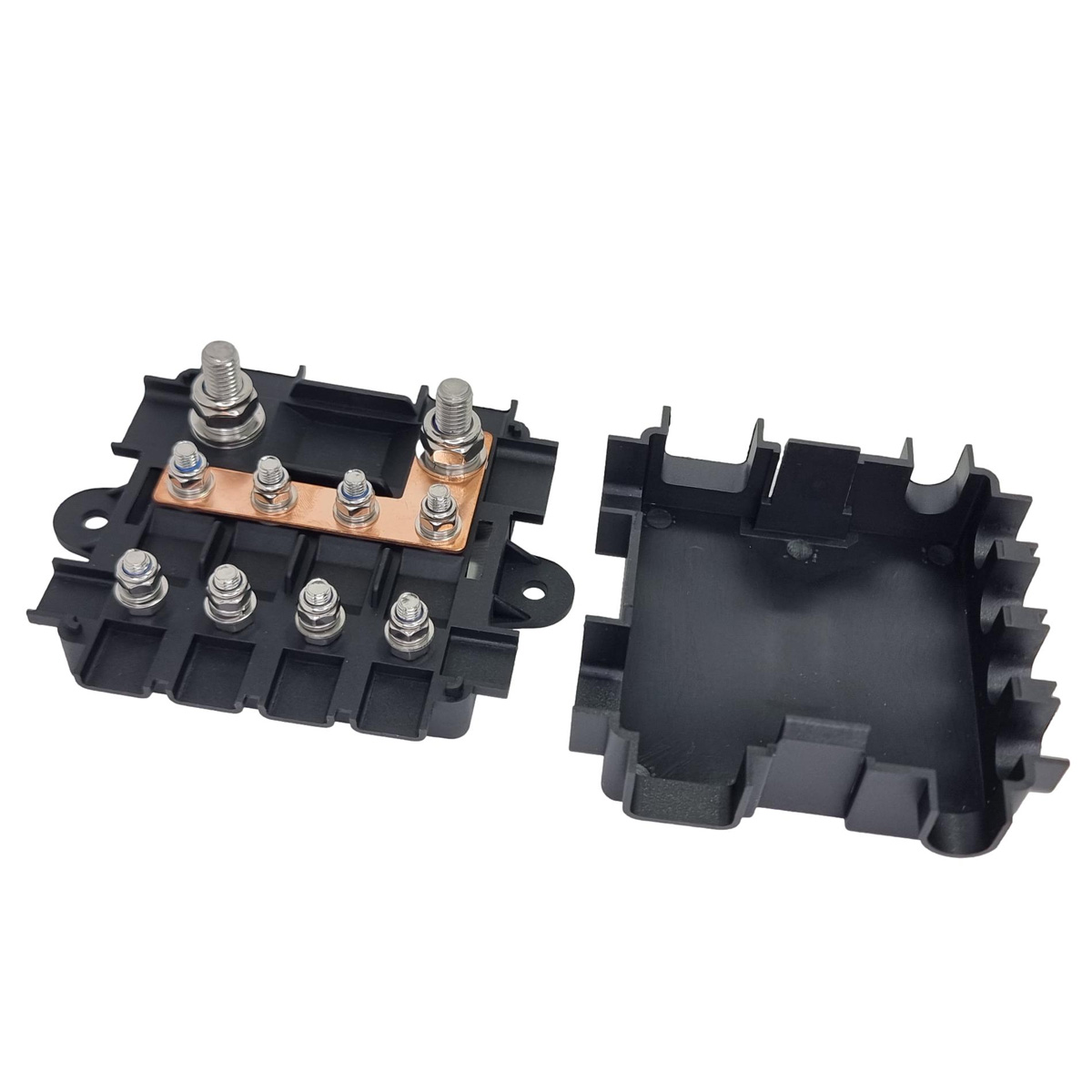

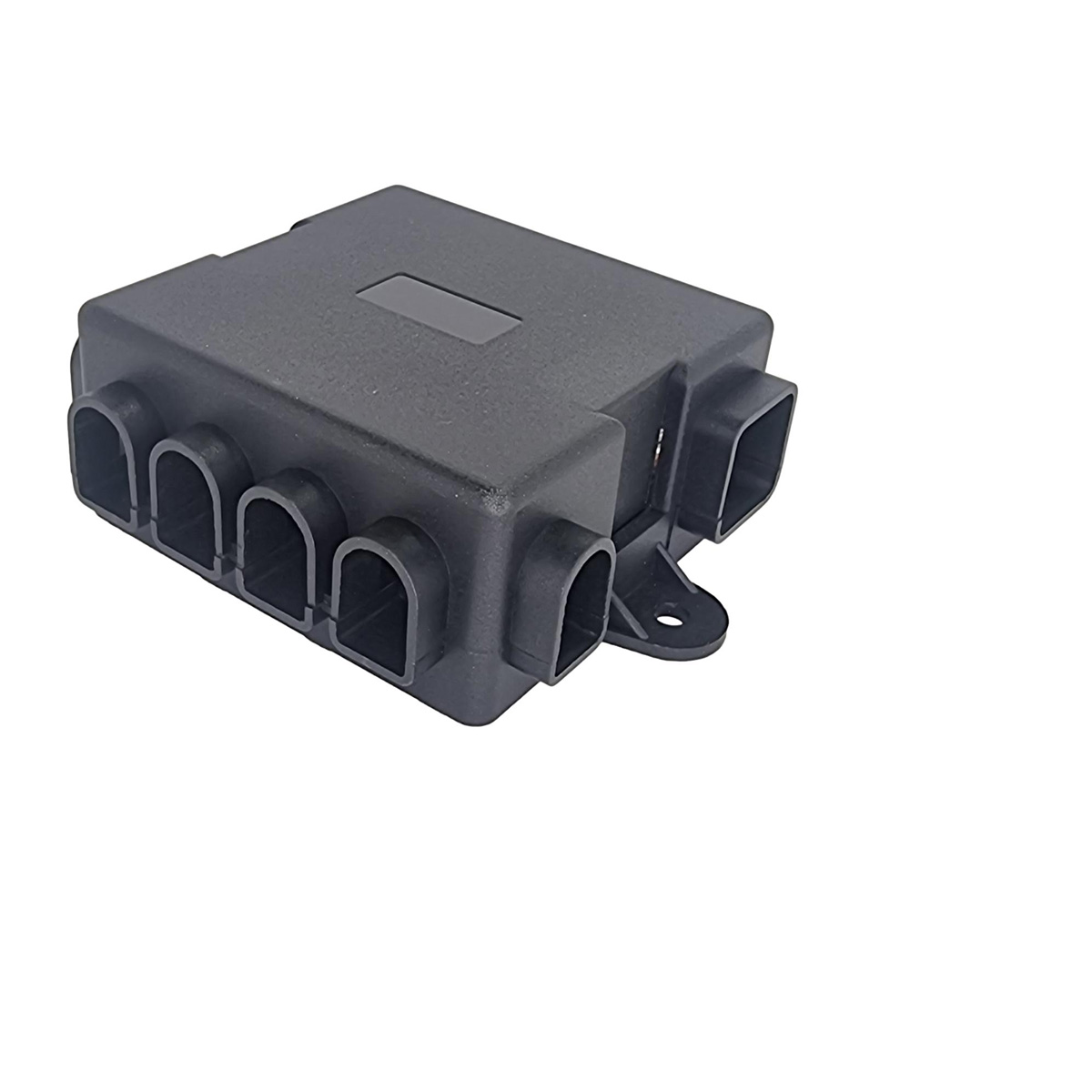

Blue Bar Midi Fuse Holder 4 Midi 1 Mega Includes Fuses, Bussed

Needing multiple Midi Fuses for your 12v installation job?

This handy Midi Fuse Block holds up to 4 midi fuses and 1 mega fuse

Midi fuses are bussed and can have input power via the mega fuse or direct to busbar

Mega fuse can also be used as an output giving a total of 5 x 12v outputs

Midi fuse studs are M4 and Mega fuse studs are M10

Dimensions - 115mm (Length) x 95mm (Width) x 40mm (Height)

Distance from bolt hole to bolt hole centre is - 98mm

Comes with 1 x 250 amp Mega fuse, 2 x 50 amp Midi fuse, 1 x 60 amp Midi fuse and 1 x 80 amp Midi fuse
