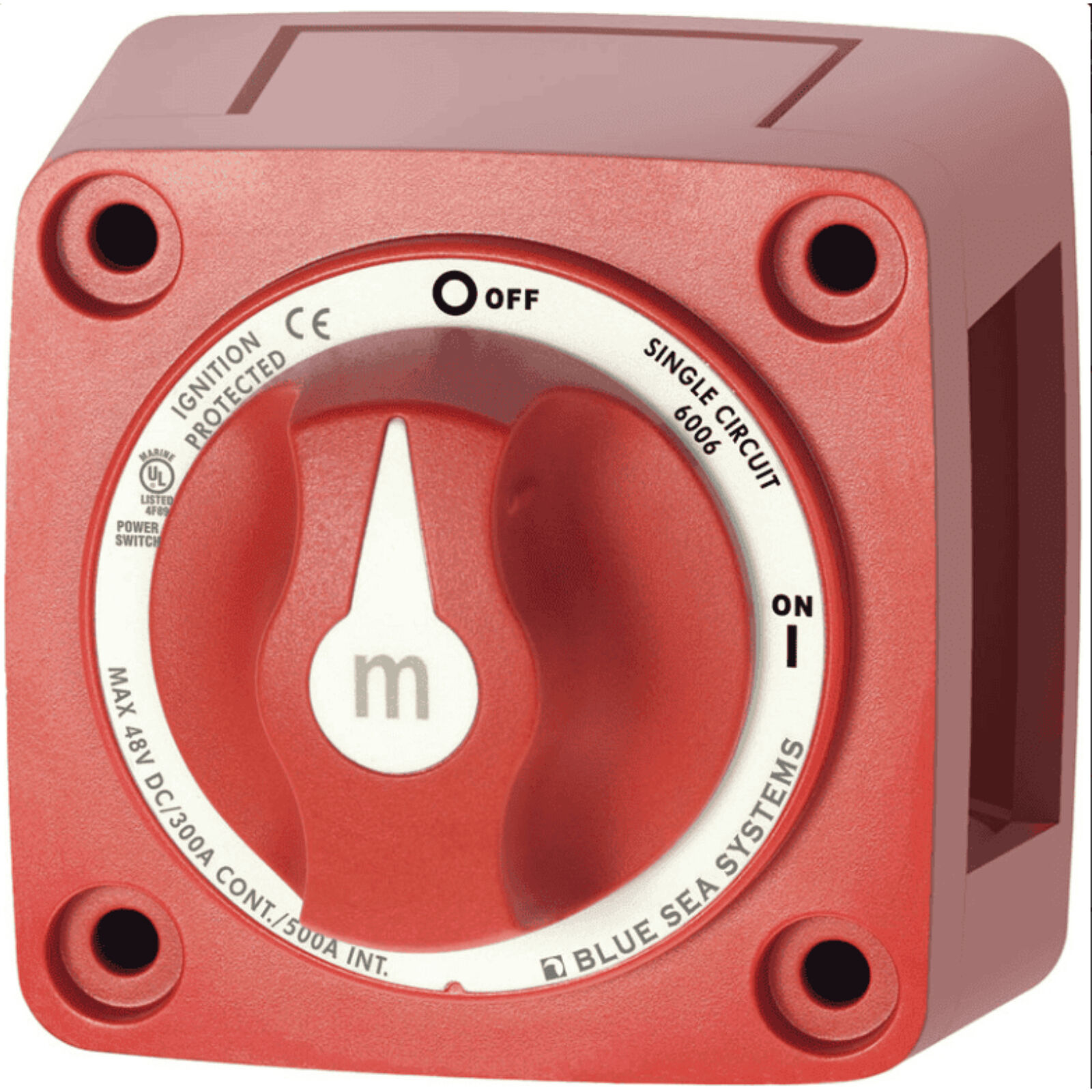

Blue Sea m-Series Mini On-Off Battery Switch with Knob - Red

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 2 items left!
$70.38

Collect 70 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Solar 4 RVs
Secure ways to pay at checkout
Pay in 4 interest-free payments of $17.59 with Learn More

Description

  • Switches a single battery to a single load group
  • Ignition protected—safe for installation aboard gasoline powered boats

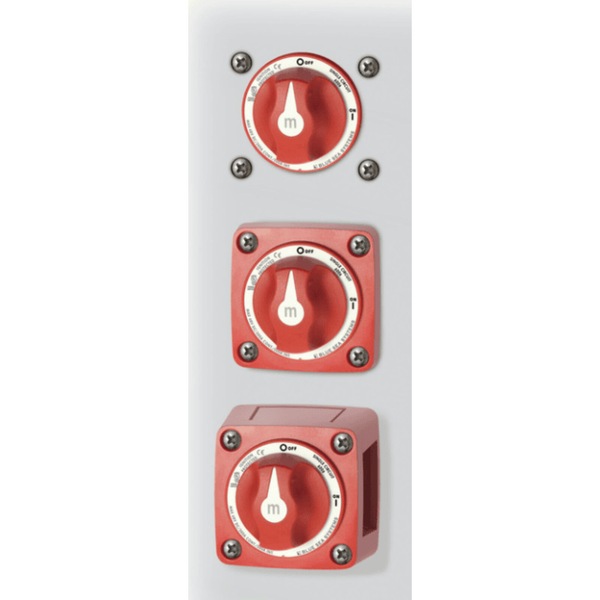

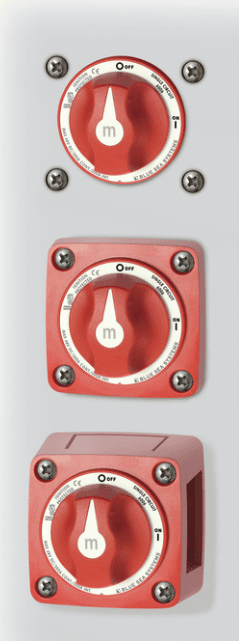

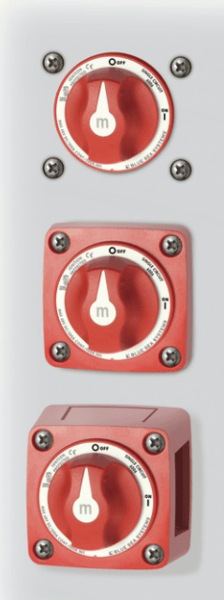

  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • 6006 Specifications
    Switch Type  Single Circuit ON-OFF
    Color Red
    Switch Positions 2
    Battery Combine No
    Alternator Field Disconnect  No
    Maximum Voltage 48V DC
    Stud Size 3/8"
    Terminal Stud Torque 120 in-lb (13.56 Nm)
    Continuous Rating  300A
    Intermittent Rating  500A (5 min)
    Cranking Rating 30 sec  900A
    Battery Inputs 1
    Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
    Cable Size to Meet Ratings 4/0 AWG (120mm²)
    Mounting Holes Accept #10 Screw
    Stud Material Tinned Copper
    Stud Torque 120 in-lb (13.56 Nm)
    Terminal Stud Size 3/8" - 16 (M10)
    Weight 0.65Lb (0.29 Kg)

GTIN: 632085060060
