Description :

1. Start to detect i Beacons and modify parameters, download AprilBeacon App.(System requirement: iOS7.0 and later or Android 4.3       and later)

2. Make sure you have Bluetooth turned on and the location services for AprilBeacon App are enabled.

3. Launch the app and run the app to detect your Beacons.

4. If you want to write your own code check our SDK documentation

Features :

3-A xis, 12-bit accelerometer with selectable range of ±2,4,8,16g (LIS3DH

One push button

Powered with CR2032 battery

Software adjustable transmitter power (0dBm and -20dBm) for short to long range applications.

Ultra low power consumption

Firmware updates Over-the-Air (OTA).

Specification :

Advertising Typei BeaconEddystoneSensor

Advertising intervalconfigurable, 100 ms to 1285 msconfigurable, 100 ms to 1285 msconfigurable, 100 ms to 1285 ms,

in motion : 1285ms Sensor, 5140ms i Beacon

still: 620ms Sensor, 2500ms i Beacon

ButtonPress to start/stop advertisingNo effectNo effect

Motion SensorIf second UUID is not empty, advertise second UUID when moveNo effectKeep working

Temperature SensorNo effectNo effectKeep working

Package includeds :

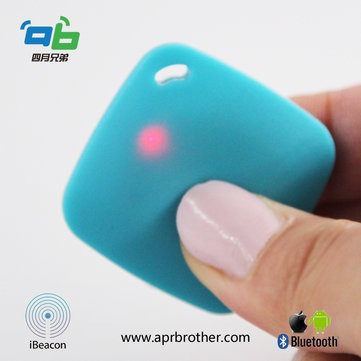

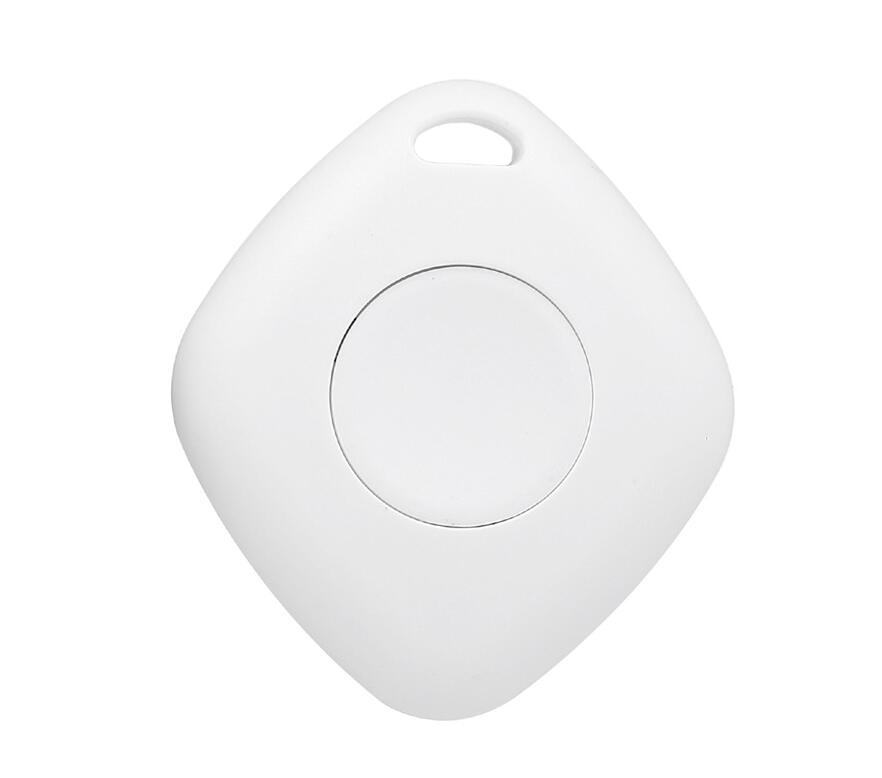

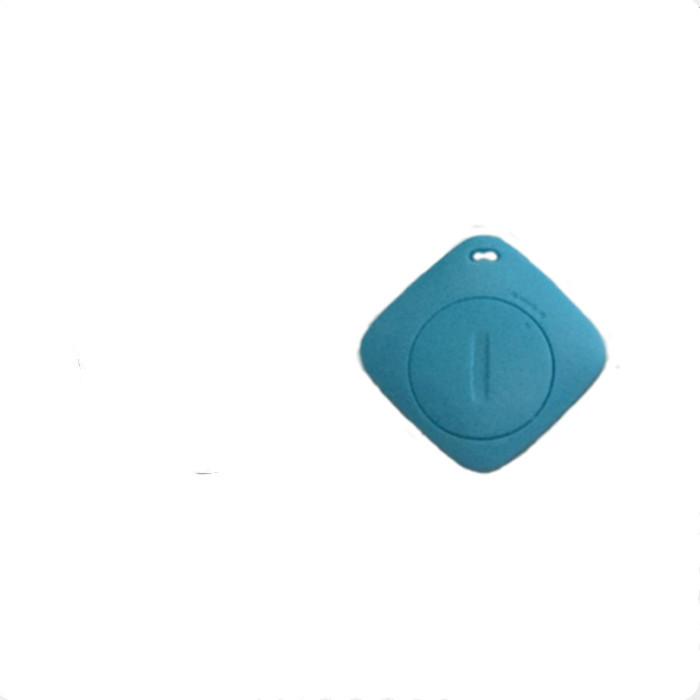

1 x Bluetooth i beacon
