Blustream Digital Audio Over CAT

Blustream Digital Audio Over CAT

Hurry! 5 items left!

$299

Collect 299 Everyday Rewards points

Free Shipping

Sold & shipped by MAD Electronics Australia

Secure ways to pay at checkout

(0)

Blustream Digital Audio Over CAT - CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.

Features:

Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable

Both optical and coaxial digital can be distributed at the same time

Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)

Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution

Ultra low jitter and high fidelity design

*CAT100AU supports distances of up to: 192kHz - 100m; 96kHz - 150m; < 48kHz - 300m

In the box:

1 x CAT100AU-TX

1 x CAT100AU-RX

1 x 5V/1A DC Power Supply

1 x Mounting Kit

1 x User Manual

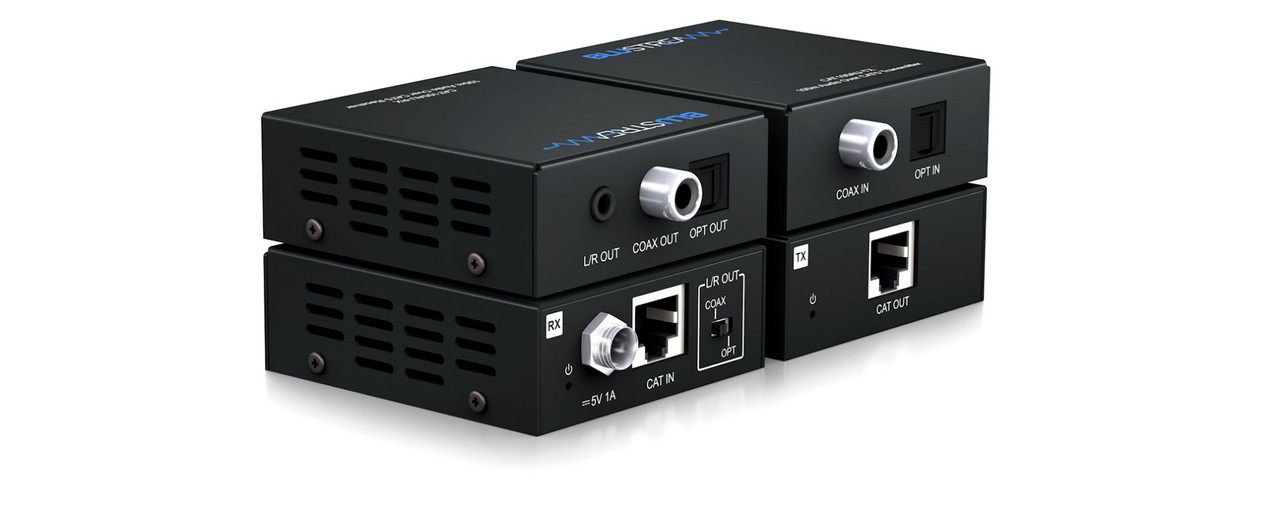

CAT100AU-TX:
* Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
* Output Connectors: 1 x RJ45

CAT100AU-RX:
* Input Connectors: 1 x RJ45 & 5V/1A DC
* Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
* Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
* Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
* Ind. Balun Weight: 0.13kg (excluding accessories)
* Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
* Shipping Weight: 0.6kg
* Operating Temperature: 32oF to 104oF (0oC to 40oC)
* Storage Temperature: -4oF to 140oF (-20oC to 60oC)
* Power Supply: 5V/1A DC, barrel type connector
* Power supplied to the transmitter unit from the receiver
