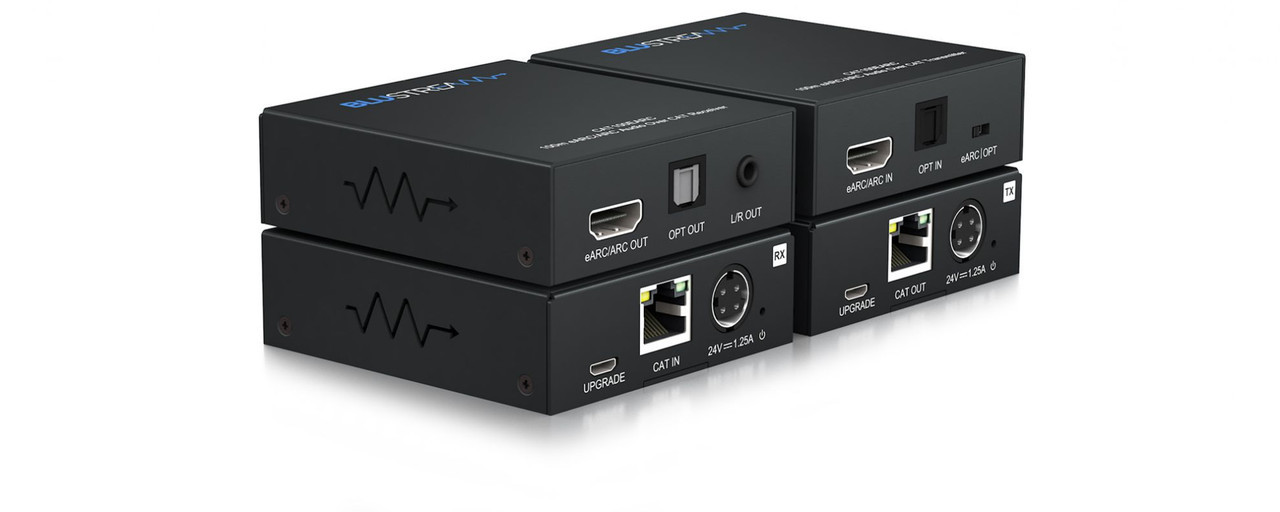

Blustream eARC/ARC Over CAT

Image 1
Hurry! 2 items left!
$399

Collect 399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout
Pay in 4 interest-free payments of $99.75 with Learn More

Blustream eARC/ARC Over CAT - CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m). This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.


Features:



  • Extend either eARC/ARC or optical digital audio signals over a single CAT cable*

  • CAT100EARC supports eARC/ARC distribution distances of up to 100m

  • CAT100EARC supports Optical audio distribution distances of up to 200m

  • Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*

  • Supports CEC pass-through when HDMI eARC/ARC mode selected

  • Supports the following audio formats:

    • eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos

    • ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

    • Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch


  • Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver


*Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX


In the Box:



  • 1 x CAT100EARC-TX

  • 1 x CAT100EARC-RX

  • 1 x 24V/1.25A DC power supply

  • 1 x Mounting kit

  • 1 x Quick Reference Guide



CAT100EARC-TX:
* Audio Input Connectors: 1x Optical (S/PDIF) & 1x HDMI Type A
* Output Connectors: 1x RJ45
* Firmware Upgrade: 1x Micro-USB
* Dimensions (W x H x D): 74mm x 80mm x 24mm

CAT100EARC-RX:
* Input Connectors: 1x RJ45 & 5V/1A DC
* Output Connectors: 1x Optical (S/PDIF), 1x HDMI Type A & 1x Analogue audio L/R (3.5mm stereo Jack)
* Firmware Upgrade: 1x Micro-USB
* Dimensions (W x H x D): 74mm x 80mm x 24mm
* Shipping Weight: 0.7kg
* Operating Temperature: 32oF to 104oF (-5oC to +55oC)
* Storage Temperature : -4oF to 140oF (-25oC to +70oC)
* Power Supply: 24V/1.25A DC

MPN: 17BSCAT100EARC
