New in box. Been in storage for a while.
Comes with a copied instruction manual and all accessories.

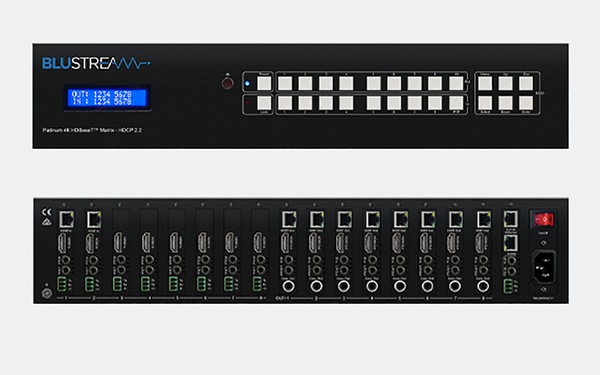

Blustream Platinum Matrix
Model PLA88ARC
Blustream PLA88ARC Platinum 4K HDBaseT™ Matrix delivers HDMI, Bi-directional IR, RS-232 and PoH(PoE) up to 100 meters with ARC (Audio Return Channel) feature.
Platinum 8x8 HDBaseT™ Matrix delivers a range of industry leading features. The PLA88ARC is a 4K 8x8 matrix, transmitting HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 100m over a single CAT cable. The matrix also provides advanced features including independent audio matrix, simultaneous HDBaseT™ & HDMI outputs, two HDBaseT inputs and HDMI audio breakout and audio de-embedding. The PLA88ARC matrix is a HDBaseT™ class A product and includes additional features such as ARC (audio return channel) and LAN serving via HDBaseT™ over single CAT cable. The matrix can be fully controlled via TCP/IP, RS-232, IR or using the Blustream Software, allowing the user to define audio routing and conversion, designate EDID presets and lip sync control.
Features
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ + HDMI outputs
Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
Inputs 1 & 2 support Dual HDBaseT™ & HDMI to enable integration of remote HDMI sources up to 100m distance (4K up to 70m)
Up to 24x16 Audio Matrix independently controllable from video media
8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™ / HDMI outputs
HDMI audio breakout to Coaxial digital and analogue L/R audio outputs
Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible HEX100ARC-RX receivers
Extends HDMI up to distances of 100m over single CAT cable
Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Integrated Ethernet switch (LAN serving) when used with Blustream HEX100ARC-RX receivers. HEX100ARC-RX features a 3-port Ethernet switch
Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
Bi-directional IR from all input and output locations
Supplied with Blustream IR receivers, emitters and RS-232 control cable
Control of Matrix via front panel, IR, RS-232 and TCP/IP
Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ transmitters & receivers
3rd Party drivers available for all major home control brands
Advanced EDID management
HDCP compliant
2U Design for 19" rack mount integration - mounting kit included
Specifications
Video Input Connectors: 8 x HDMI Type A, 19-pin, female, locking, 2 x HDBaseT™ RJ45 connector
Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking,8 x HDBaseT™ RJ45 connector
Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
Audio Output Connectors: 8x RCA (SPDIF), 8 x 3.5mm stereo jack (L/R)
RS-232 serial ports: 9 x 3-Pin Phoenix connector
TCP/IP Control: RJ45, female
Ethernet / Network: RJ45, female
IR Input ports: 9 x 3.5mm stereo jack
IR Output ports: 9 x 3.5mm mono jack
Rack-Mountable: 2U rack height, rack ears included
Casing Dimensions (WxHxD): 440mm x 87mm x 361m, without feet
Shipping Weight: 8.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: internal 100-240v DC
Specifications:
Video Input Connectors: 8 x HDMI Type A, 19-pin, female, locking, 2 x HDBaseT™ RJ45 connector
Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking,8 x HDBaseT™ RJ45 connector
Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
Audio Output Connectors: 8x RCA (SPDIF), 8 x 3.5mm stereo jack (L/R)
RS-232 serial ports: 9 x 3-Pin Phoenix connector
TCP/IP Control: RJ45, female
Ethernet / Network: RJ45, female
IR Input ports: 9 x 3.5mm stereo jack
IR Output ports: 9 x 3.5mm mono jack
Rack-Mountable: 2U rack height, rack ears included
Casing Dimensions (WxHxD): 440mm x 87mm x 361m, without feet
Shipping Weight: 8.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: internal 100-240v DC Shipping Details
