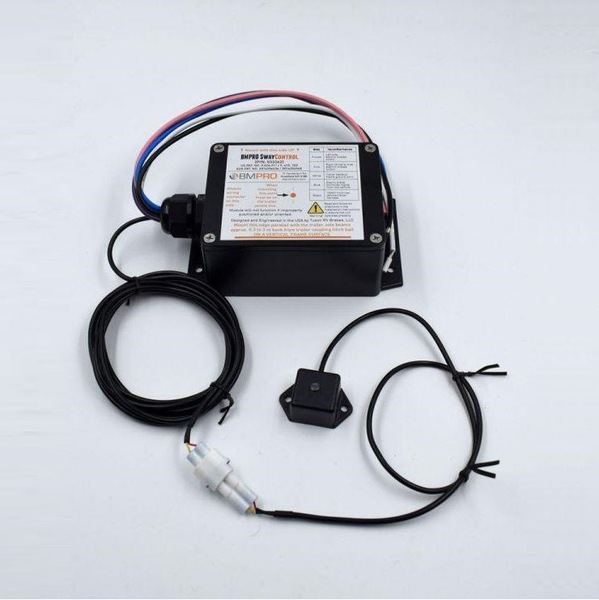

BMPRO SwayControl with Loom Proactive Electronic Stability Control

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 7 items left!
$1249

Collect 1249 Everyday Rewards points

Log in to MyDeal to link your card
$50.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by RV Online
Secure ways to pay at checkout

TOW SAFELY WITH PROACTIVE ELECTRONIC SWAYCONTROL.

BMPRO SwayControl is a proactive electronic stability control that can automatically stabilise a caravan/trailer in the event of its sway. It automatically corrects caravan/trailer sway which can be caused by changing road conditions, driver error, lateral winds or a passing truck keeping drivers safe on the road.

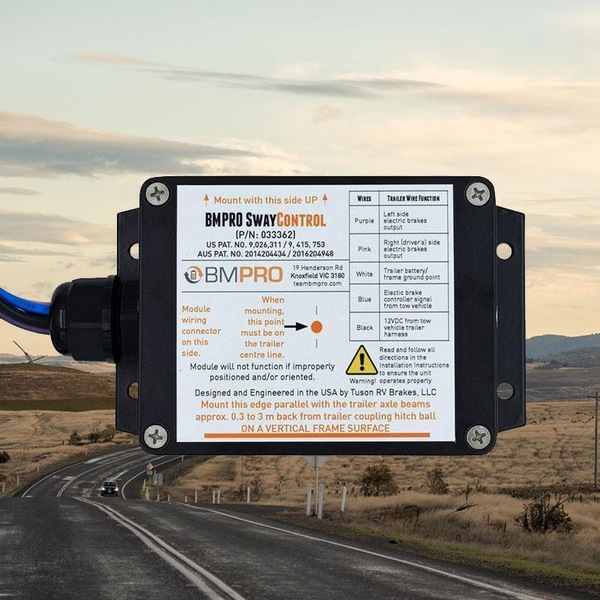

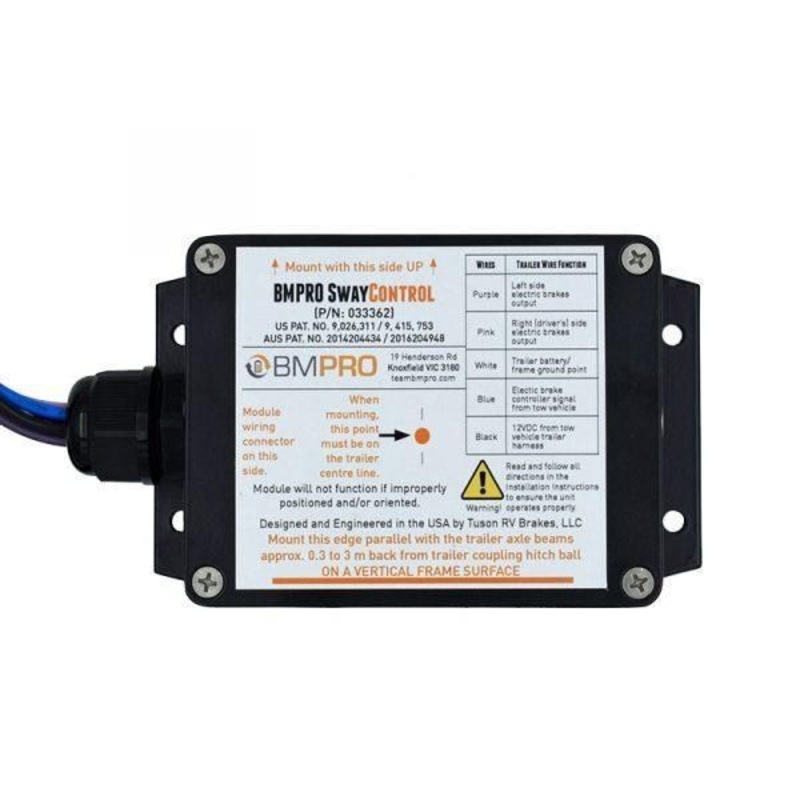

Electronic sway control is mounted on the underside of the caravan/trailer chassis, wires directly to the trailer braking system and continuously monitors trailer yaw to detect sway. In the event that sway is detected the SwayControl automatically activates the caravan/trailer brakes to bring both it and the vehicle under control.

SwayControl distinguishes between safe maneuvering and dangerous trailer sway and does not require driver intervention.
With independent control of left and right-hand side trailer brakes and continual closed-loop feedback, the SwayControl quickly and effectively applies the necessary braking force, to the side of the trailer where it is needed to correct trailer sway.

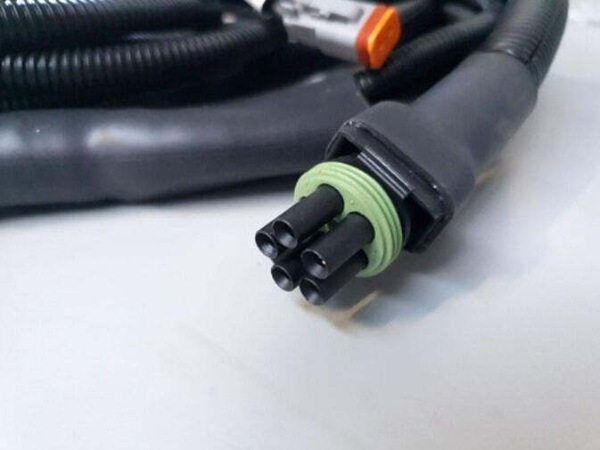

Prewired looming to enable an easy installation and also integration with the BMPRO Trailsafe Emergency Braking system is supplied with the electronic SwayControl.

Features:

  • Automatically adjusts braking level
  • Applies braking force on the left & right brakes independently
  • Works with single to four axle caravans/trailers
  • Features an automatic system disabling in off-road conditions
  • Is fully sealed, waterproof and 100% tested for reliability
  • Wiring looming included for the easy installation
  • This device must be fitted by a trained and authorised installer


SPECIFICATIONS:

  • System Voltage: 12V to 15V
  • Power Source: Caravan/trailer house battery
  • Current Draw (Sleep Mode): 35mA ± 2%
  • Sleep Mode: After 30 minutes of inactivity
  • Wake-up Mode: Brake controller signal
  • Preprogramming: No
  • Auto System Disable (ASD): Yes
  • Off-road Deactivation: Automatic
  • Braking Level Adjustment: Automatic
  • Braking Levels: Independent left/right
  • Maintenance: None
  • Status Indicator: LED
  • Dimensions: 146mm x 89mm x 55mm
