Boswell Pulsing Aluminium ACDC TIG Welder 200A

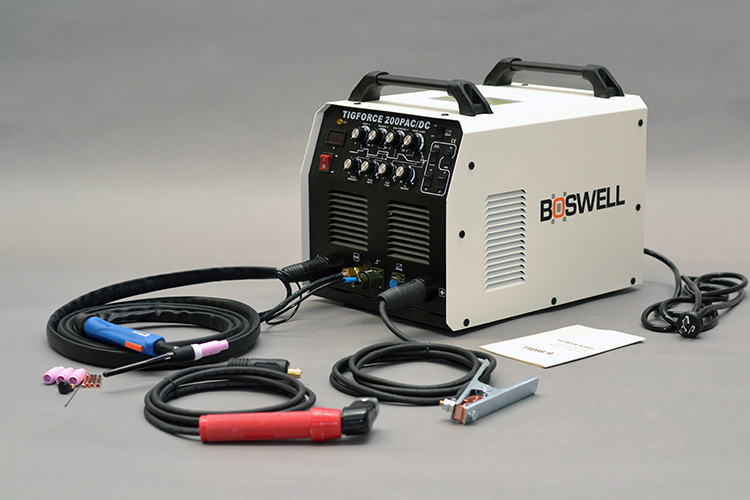

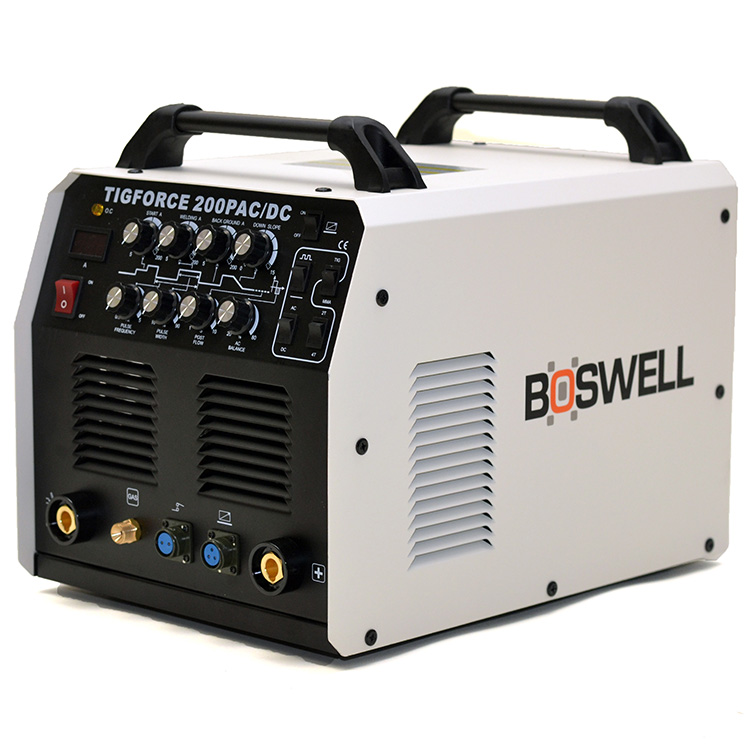

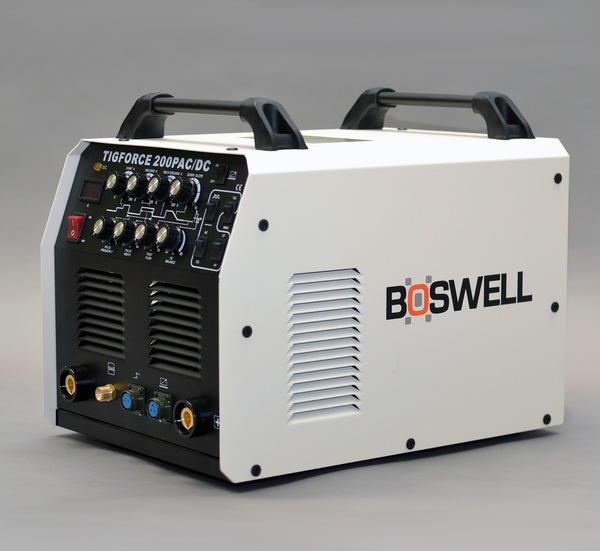

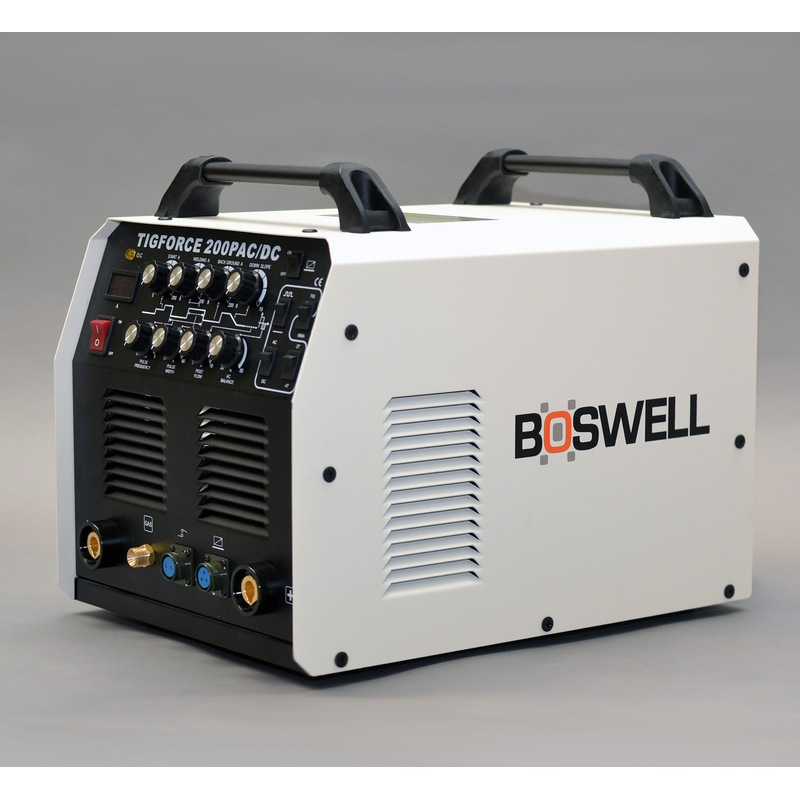

The new Boswell Tigforce 200PAC/DC is a portable industrial grade TIG and MMA inverter welding machine. It features superior TIG welding with amperage range of 5-200 amps and provides the ability to weld thin sheet metal and the extra amperage capacity to weld thicker metal. It has fully adjustable pulse duty and pulse frequency to enhance performance and result when welding thinner material.

Specifications:

• Boswell Pulsing Aluminium TIG Welder ACDC 200A
• Generator friendly
• Fully adjustable pulsing control
• Fully adjustable Down Slope and Post Flow Time
• Low Amperage Setting
• AC Balance Control
• AC/DC Functionality
• Single-Phase 240v Inverter Technology
• 2T/4T Trigger Function
• HF Arc Starting
• MMA Function
• Technical Specifications:
• Model: TIGFORCE 2OOPAC/DC
• Power voltage: 1 phase AC240V +/- 15%
• Frequency [Hz]: 50/60
• Rated input current[A]: TIG:32.5 MMA: 43.5
• Output current [A]: 10 - 200
• No-load voltage [V]: 44
• Rated output voltage [V]: TIG: 18 MMA: 28
• AC duty cycle(%): 20 - 80
• Pulse duty cycle(%): 10 - 90
• Post flow time [S]: 1 - 10
• Pulse frequency [Hz]: 0.5 - 5.0
• Basic value current [A]: 5 - 200
• Arc initiation current [A]: 5 - 200
• Down slope time [S]: 0 - 1 5
• Remote control: Yes
• Arc initiation way: HF
• Frequency (%): 80
• Duty cycle (%): 60
• Power factor: 0.73
• Insulation grade: F
• Protection grade: IP21
• Weight (kg): 20
• Dimensions [mm]: 498 x 328 x 302
• Max thickness [mm]: 10

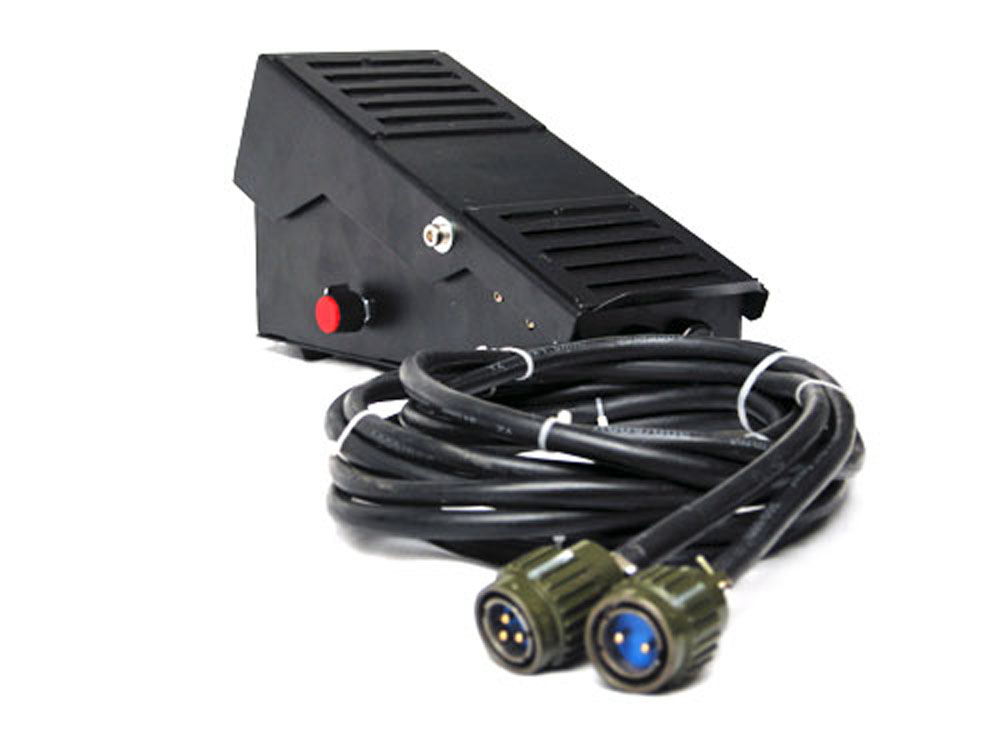

• Also available with a pedal (HERE)
• 12 month warranty

Estimated Delivery Time Frame: 7-14 business days
