Sold & shipped by Boswell Industry Australia

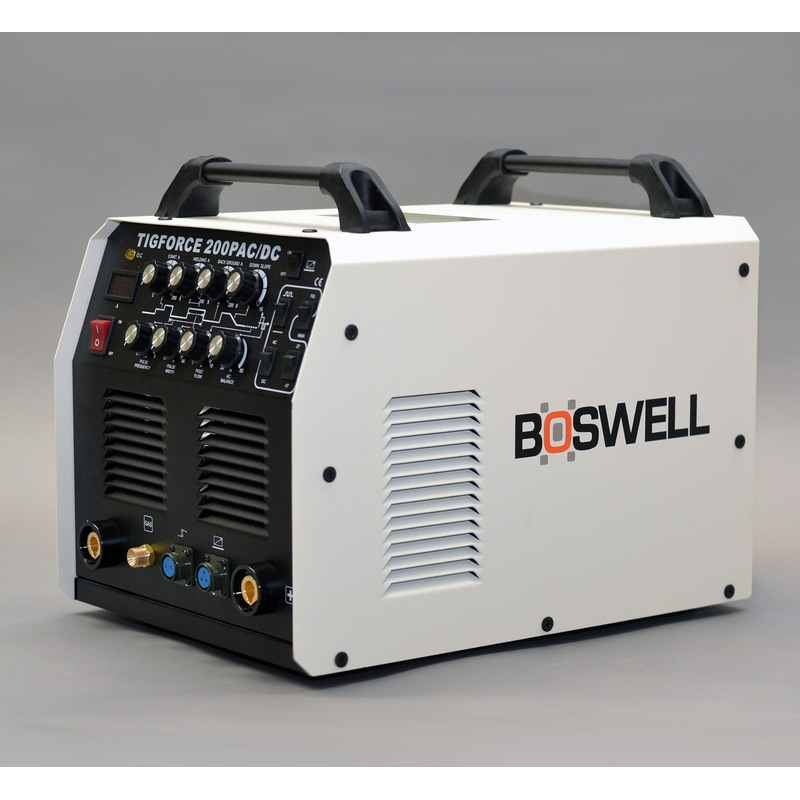

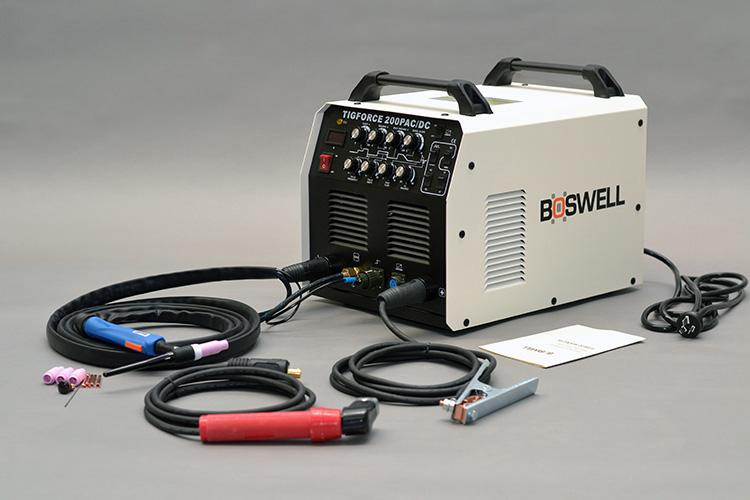

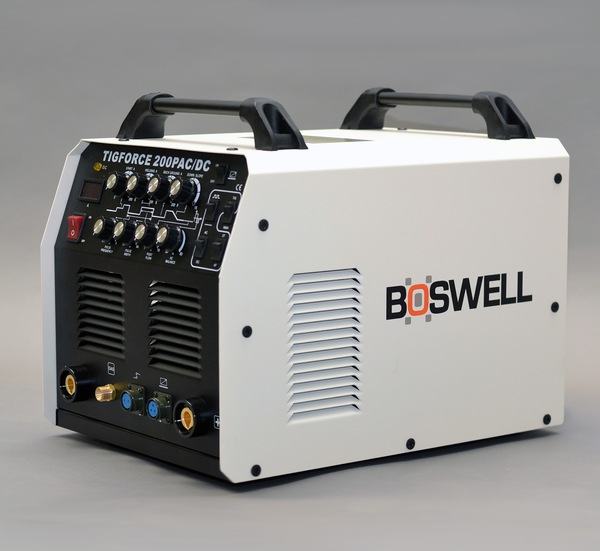

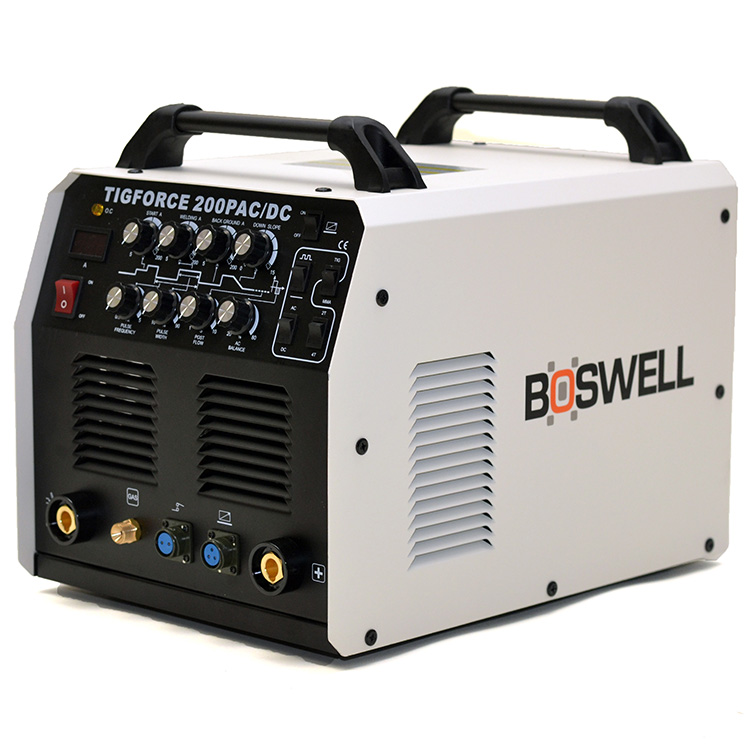

The new Boswell Tigforce 200PAC/DC is a portable industrial grade TIG and MMA inverter welding machine. It features superior TIG welding with amperage range of 5-200 amps and provides the ability to weld thin sheet metal and the extra amperage capacity to weld thicker metal. It has fully adjustable pulse duty and pulse frequency to enhance performance and result when welding thinner material. Comes with a remote foot control that provides smoother and easier running.
Specifications:
- Boswell Pulsing Aluminium TIG Welder ACDC w/ Pedal
- Generator friendly
- Fully adjustable pulsing control
- Fully adjustable Down Slope and Post Flow Time
- Low Amperage Setting
- AC Balance Control
- AC/DC Functionality
- Single-Phase 240v Inverter Technology
- 2T/4T Trigger Function
- HF Arc Starting
- MMA Function

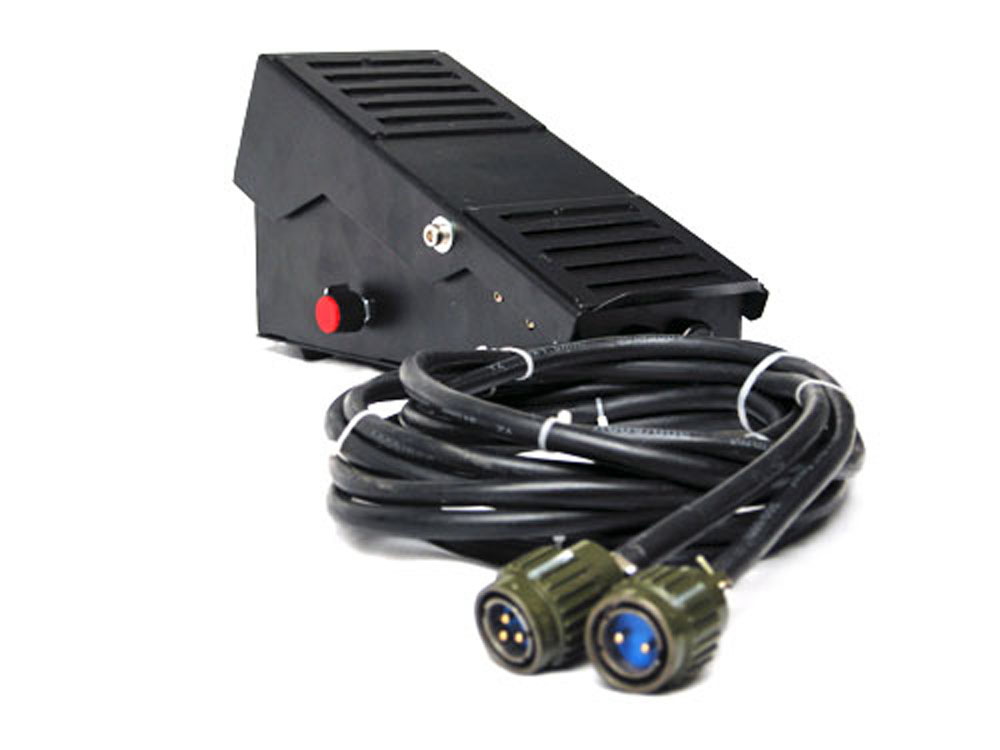

- Foot control pedal
- Technical Specifications:
- Model: TIGFORCE 2OOPAC/DC + PEDAL
- Power voltage: 1 phase AC240V +/- 15%
- Frequency [Hz]: 50/60
- Rated input current[A]: TIG:32.5 MMA: 43.5
- Output current [A]: 10 - 200
- No-load voltage [V]: 44
- Rated output voltage [V]: TIG: 18 MMA: 28
- AC duty cycle(%): 20 - 80
- Pulse duty cycle(%): 10 - 90
- Post flow time [S]: 1 - 10
- Pulse frequency [Hz]: 0.5 - 5.0
- Basic value current [A]: 5 - 200
- Arc initiation current [A]: 5 - 200
- Down slope time [S]: 0 - 1 5
- Remote control: Yes
- Arc initiation way: HF
- Frequency (%): 80
- Duty cycle (%): 60
- Power factor: 0.73
- Insulation grade: F
- Protection grade: IP21
- Weight (kg): 20
- Dimensions [mm]: 498 x 328 x 302
- Max thickness [mm]: 10
- Also available without a pedal (HERE)
- 12 month warranty
SKU: TIGFORCE_200PACDC+PEDAL
Reference ID: 181521
