Boya BY-AM1 Dual Channel Audio Mixer Phamtom Power To Microphones

Image 1
Image 2
Image 3
Image 4
Hurry! 2 items left!
$149

Collect 149 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Pay in 4 interest-free payments of $37.25 with Learn More
Dual-Channel Audio Mixer
  • Dual-channel audio mixer
  • Ideal for dynamic/condenser XLR mics, line-level or instrument signals
  • Compatible with computers, laptops, speakers
  • No-latency headphone monitoring
  • Includes 6.35mm to 3.5mm TRRS adapter

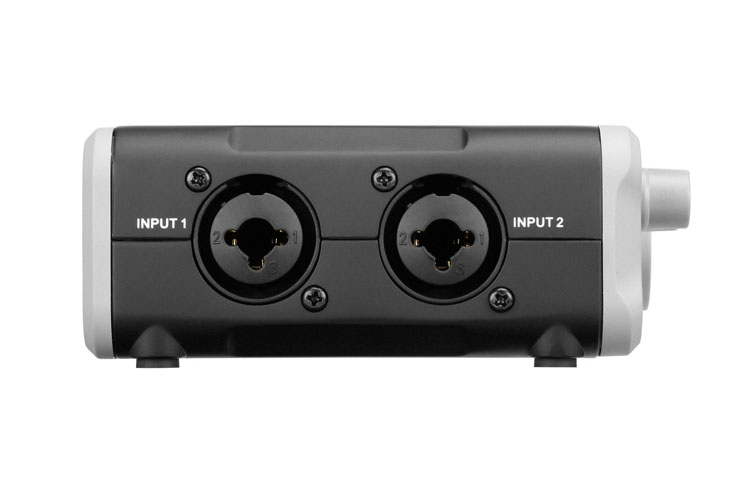

  • 6.35mm/XLR combo inputs

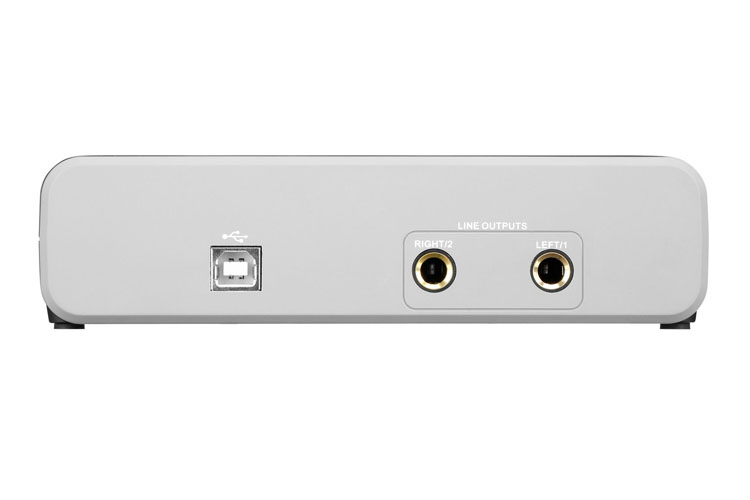

  • 6.35mm audio outputs
  • USB 2.0 connection
  • Supply 48V phantom power via XLR input
  • 1/4"threaded hole for tripod mounting





  • General
  • Compatibility - Computers, laptops, speakers
  • Gain Range - Line Inputs: 50dB
  • Impedance - Line Inputs: 47K Ohm
  • Sampling Rates - Headphone outputs: 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz
  • USB Connection - Headphone outputs: USB 2.0(USB-B connector)
  • Power Requirements - Headphone outputs: Powered by computers
  • Power Supply - Headphone outputs: 48V Phantom Power
  • Dimensions - 6.3 x 4.1 x 1.6" (160 x 105 x 41.5mm)
  • Weight - 1.44 oz (408.5g)

  • Frequency Response
  • Microphone Inputs - 20Hz-20kHz +/-0.1dB
  • Line Inputs - 20Hz-20kHz +/-0.1dB
  • Instrument inputs - 20Hz-20kHz +/-0.1dB
  • Headphone outputs - 75dB
  • Line/monitor outputs - 80dBU

  • THD
  • Headphone outputs - <0.01%
  • Line/monitor outputs - <0.01%

  • S/N
  • Headphone outputs - 6dBu
  • Line/monitor outputs - 10dBu

  • Maximum Input Level
  • Microphone Inputs - 9dBu(at minimum gain)
  • Line Inputs - 15dBu(at minimum gain)
  • Instrument inputs - 8dBu(at minimum gain)
  • Headphone outputs - <10 Ohm
  • Line/monitor outputs - 470 Ohm


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 6971008027624
