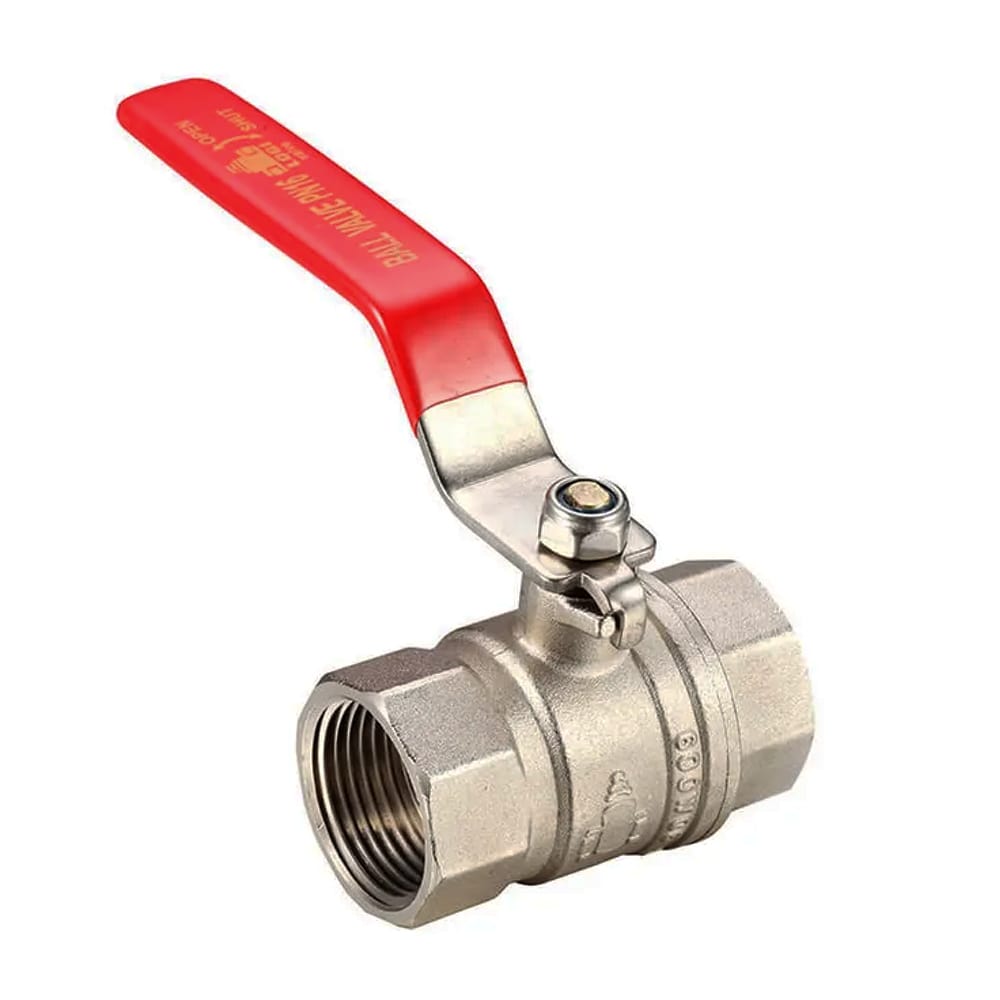

Brass Ball Valve General Purpose F/F - BSP Thread

Image 1
Hurry! 11 items left!
From$7.36

Collect 7 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

Brass Ball Valve General Purpose F/F BSP Thread


Brass Ball Valve General Purpose key Features



  • Brass Ball Valve

  • Stainless Steel Handle

  • Full Bore

  • Blow proof spindle

  • 100% Pressure Tested

  • Working temperature 1 to 120 deg C

  • Maximum pressure rating 1600kpa


















































MATERIAL LIST
PARTS MATERIAL
Body Brass
Seal PTFE
Ball (15-40mm) Brass
Ball (50-100mm) Stainless Steel
Bonnet Brass
Spindle (15-40mm) Brass
Spindle (50-100mm) Brass
O Ring HNBR
Handle Staniless Steel
Lock Nut Stainless Steel






























































































































BRASS - GENERAL PURPOSE BALL VALVE F/F
SKU IMPERIAL SIZE (TH) L1 (mm) H1 (mm) H2 (mm) L2 (mm) W (mm) Weigh (kg)
8001.01.08 1/4 47 46 44 88 20 0.14
8001.01.10 3/8 47 50 44 88 20 0.14
8001.01.15 1/2 51 51 45 90 25 0.20
8001.01.20 3/4 55 58 48 101 30 0.30
8001.01.25 1 64 72 62 122 38 0.43
8001.01.32 1 1/4 80 81 70 122 45 0.74
8001.01.40 1 1/2 92 90 77 140 53 1.10
8001.01.50 2 108 110 85 140 67 1.72
8001.01.65 2 1/2 143 137 110 232 82 3.48
8001.01.80 3 187 163 122 232 95 5.02
8001.01.94 4 193 187 150 226 160 8.04
