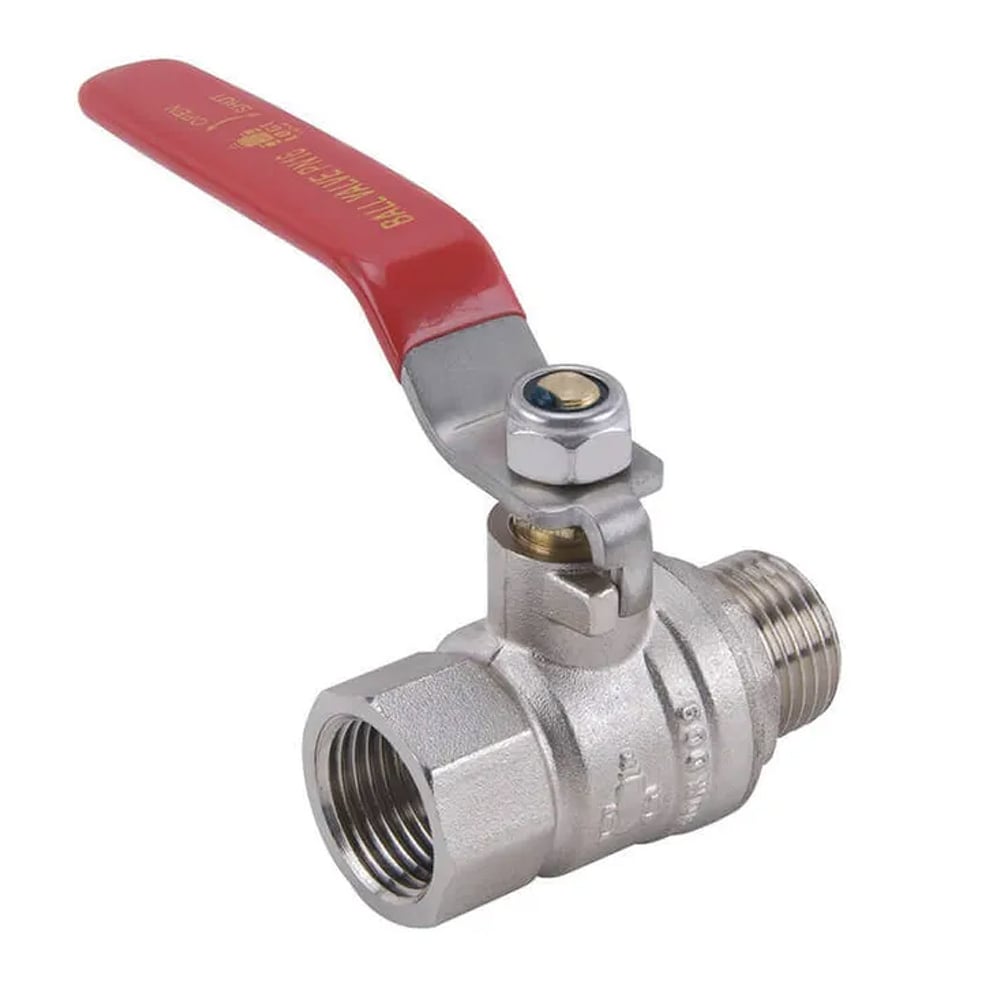

Brass Ball Valve General Purpose M/F - BSP Thread

Image 1
Hurry! 6 items left!
From$10.04

Collect 10 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

Brass Ball Valve General Purpose M/F BSP Thread


Brass Ball Valve Key Features



  • Brass Ball Valve

  • Stainless Steel Handle

  • Full Bore

  • Blow proof spindle

  • 100% Pressure Tested

  • Working temperature 1 to 120 deg C

  • Maximum pressure rating 1600kpa


















































MATERIAL LIST
PARTS MATERIAL
Body Brass
Seal PTFE
Ball (15-40mm) Brass
Ball (50mm) Stainless Steel
Bonnet Brass
Spindle (15-40mm) Brass
Spindle (50mm) Brass
O Ring HNBR
Handle Staniless Steel
Lock Nut Stainless Steel












































































BRASS - GENERAL PURPOSE BALL VALVE M/F
SKU IMPERIAL SIZE (TH 1 & 2) L1 (mm) H1 (mm) H2 (mm) L2 (mm) W (mm) Weigh (kg)
8001.02.15 1/2 60 50 44 89 25 0.20
8001.02.20 3/4 67 56 48 99 30 0.30
8001.02.25 1 80 67 62 121 37 0.43
8001.02.32 1 1/4 94 83 66 121 45 0.74
8001.02.40 1 1/2 104 94 83 142 53 1.10
8001.02.50 2 118 108 90 142 64 1.72

Estimated Delivery Time Frame:2-7 business days
