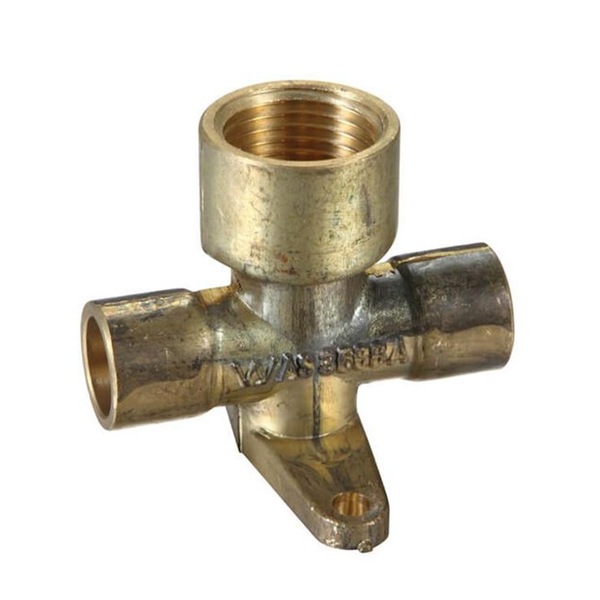

| Brass Capillary Tee Lugged (No. 30BP) X FI BSP | |||||
| SKU | TH1 (mm) | TH2 (Inch) | L (mm) | H (mm) | W (mm) |
| BC-TL015 | 15 | 1/2 | 53 | 46 | 25 |
| BRITISH STANDARD THREADS | ||||||||
| PIPE NOMINAL DIAMETER | APPROX. PIPE OD (TAPERED) | NO. OF THREAD PER INCH | PITCH | DEPTH OF THREAD | DIAMETER OF GAUGE PLANE | LENGHT OF USEFUL THREAD | ||
| IMPERIAL SIZE | METRIC | MIN (mm) | MAX (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/8 | 6 | 8.565 | 9.728 | 28 | 0.907 | 0.581 | 9.72 | 6.5 |
| 1/4 | 8 | 11.445 | 13.157 | 19 | 1.337 | 0.856 | 13.15 | 9.7 |
| 3/8 | 10 | 14.95 | 16.662 | 19 | 1.337 | 0.856 | 13.66 | 10.1 |
| 1/2 | 15 | 18.633 | 20.955 | 14 | 1.814 | 1.182 | 20.95 | 13.2 |
| 3/4 | 20 | 24.12 | 26.441 | 14 | 1.814 | 1.182 | 26.44 | 14.5 |
| 1 | 25 | 30.292 | 33.249 | 11 | 2.309 | 1.479 | 33.24 | 16.8 |
| 1 1/4 | 32 | 39.953 | 41.91 | 11 | 2.390 | 1.479 | 41.91 | 19.1 |
| 1 1/2 | 40 | 44.846 | 47.803 | 11 | 2.309 | 1.479 | 47.8 | 19.1 |
| 2 | 50 | 56.657 | 59.614 | 11 | 2.309 | 1.479 | 47.8 | 19.1 |
| 2 1/2 | 65 | 72.227 | 75.184 | 11 | 2.309 | 1.479 | 59.61 | 23.4 |
| 3 | 80 | 84.927 | 87.884 | 11 | 2.309 | 1.479 | 75.18 | 26.7 |
| 4 | 100 | 110.073 | 113.03 | 11 | 2.309 | 1.479 | 113.03 | 35.8 |
| 5 | 125 | 135.472 | 138.43 | 11 | 2.309 | 1.479 | 138.43 | 40.1 |
| 6 | 150 | 160.872 | 163.83 | 11 | 2.309 | 1.479 | 163.83 | 40.1 |
